Toro 30413 Service Manual

Groundsmaster 4100--D/4110--DHydraulic System Page 4 -- 38

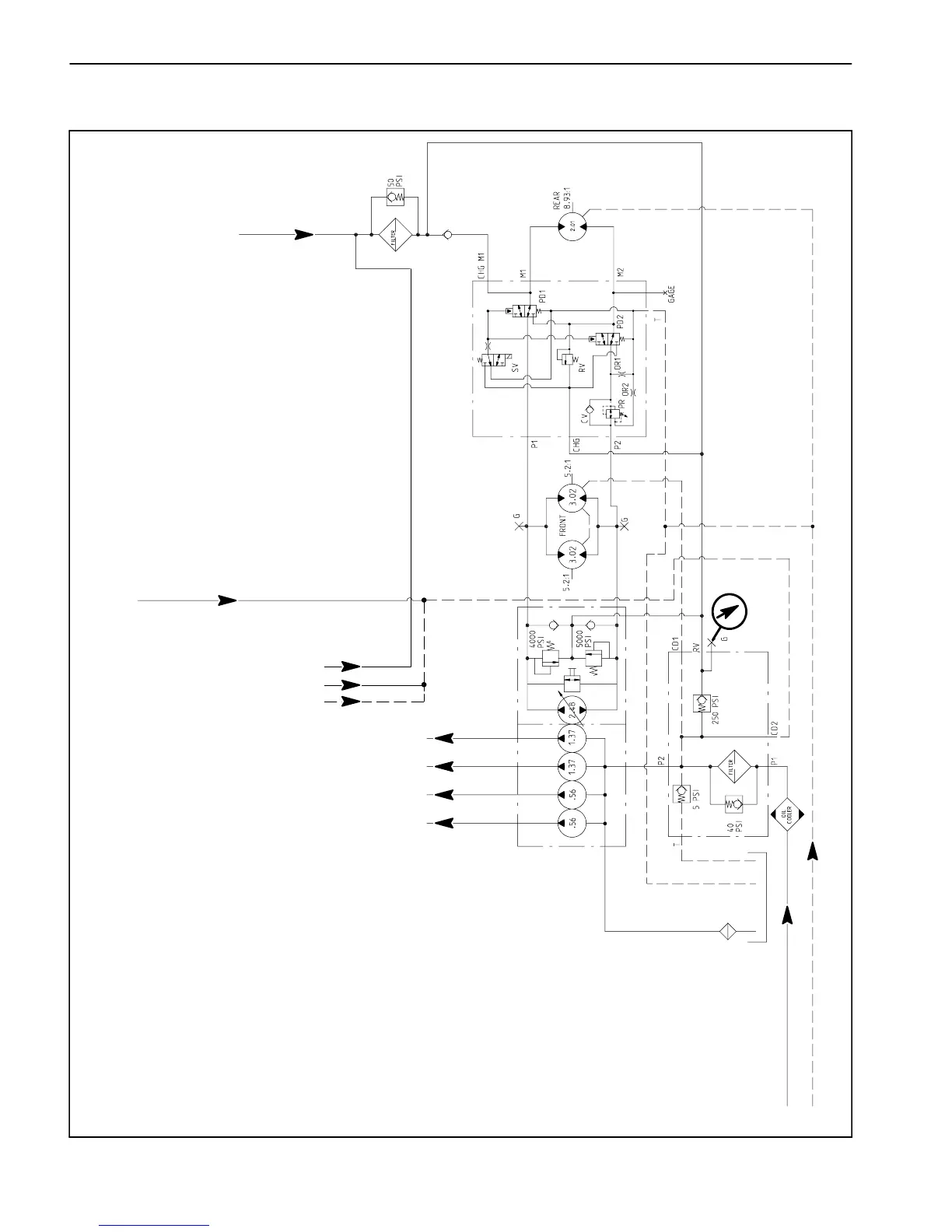

Traction Circuit Charge Pressure (Using Pressure Gauge)
4WD
MANIFOLD
FILTER MANIFOLD
TO COOLING FAN CIRCUIT
TO STEERING & LIFT CIRCUITS
FROM DECK
FROM LIFT/LOWER
MANIFOLD
TO MOW CIRCUIT
LIFT CYLINDERS
FROM FRONT PTO MANIFOLD
FROM STEERING VALVE PORT T
FROM STEERING VALVE PORT PB
PRESSURE
GAUGE
TO MOW CIRCUIT
FROM PTO MANIFOLD
FROM PTO MANIFOLDS AND FAN MOTOR
