g371181

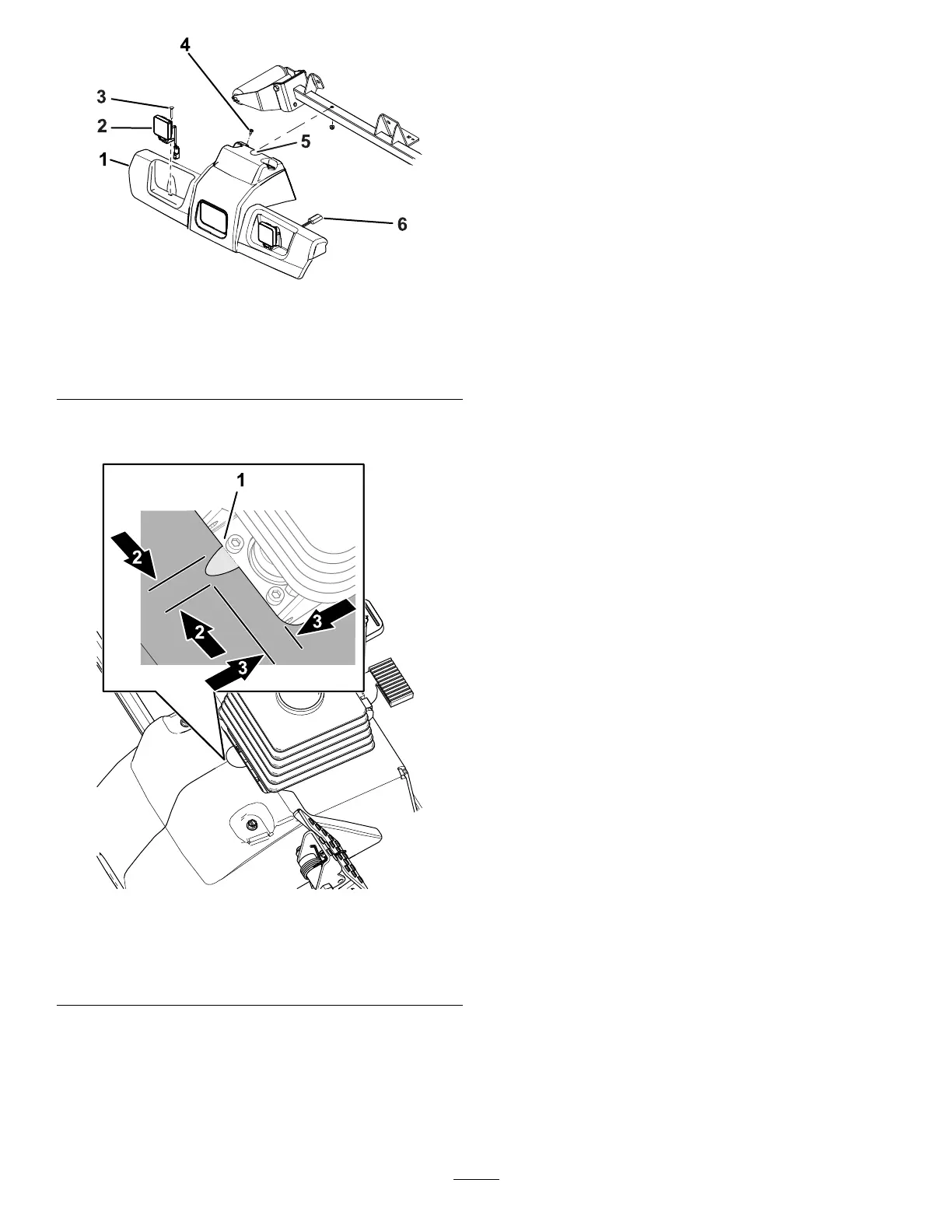

Figure1
1.Platformshroud4.Self-tappingbolt(2)
2.Headlightassembly
5.Createanotchhere.
3.Carriagebolt(2)
6.Headlightconnector
4.Grindanotchinthesteeringcoverasshown
inFigure2.
g384533
Figure2
1.Notch(headlight
assembly)
3.7cm(2-3/4inches)
2.16mm(5/8inch)
5
