Toro Diesel Z Master - Throttle Control Assembly Replacement; Throttle Control Assembly Removal

CHASSIS
3-24 Z580/Z593/Z595 Diesel Service Manual
3
4. Remove the knob from the throttle control assembly
(Fig. 092).
Fig 092 IMG_7888
5. Remove the cable tie securing the throttle cable to
the fuel tank fi tting (Fig. 093).
Fig 093 IMG_7890
Throttle Control Assembly
Replacement
Throttle Control Assembly Removal
The hood assembly has been removed for photo
purposes.
1. Raise the seat.
2. Disconnect the negative battery cable from the
battery terminal.

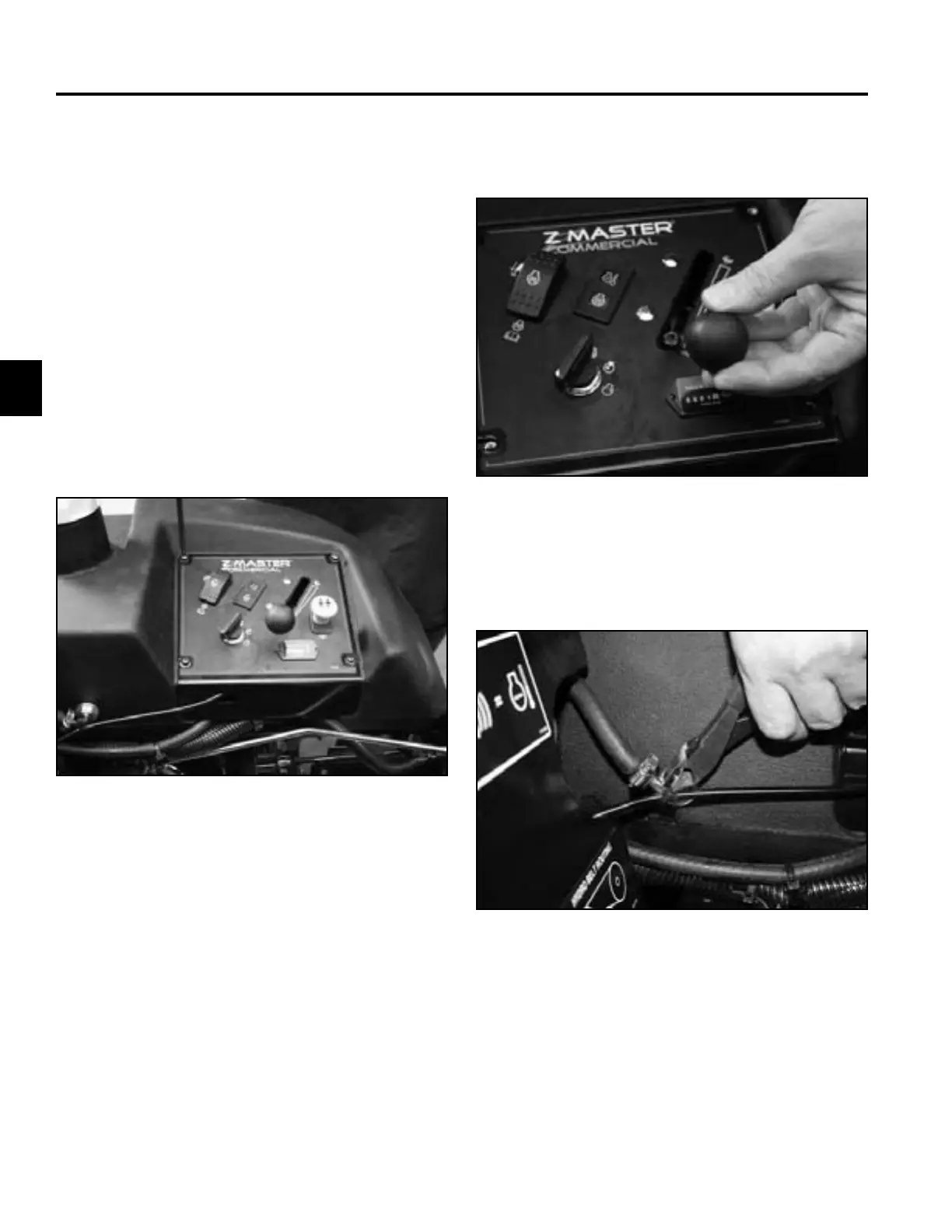

3. Remove the 4 screws securing the control panel to
the left hand fuel tank (Fig. 091).
Fig 091 IMG_7887
