Toro Diesel Z Master - Adjusting the Parking Brake

CHASSIS
3-63Z580/Z593/Z595 Diesel Service Manual
3
Adjusting the Parking Brake
1. Engage the parking brake, lever up.
2. Measure the length of the spring. Measurement
should be 2-1/2” (64mm) between the washers (Fig.
236).

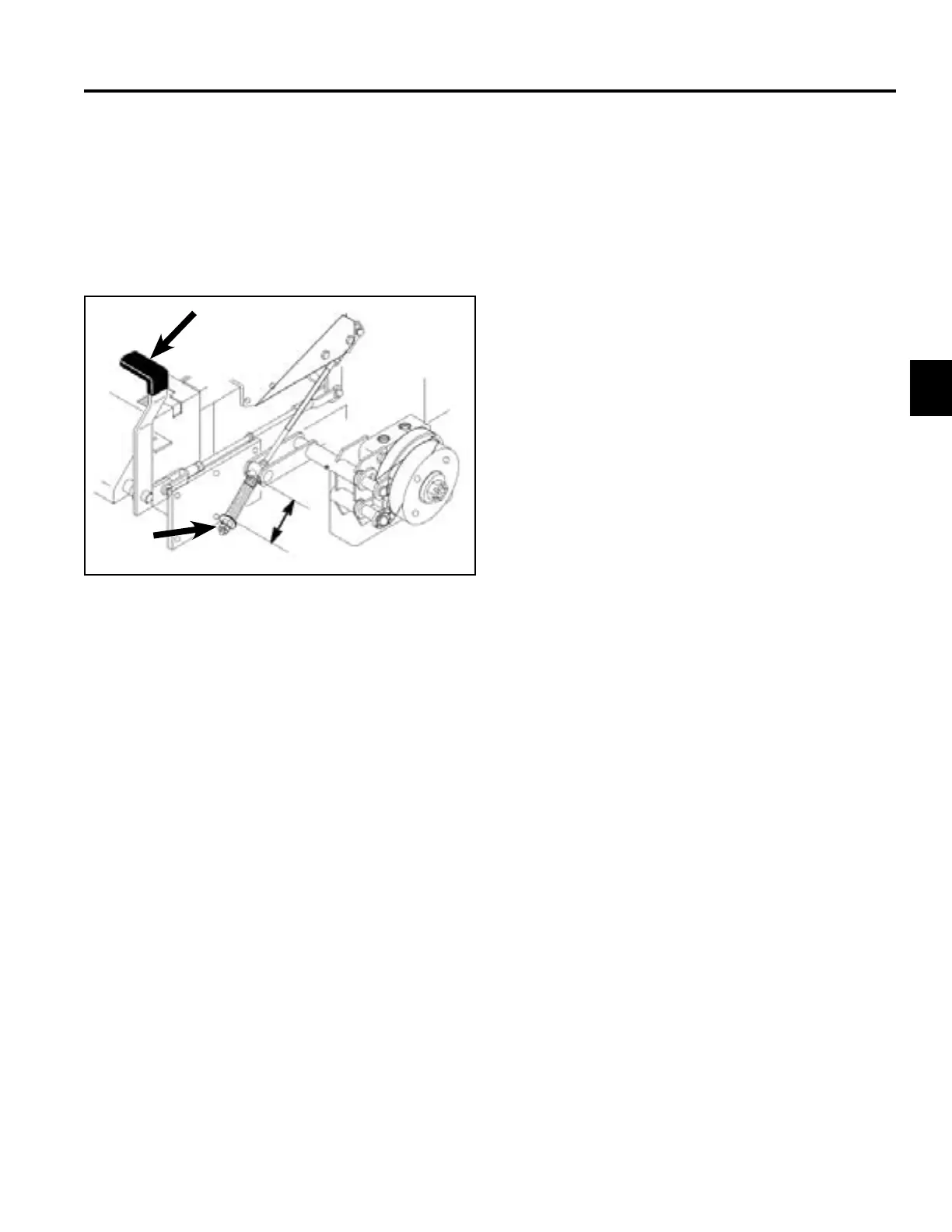

A. Brake lever in B. Spring 2-1/2” (64mm)
engaged position C. Adjusting nut & jam nut
Fig 236 fi g. 57 G001294
3. If adjustment is necessary, release the parking
brake, loosen the jam nut below the spring and ad-
just the nut directly below the spring (Fig. 057). Turn
the nut until the correct measurement is obtained.
Turn the nut clockwise to shorten spring length and
turn counterclockwise to lengthen the spring.
4. Tighten the two nuts together.
5. Engage the parking brake, lever up. Check the
measurement of the spring again.
6. If adjustment is necessary, repeat the procedures
above.
7. Repeat on the opposite side of machine.
A
B
C
