Toro Lawn Master II 53805 - LCD Display Elements; Time and Date Displays; Program and Status Indicators; Schedule and System Indicators

3

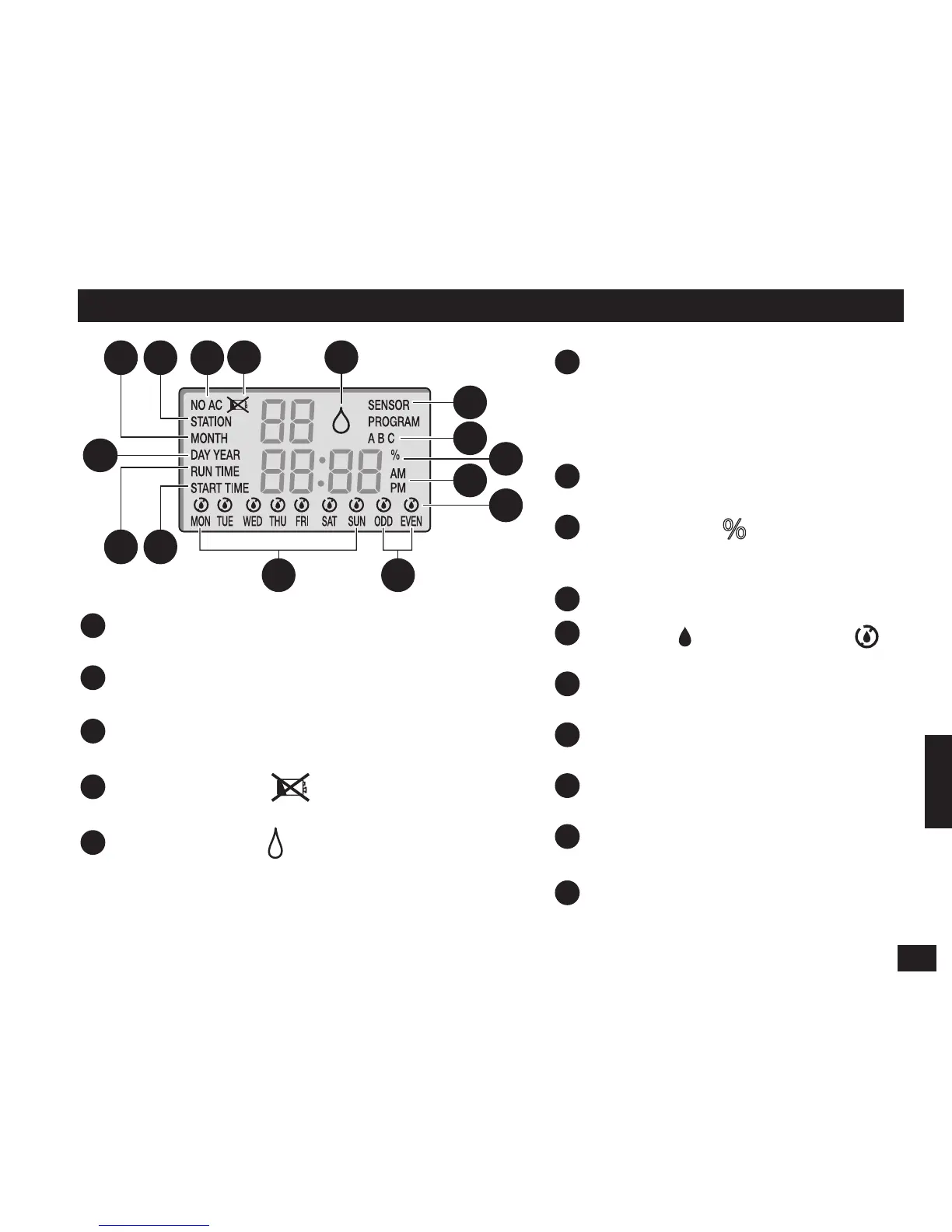

LCD Display Overview
1
MONTH – The flashing 2-digit number
indicates the current month.
2
STATION – Indicates which station number
is selected.
3
NO AC – Flashes when the AC power source is
not detected.
4
Low/No Battery – Indicates the need to
install a new 9-Volt battery.
5
Active Watering – Indicates that a program
or manual operation is currently active.
6
SENSOR – Indicates that the sensor
terminals have been activated. If a
rain sensor (optional) is installed,
SENSOR indicates that rain has been
detected.
7
PROGRAM A, B or C – Indicates
which program is selected.
8
Season Adjust – Indicates that
the automatic programs have been
adjusted.
9
AM or PM indicator.
10
Watering / Non-Watering
icon indicators.
11
DAY – Indicates the current day.
YEAR – Indicates the current year.
12
RUN TIME – Indicates the run time
for the displayed station.
13
START TIME – Indicates the start
time number and duration.
14
Weekdays – for selective watering
schedule.
15
ODD or EVEN watering schedule.
1 2 3 4 5
6
7
8
9
10
11
12 13
1514
