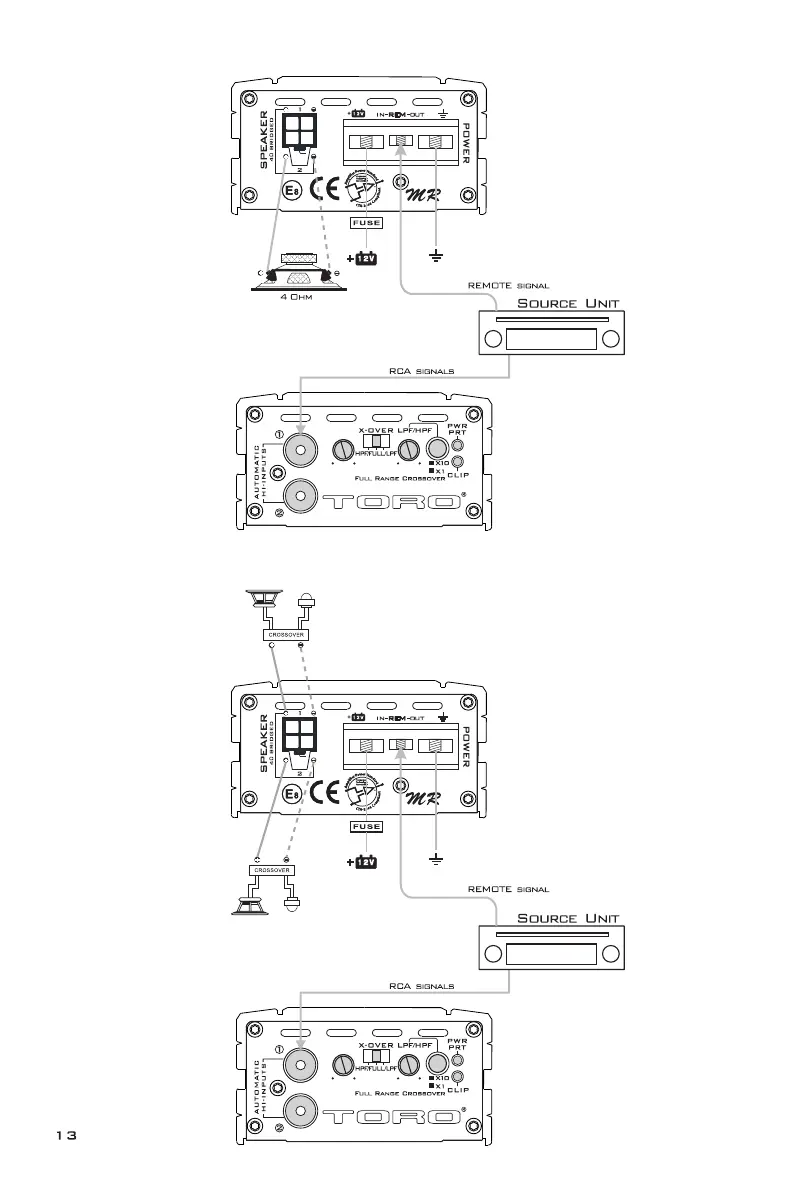

FIG9. (1-CHANNEL MODE)MRX2 AMPLIFIER WIRING
FIG10 MRX2 AMPLIFIER WIRING. (2-CHANNEL MODE)
MIN I M U M I MPEDAN C E F O R
STE R E O I N STALL AT ION IS 2 - O H M
MIN I M U M I MPEDAN C E F O R
BRI D G E D I NSTAL L AT ION I S 4 - O H M
DESIGNED & ENGINEERED IN U.S.A.
10
300Hz
LEVEL
10V 0.2
2 OHM-4 OHM
2 OHM-4 OHM
