6.Removetheblade-brake-clutchshield(Figure37).
7.Brushorblowoutdebrisfromtheinsideoftheshield
andaroundalltheparts.
8.Installtheblade-brake-clutchshieldthatyoupreviously
removed.
9.Installthebladedriveranddiskthatyoupreviously
removed.
10.Installthebladeandthestiffenerthatyoupreviously
removed(Figure37).
11.Installthebladenutsandtorquethemto20to37N∙m
(15to27ft-lb).
AdjustingtheSelf-PropelDrive
Wheneveryouinstallanewself-propelcableorifthe
self-propeldriveisoutofadjustment,adjusttheself-propel
drive.
1.Turntheadjustmentknobcounterclockwisetoloosen
thecableadjustment(Figure38).

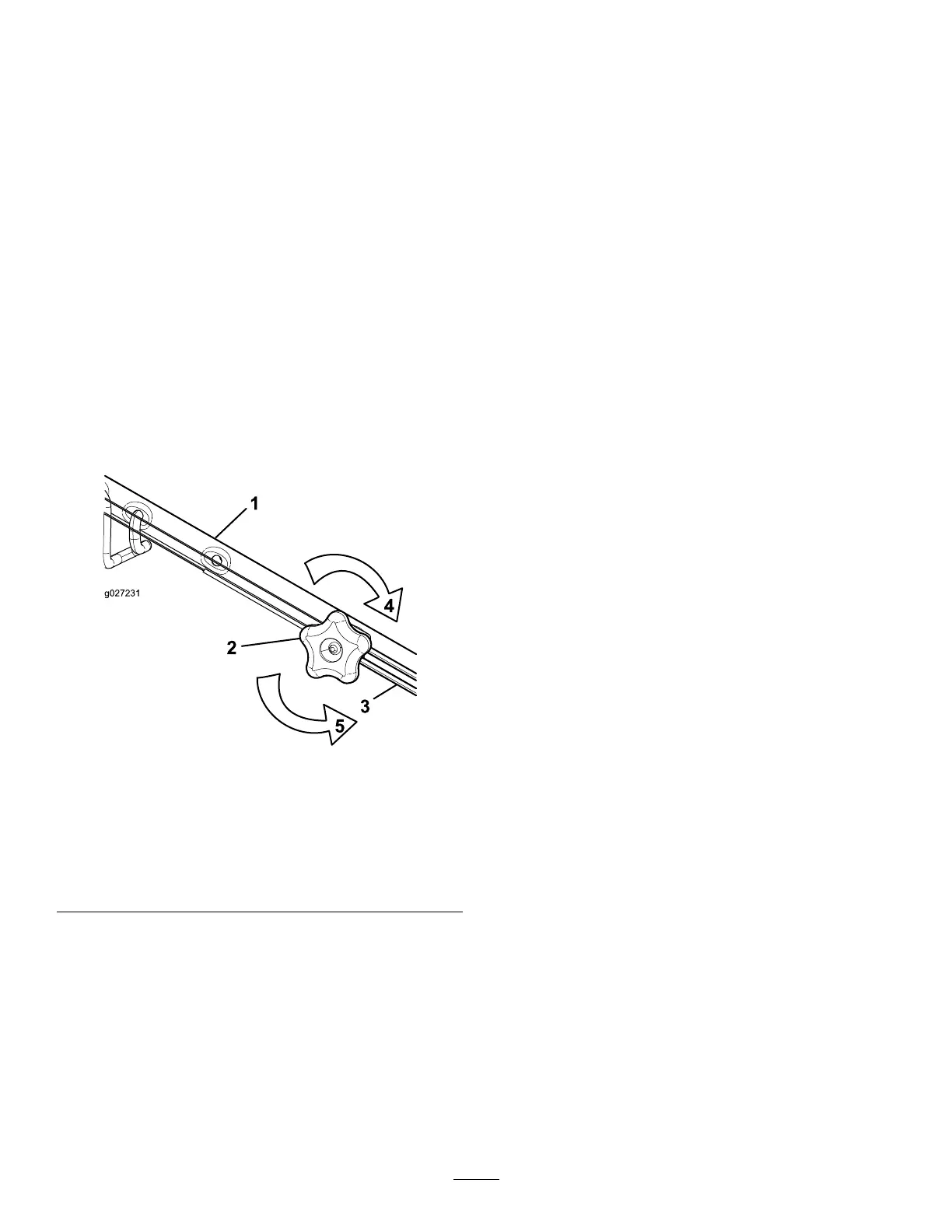

g027231
Figure38
1.Handle(leftside)
4.Turntheknobclockwiseto
tightentheadjustment.
2.Adjustmentknob5.Turntheknob
counterclockwiseto
loosentheadjustment.
3.Self-propel-drivecable
2.Adjustthetensiononthecable(Figure38)bypullingit
backorpushingitforwardandholdingthatposition.
Note:Pushthecabletowardtheenginetoincrease
thetraction;pullthecableawayfromtheengineto
decreasethetraction.
3.Turntheadjustmentknobclockwisetotightenthe
cableadjustment.
Note:Tightentheknobrmlybyhand.
Storage
Storethemachineinacool,clean,dryplace.
PreparingtheMachinefor
Storage
1.Onthelastrefuelingoftheyear,addfuelstabilizer
(suchasToroPremiumFuelTreatment)tothefuel.
2.Disposeofanyunusedfuelproperly.Recycleit
accordingtolocalcodes,oruseitinyourautomobile.
Note:Oldfuelinthefueltankistheleadingcauseof
hardstarting.Donotstorefuelwithoutstabilizermore
than30days,anddonotstorestabilizedfuelmorethan
90days.
3.Runthemachineuntiltheengineshutsofffrom
runningoutoffuel.
4.Starttheengineagain.
5.Allowtheenginetorununtilitshutsoff.Whenyou
cannolongerstarttheengine,itissufcientlydry.
6.Disconnectthewirefromthesparkplug.
7.Removethesparkplug,add30mlofengineoilthrough
thespark-plughole,andpullthestarterropeslowly
severaltimestodistributeoilthroughoutthecylinder
topreventcylindercorrosionduringtheoff-season.
8.Looselyinstallthesparkplug.
9.Tightenallnuts,bolts,andscrews.
RemovingtheMachinefrom
Storage
1.Checkandtightenallfasteners.
2.Removethesparkplugandspintheenginerapidlyby
pullingtherecoil-starthandletoblowtheexcessoil
fromthecylinder.
3.Installthesparkplugandtightenitwithatorque
wrenchto20N∙m.
4.Performanymaintenanceprocedures;referto
Maintenance(page16).
5.Checktheengine-oillevel;refertoFillingtheFuel
Tank(page9).
6.Fillthefueltankwithfreshfuel;refertoFillingthe
FuelTank(page9).
7.Connectthewiretothesparkplug.
20
