Toro TimeCutter Z17-52 Service Manual

CHASSIS
TimeCutter™ Z Service Manual 6 - 21
6

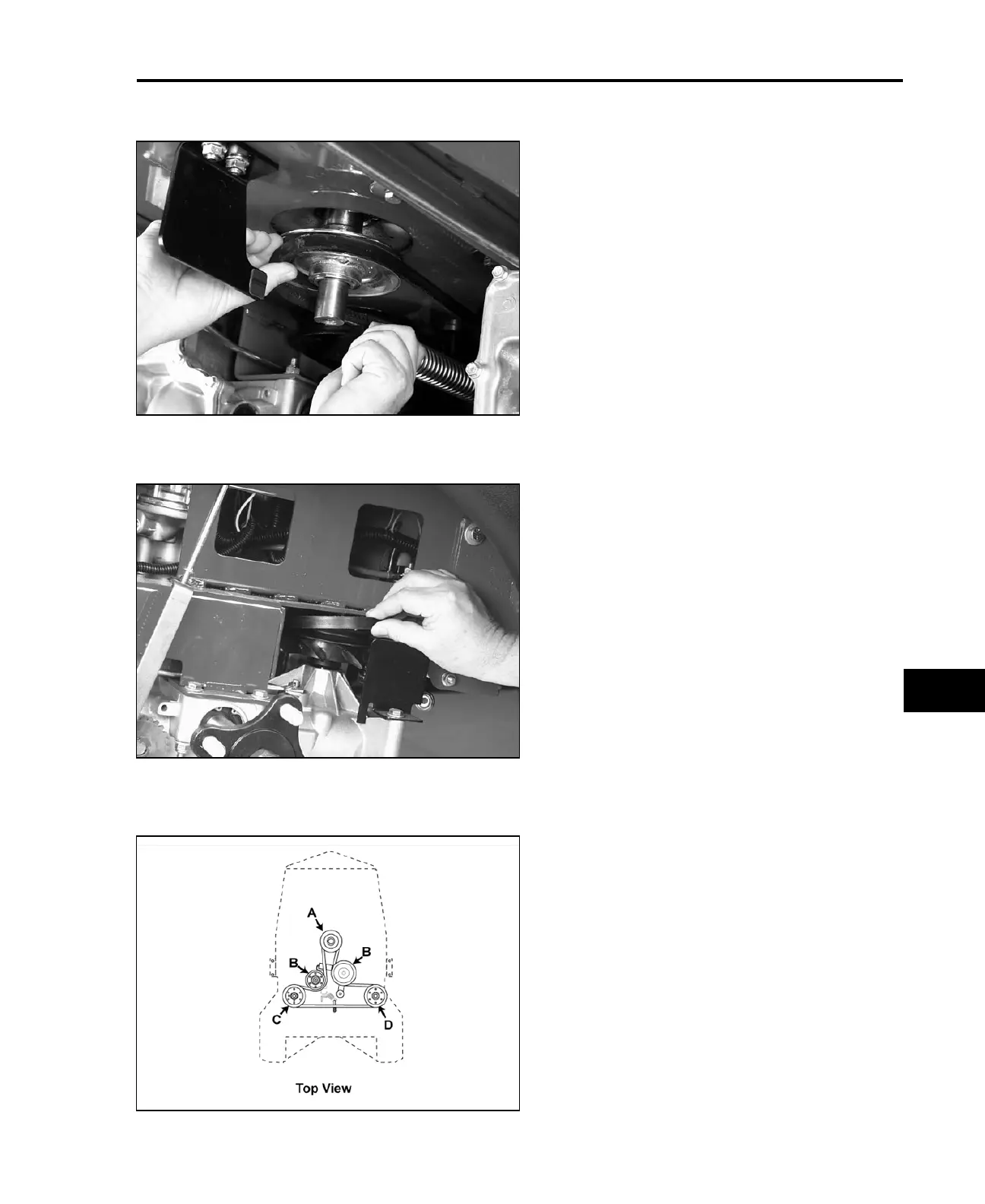

Remove traction drive belt.
Move the idler pulley to lessen the tension on the
traction drive belt and slip the belt up off the
engine drive pulley.
Remove the traction belt from the transaxle
pulleys.
Install the traction belt following the belt routing.
Reconnect the idler bracket spring and tighten
the eye bolt.
(A) Engine Pulley
(B) Idler Pulley
(C) Right Hydro
(D) Left Hydro
0702-0632
0702-0512
1S-0802
