HYDROSTATIC DRIVE SYSTEM
5-11
Toro TITAN 2009-2013 Service Manual
5

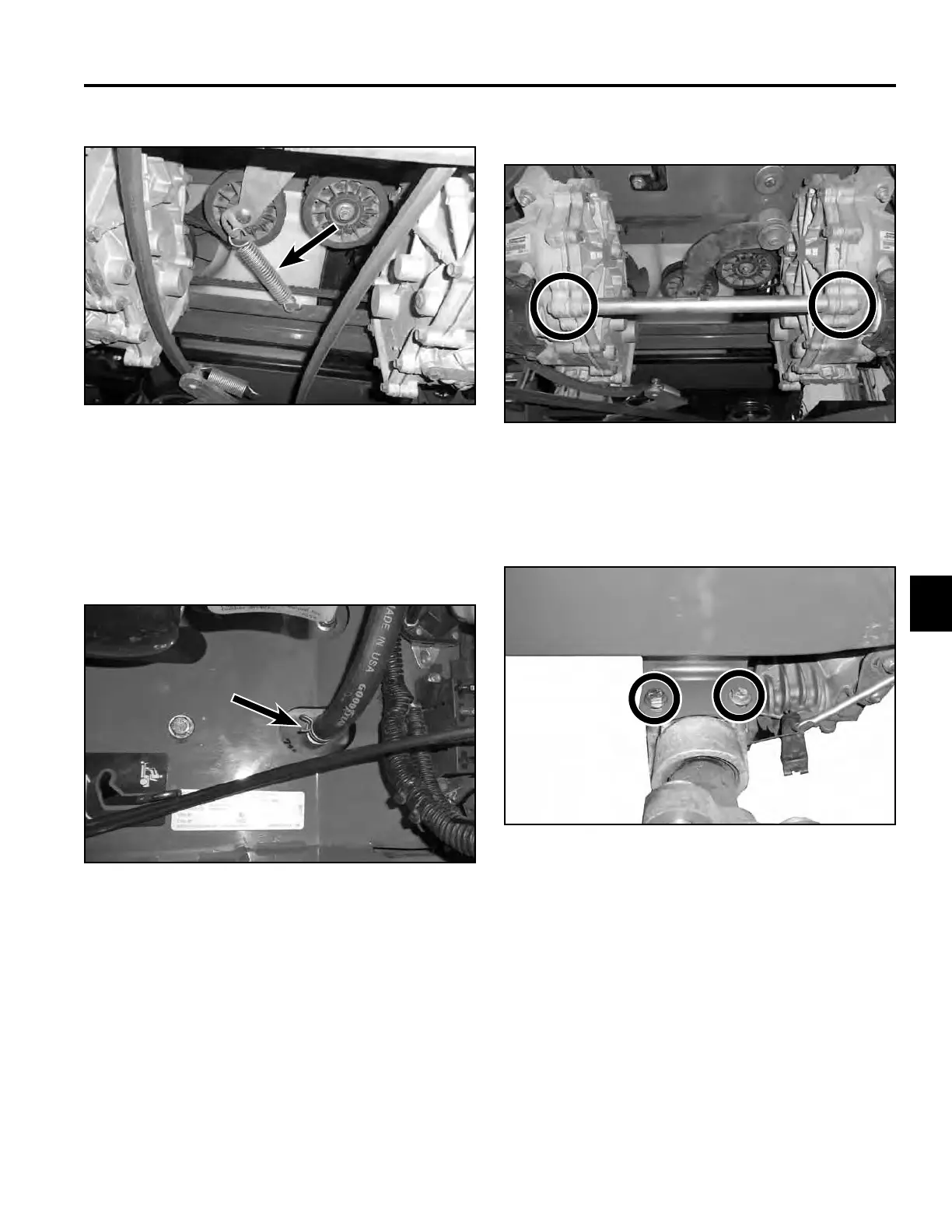

8. Remove the drive belt tensioner spring (Fig. 078). 11. Remove the (2) bolts that secure hydro center
support. Remove support from the unit (Fig. 080).
Fig. 078 PICT-2041
9. Slip the drive belt off the idler / tensioner pulleys,
then off the appropriate hydro input pulley.
10. Disconnect and plug the hydro reservoir hoses at the
hydro tting. Be sure to capture and dispose of uid
and shop towels properly (Fig. 079).
Fig. 079 PICT-2047
Fig. 080 PICT-2048
12. Safely support hydro assembly in current position
using a hydraulic oor jack. Remove the (2) outer
hydro mounting fasteners (Fig. 081).
Fig. 081 PICT-2049
