Toro Z Master 74143 - Cooling System Maintenance; Cleaning the Engine Screen; Cleaning the Engine Cooling Fins and Shrouds

CoolingSystem
Maintenance
CleaningtheEngineScreen
ServiceInterval:Beforeeachuseordaily
Beforeeachuseremoveanybuild-upofgrass,dirtor
otherdebrisfromtheenginescreen.Thiswillhelp
insureadequatecoolingandcorrectenginespeedand
willreducethepossibilityofoverheatingandmechanical
damagetotheengine(
Figure54).
CleaningtheEngineCooling
FinsandShrouds
ServiceInterval:Every100hours/Yearly(whichever
comesrst)
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Removetheairintakescreen,recoilstarterandfan
housing(
Figure54).
4.Cleanthedebrisandgrassfromtheengineparts.
5.Installairintakescreen,recoilstarterandfanhousing
(
Figure54).

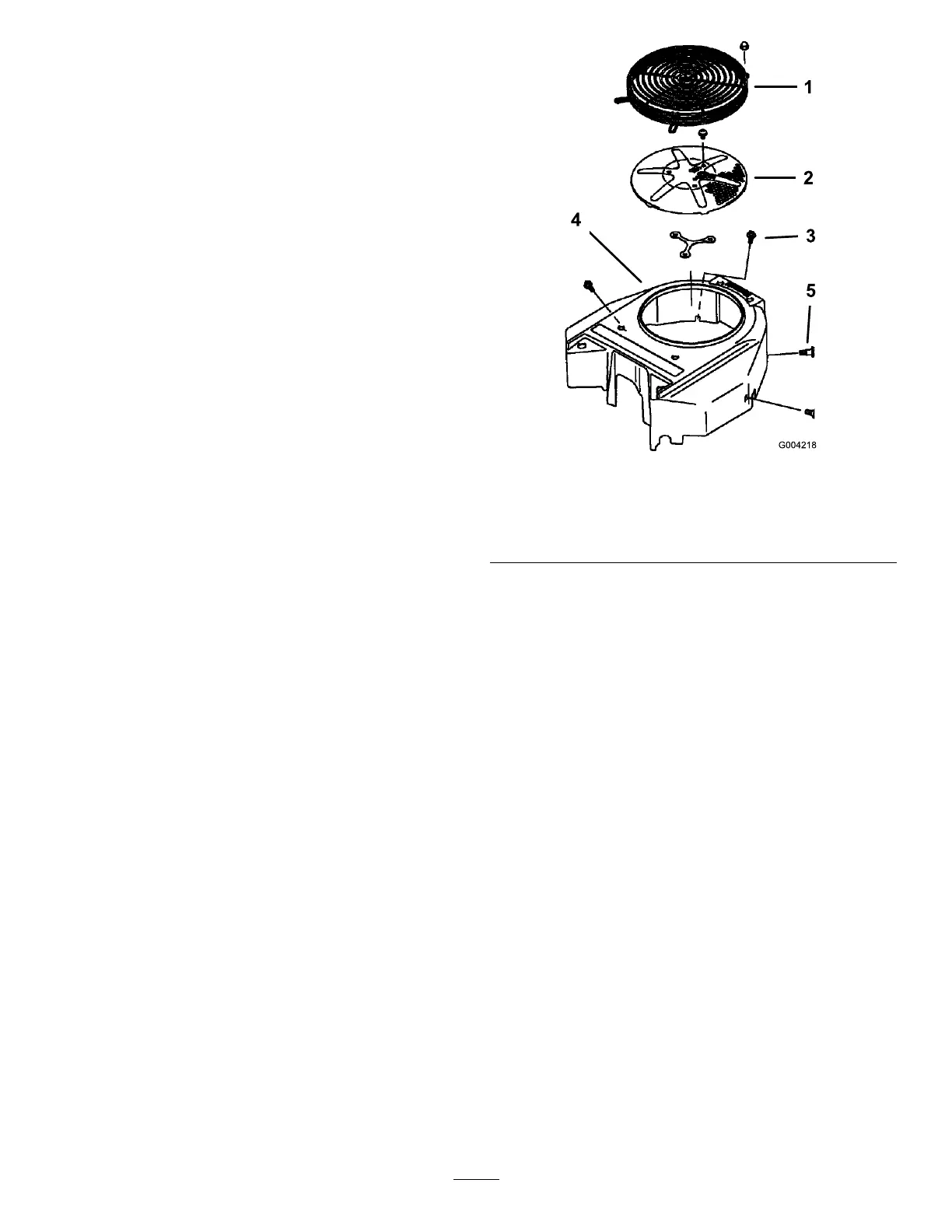

Figure54
1.Engineguard4.Fanhousing
2.Engineairintakescreen
5.Screw
3.Bolt
