Toro Z Master 77248 - Positioning the Seat; Changing the Seat Suspension; Adjusting the Rear-Shock Assemblies

PositioningtheSeat

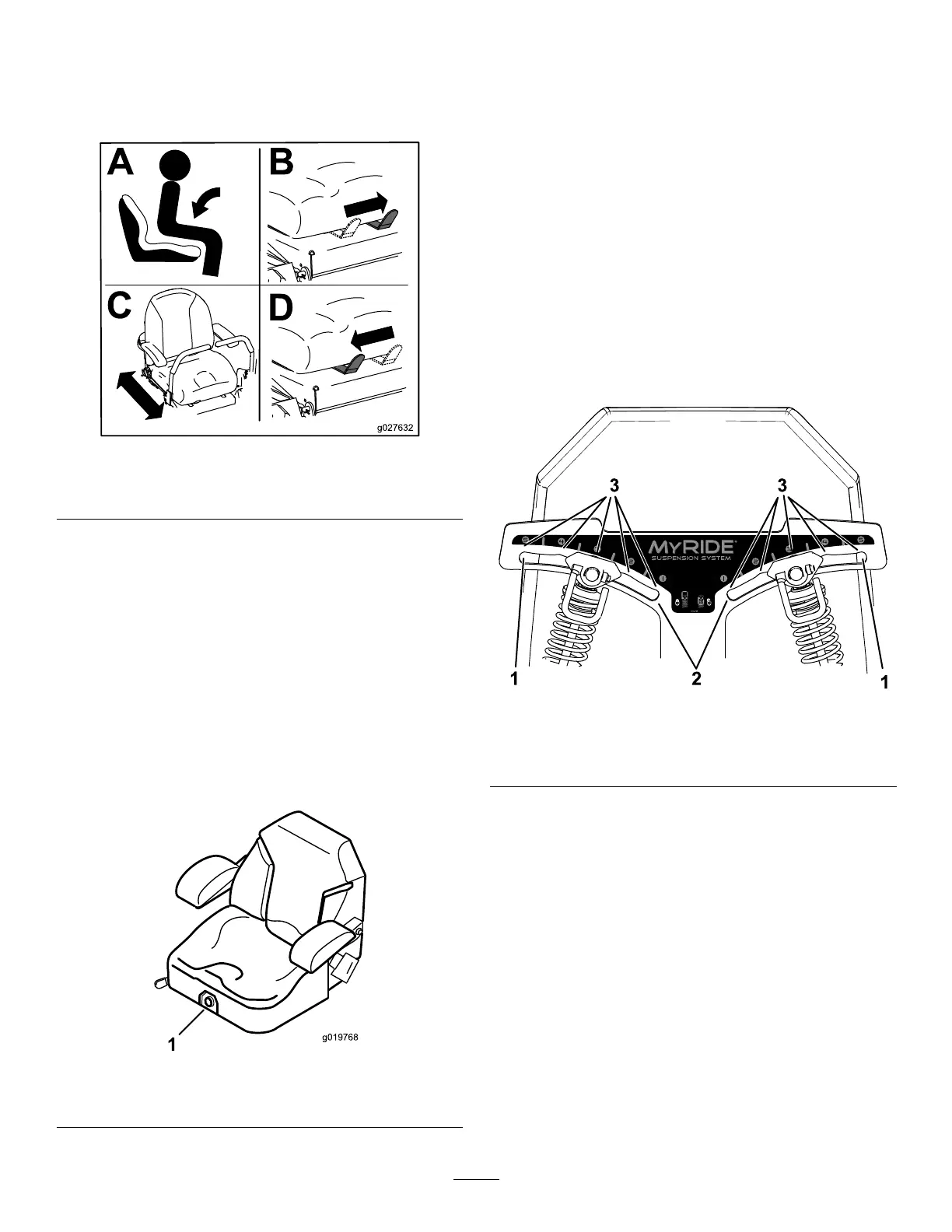

Theseatcanmoveforwardandbackward(Figure13).
Positiontheseatwhereyouhavethebestcontrolof
themachineandaremostcomfortable.
g027632
Figure13
SeatformachineswithMyRideshown.
ChangingtheSeat
Suspension
MachineswithoutMyRide™
SuspensionSystemOnly
Theseatisadjustabletoprovideasmoothand
comfortableride.Positiontheseatwhereyouare
mostcomfortable.
Toadjustit,turntheknobinfronteitherdirectionto
providethebestcomfort(Figure14).
g019768
Figure14
1.Seat-suspensionknob
AdjustingtheRear-Shock
Assemblies
MachineswithMyRide™
SuspensionSystemOnly
TheMyRide™suspensionsystemadjuststoprovide
asmoothandcomfortableride.Youcanadjustthe
rear2-shockassembliestoquicklyandeasilychange
thesuspensionsystem.Positionthesuspension
systemwhereyouaremostcomfortable.
Theslotsfortherear-shockassemblieshave
detentpositionsforreference.Youcanpositionthe
rear-shockassembliesanywhereintheslot,notjustin
thedetentpositions.Thefollowinggraphicshowsthe
positionforasoftorrmrideandthedifferentdetent
positions(Figure15).
g227753
Figure15
1.Firmestposition3.Detentsintheslots
2.Softestposition
Note:Ensurethattheleftandrightrear-shock
assembliesarealwaysadjustedtothesamepositions.
Adjusttherear-shockassemblies(Figure16).
21
