Porch Pole Assembly Before lifting the front centre upright pole into place insert part #7 into part #44. When centre

upright pole is ifted insert parts 8 & 9 into place to complete centre ridge porch pole assembly.

Part #44

Centre Ridge Pole Front

Part #7

Porch Spreader Bar

Part #14A

Porch Centre Pole Bottom

Part #10

Porch Pole Bottom

Part #10

Porch Pole Bottom

Part #11

Corner Porch Pole Top

Part #12

Outside Porch Pole Top

Part #14

Porch Centre Pole Top

Part #8

Porch Spreader Bar

Part #9

Porch End Bar

Part #32

Roof end pole outside

Part #33

Roof spreader pole outside

Part #34

Roof end pole outside

Outside Ridge Poles Insert poles through the webbing loop and through outside ridge pole sleeves on the roof.

Outside Support Legs Place the outside support legs into the roof end poles on the outside ridge poles

ready to lift the side walls into position.

Part #30

Outside Support Leg Top

Part #31

Outside Support Leg Bottom

Part #30

Outside Support Leg Top

Part #31

Outside Support Leg Bottom

Inside Ridge Poles Insert poles through the webbing loop and pole sock and through inside ridge pole

sleeves on roof.

Part #35

Roof end pole inside

Part #36

Roof spreader pole inside

Part #37

Roof end pole inside

Inside Support Legs Place the inside support legs into the roof end poles on the inside ridge poles

ready to lift the internal walls into position.

Part #38

Inside Support Leg Top

Part #39

Inside Support Leg Bottom

Part #38

Inside Support Leg Top

Part #39

Inside Support Leg Bottom

Centre Ridge Pole Insert centre ridge pole assembly through the webbing loop and pole sock from

the porch end.

Part #44

Centre Ridge Pole Front

Part #43

Roof Spreader Pole

Part #42

Roof End Pole

Centre Upright Poles Place the centre support legs into the centre pole ready to lift into position.

Part #40

Centre Upright Top

Part #40

Centre Upright Top

Part #41

Centre Upright Bottom

Part #41

Centre Upright Bottom

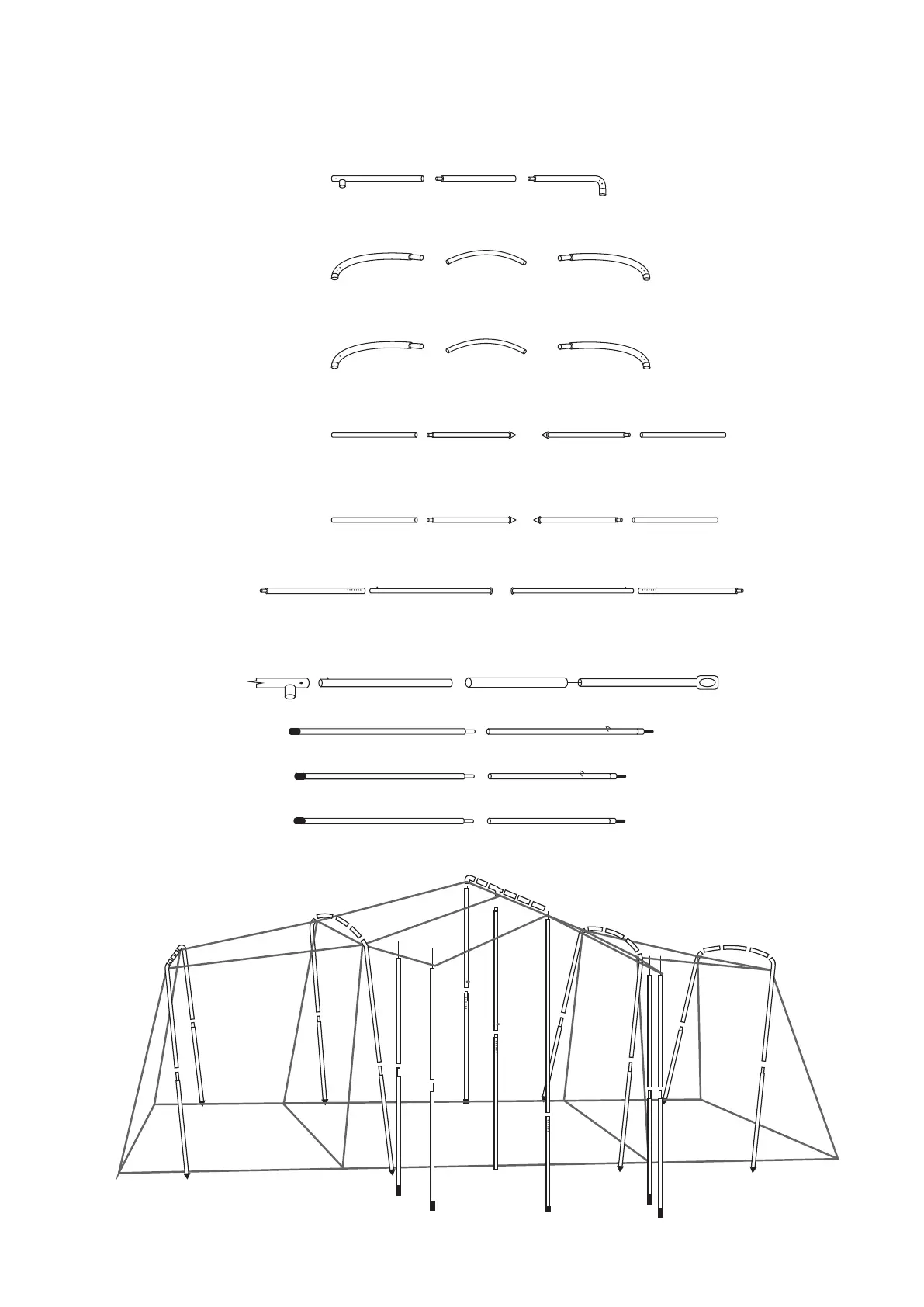

Frame Parts

Lay out pole segments as shown below in order to make assemble quick and easy.

GUSSET

SOCK

PART

63C

14A

10 10
