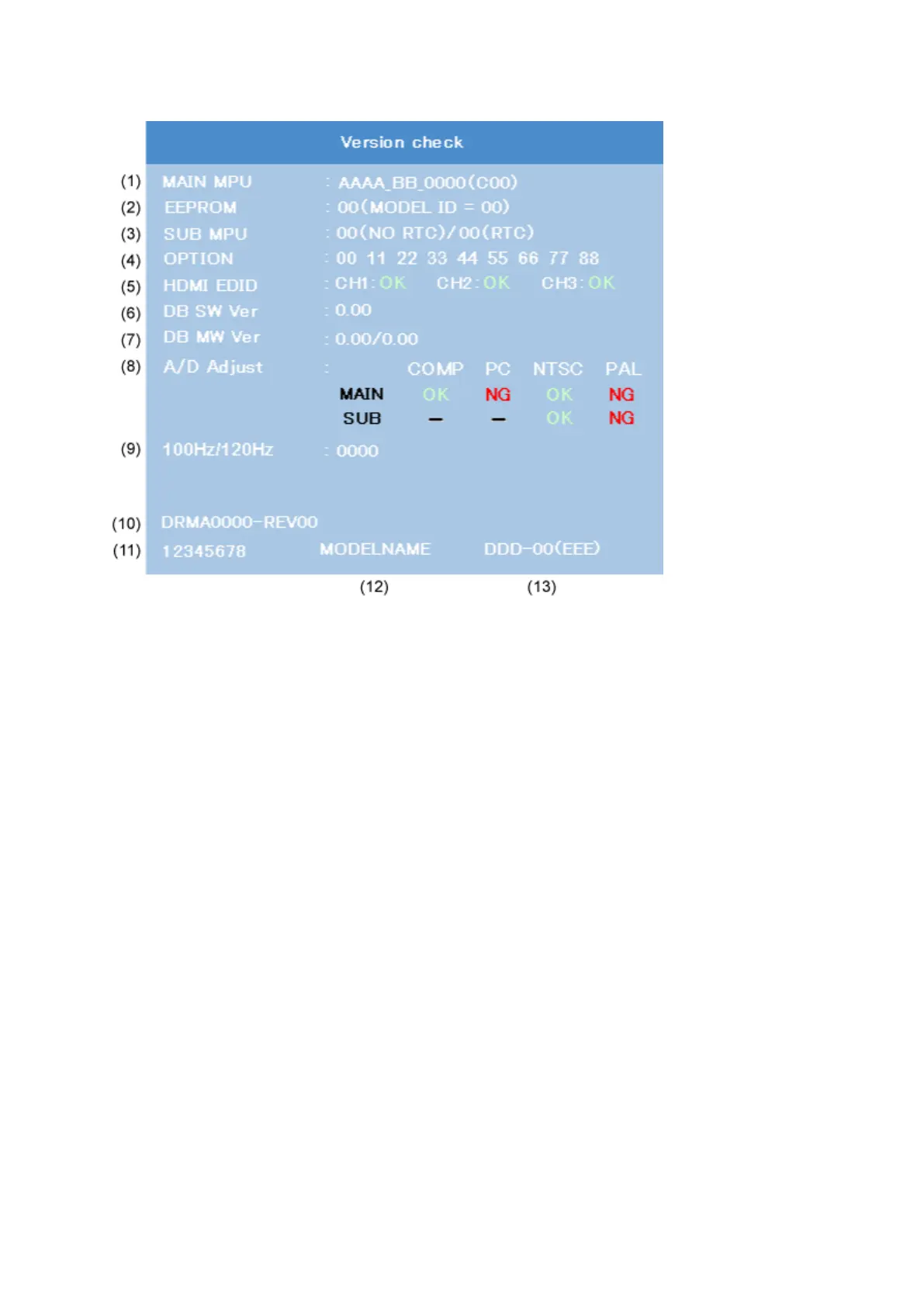

(1) MAIN MPU :
Version information of microprocessor
Series name and Code Program Version (4 figure number) and OSD Version (2 figure
number).
(2) EEPROM :
Version information of EEPROM : Display 1 byte data.
(3) SUB MPU :
Version information of SUB MPU : Display 1 byte data.
(4) OPTION :
Option information : Display six numbers of 1 byte data.
Left side means QF01 (for AV-LINK) micon software version.
Right side means QA01 (for CEC) micon software version. (Only CEC model)
(5) HDMI EDID :
EDID data check item. Display channel numbers depend on HDMI input numbers.
OK : EDID data is enable.
NG : EDID data is disable.
(6) SW Ver
Version information of DB software as Toshiba release. (Only digital model.)
(7) MW Ver
ADJUSTMENT [LCD Color Television] ASIA_EU
