4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
(Revised on OCT. 2013)
4.1 DISC CUTTER (B-EX204-QM-R)
4- 5 -1

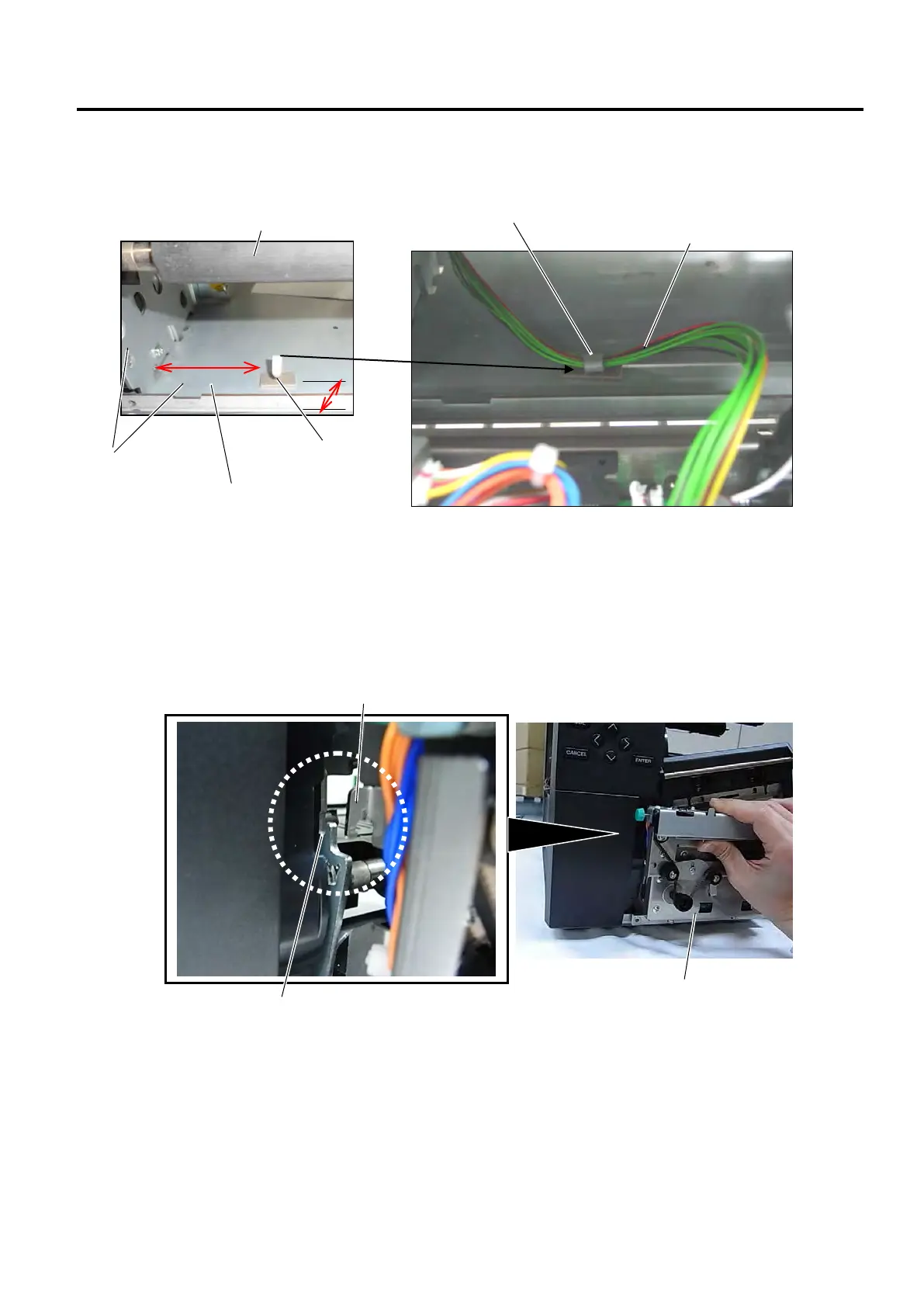

7. Attach the Cable Clamp to the printer base so that it is positioned under the Platen and a little closer to
the Main Frame. Fasten the Harness Ass’y with the Cable Clamp.
NOTE: Make sure the wires will not touch or obstruct any moving parts.
8. Place the hook at the left side of the Cutter Unit on the cut in the printer main frame.
Cutter Unit
Cut
Hook
Cable Clamp ( bended)
Printer Base
Harness Ass’y
Platen
Cable Clamp
Main Frame
60mm
15mm
