Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-15
4.3 PEEL OFF MODULE (B-EX904-H-QM-R)

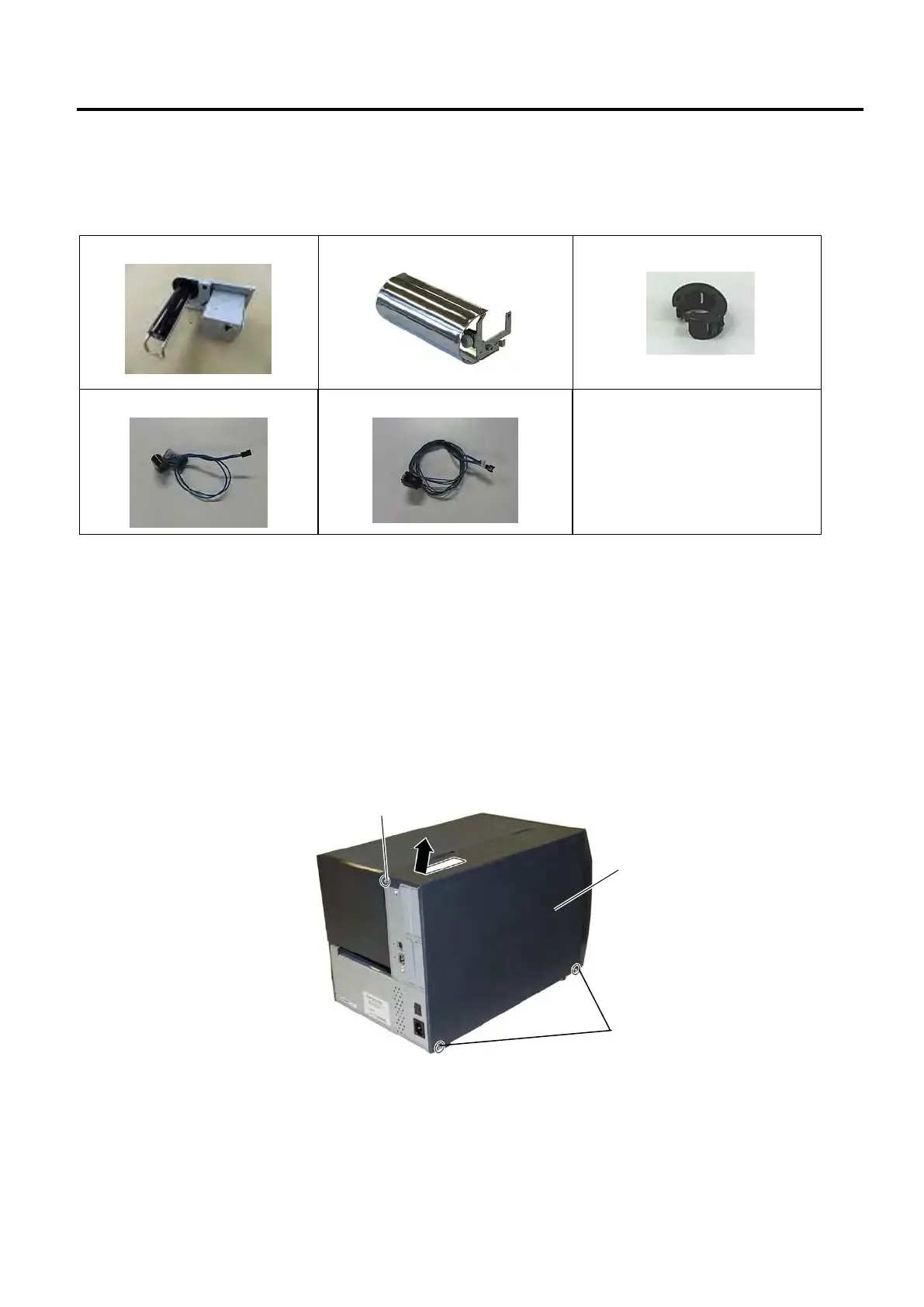

All the following parts are supplied with the kit. Make sure you have all items shown below.
Rewinder Ass’y (1 pc.)
Rewinder Guide Plate (1 pc.)
Bush (1 pc.)
Strip Sensor (TR) (1 pc.)
Strip Sensor (LED) (1 pc.)
• C-4x6 Screw (2 pcs.)
• ST-3x6 Screw (6 pcs.)
• PT-3x6 Screw (2 pcs.)
• Installation Manual (1 copy)
NOTE:
1. This module cannot be used together with the B-EX204-QM-R disc cutter or B-EX204-R-QM-R rotary cutter.
2. When the peel-off module is used together with an RFID module, be sure to install the RFID module prior to
this module.
4.3.1 Removing the Covers
1. Turn the printer power off and disconnect the Power Cord.
2. Remove the three B-4x5 screws from the Side Panel (L).
3. Slide the Side Panel (L) backward, and raise it to remove from the printer.
B-4x5 Screw
Side Panel (L)
B-4x5 Screw
