Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-25

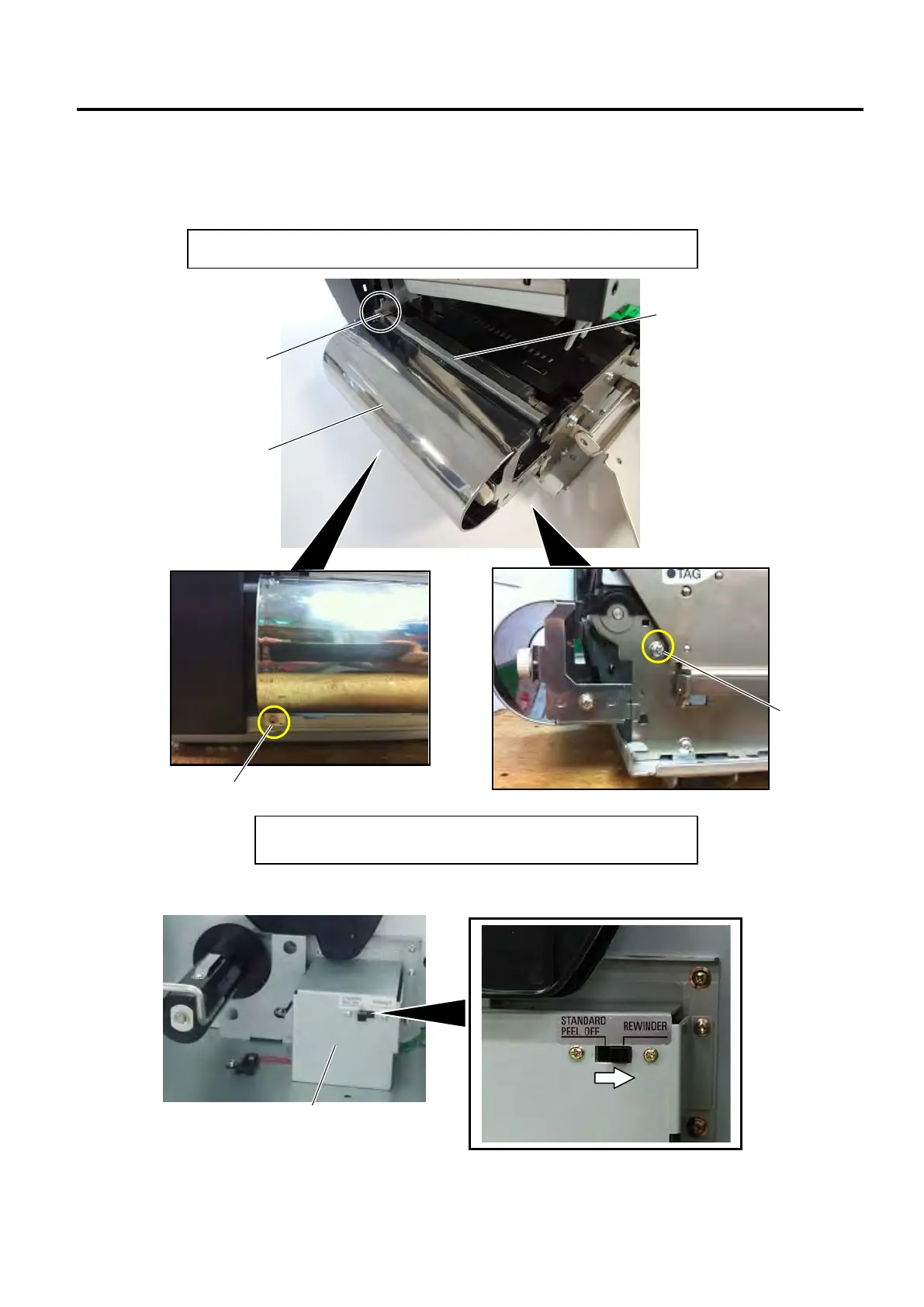

4.3.4 Attaching the Rewinder Guide Plate
1. When using the printer in built-in rewinder mode, attach the Rewinder Guide Plate to the front of the
printer with the two C-4x6 screws.
2. Set the selection switch mounted on the Rewinder Ass’y to REWINDER position.
Hook
C-4x6 Screw
C-4x6 Screw
Rewinder Guide Plate
 Hook the left side of the Rewinder Guide Plate onto the Strip Plate.

Secure the right side and lower left of the Rewinder
Guide Plate with the C-4x6 screws.
Rewinder Ass’y
Strip Plate

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
