INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Jan. 19, 2006)
6. Real Time Clock: B-SA704-RTC-QM-R
6- 4

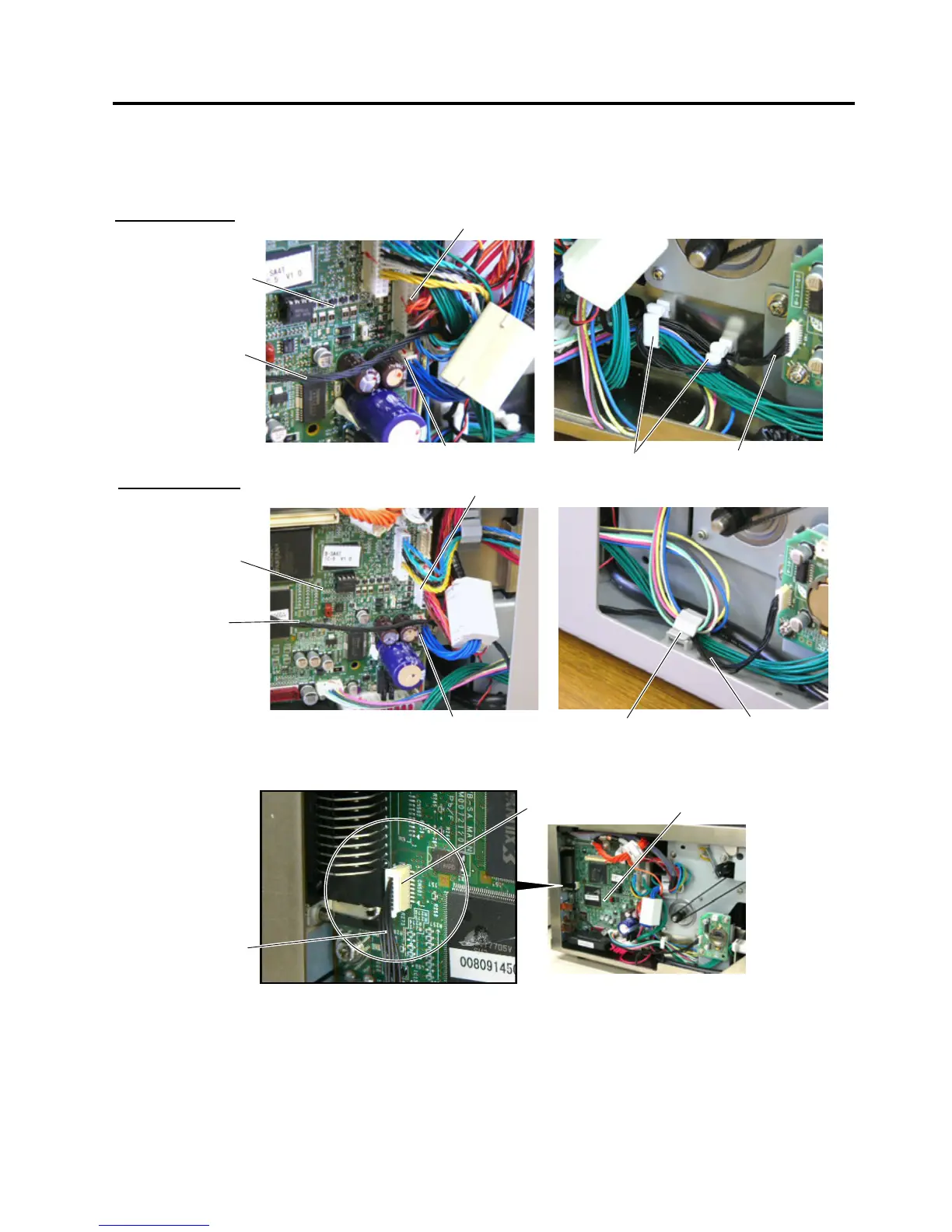

5. Pass the Interface Cable through the Cable Clamp, and between CN1 and CN2 on the MAIN PC
Board, as shown in the pictures below. For the B-SA4TP model, wind the cable on the two Cable
Clamps.
6. Connect the Interface Cable to CN501 on the MAIN PC Board.
7. Attach the Side Panel, removed in Step 2, back to the printer. Care must be taken not to catch the
Interface Cable by the Side Panel.
NOTE: When the B-SA704-IO-QM-R Expansion I/O Board or B-SA704-RS-QM-R Serial Interface Board was
removed beforehand, re-install it.
Cable Clamp
B-SA4TP Model
Interface Cable
Interface Cable
Connector CN2
Connector CN1
MAIN PC Board
B-SA4TM Model
Cable Clamp
Interface Cable
Interface Cable
Connector CN2
Connector CN1
MAIN PC Board
CN501
Interface Cable
MAIN PC Board

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
