Toshiba B-SA4T Series User Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 5

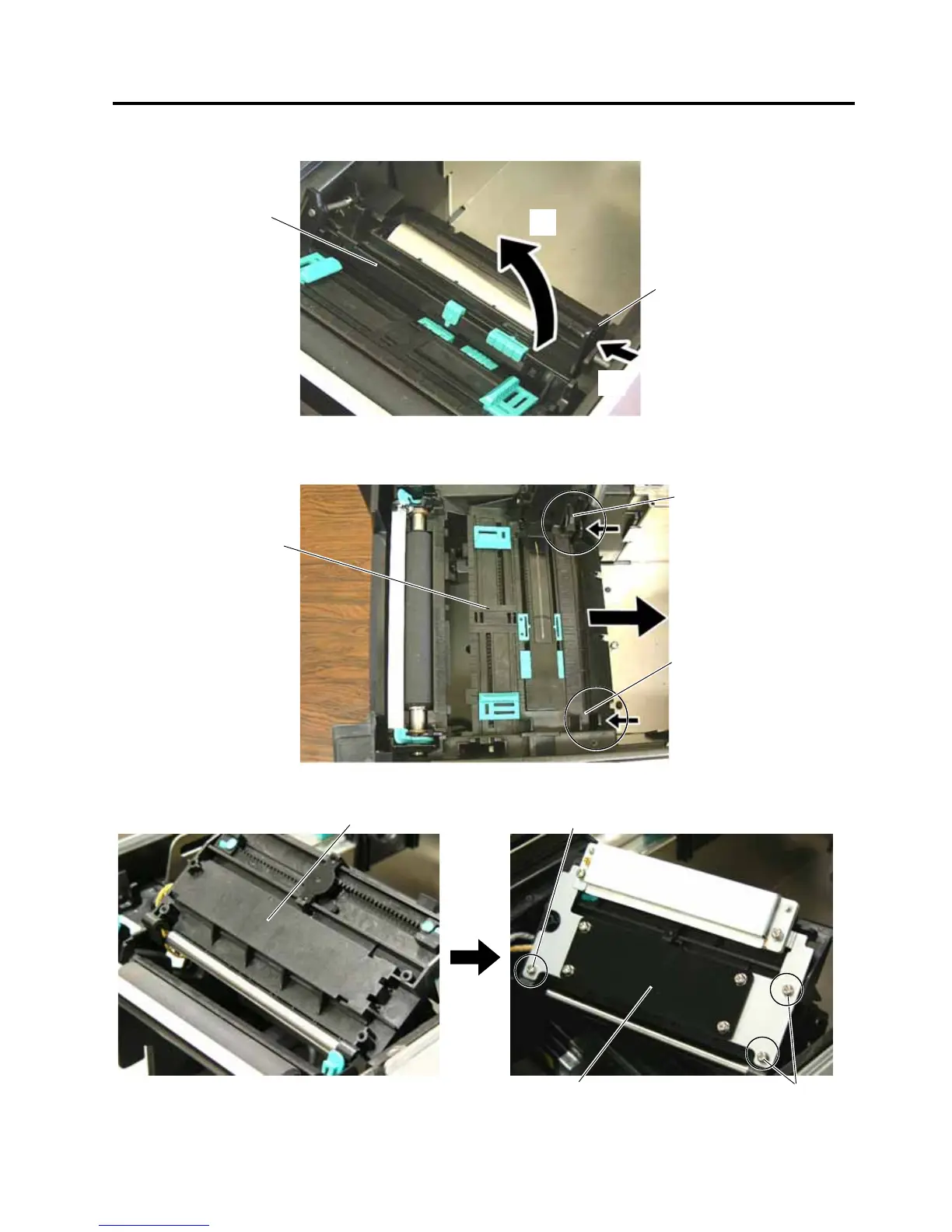

3. Slightly push the Upper Sensor Lever inside (1), and open the Upper Sensor Ass’y (2).
4. Pushing the tabs on the rear of the Media Sensor Block toward the front of the printer, slightly lift the
back of the Media Sensor Block, and remove it toward the printer back.
5. Turn over the Media Sensor Block, and secure the Antenna Ass’y with the supplied three Tapping
Screws.
Upper Sensor Lever
Upper Sensor Ass’
y
(1)
(2)
Tab
Tab
Media Sensor Block
Tapping Screw M-3x8
Tapping Screw M-3x8
Antenna Ass’
y
Sensor Block

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
