Toshiba D-VR6KC - Front; Parts and Functions; Rear

Introduction
12

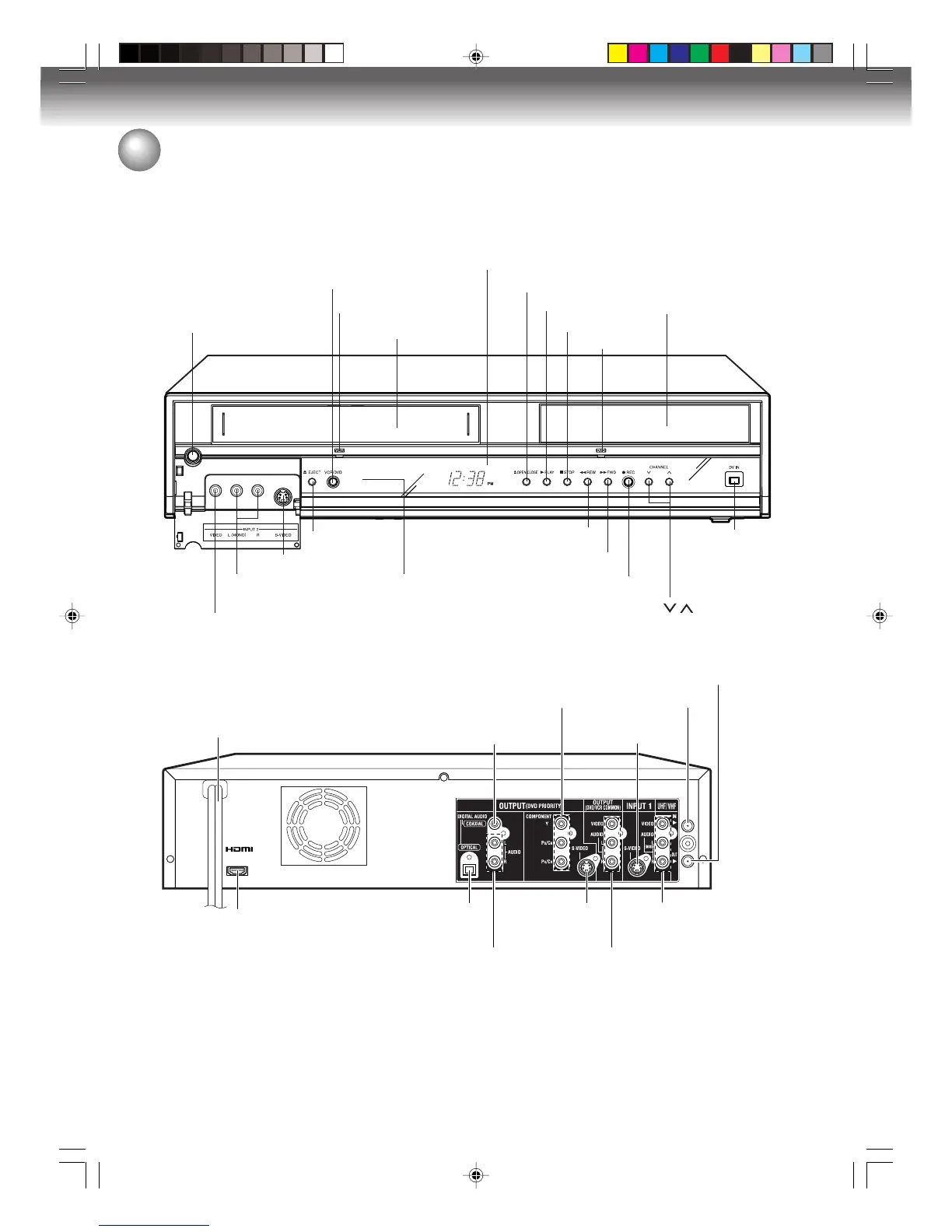

Parts and functions
Rear
Front
ON/STANDBY button
EJECT button
DV IN terminal
PLAY button
STOP button
FWD (Fast Forward) button
REW (Rewind) button
REC button
VCR/DVD button
Disc tray
Cassette Loading Slot
Display window
VIDEO IN (INPUT 2) jack
S-VIDEO IN (INPUT 2) jack
AUDIO (L/R) IN
(INPUT 2) jacks
* This unit has a door on the front panel.
Please open it to access the S-VIDEO jack and the AUDIO (L/R)/VIDEO IN (INPUT 2) jacks.
Remote sensor
CHANNEL / buttons
VCR indicator
OPEN/CLOSE button
AC power cord
COAXIAL DIGITAL
AUDIO OUT jack (DVD Priority)
AUDIO (L/R)/VIDEO OUT jacks
(DVD/VCR common)
AUDIO (L/R) OUT
jacks(DVD Priority)
AUDIO (L/R)/VIDEO
IN (INPUT 1) jacks
S-VIDEO
IN (INPUT 1) jack
S-VIDEO OUT jack
(DVD Priority)
COMPONENT
OUT jacks (DVD Priority)
OPTICAL DIGITAL
AUDIO OUT jack
(DVD Priority)
HDMI OUT jack
RF IN jack
RF OUT jack
DVD indicator
