ADJUSTMENT
3 - 25
[G] Right margin
(1) While pressing [0] and [5] simultaneously, turn the power ON. → (Adjustment Mode)
(2) Open the platen cover or RADF.
(3) Press [FAX] → [START] to make a copy at the mode of A3/LD, 100%, Full color, Text/Photo and
2nd drawer.
(4) Measure the blank area F at the right side of the copied image.
(5) Check if the blank area F is within the range.
(6) If not, use the following procedure to change values and repeat the steps 3. to 5. above.
<Procedure>
(Adjustment Mode) → (Key in the code [432]) → [START]
→ (Key in a value (acceptable values: 0 to 255))
→ [ENTER] or [INTERRUPT] (Stored in memory).
→ (“100% A” is displayed.)
* The larger the adjustment value is, the wider the blank area at the right side becomes
(approx. 0.04 mm/step).

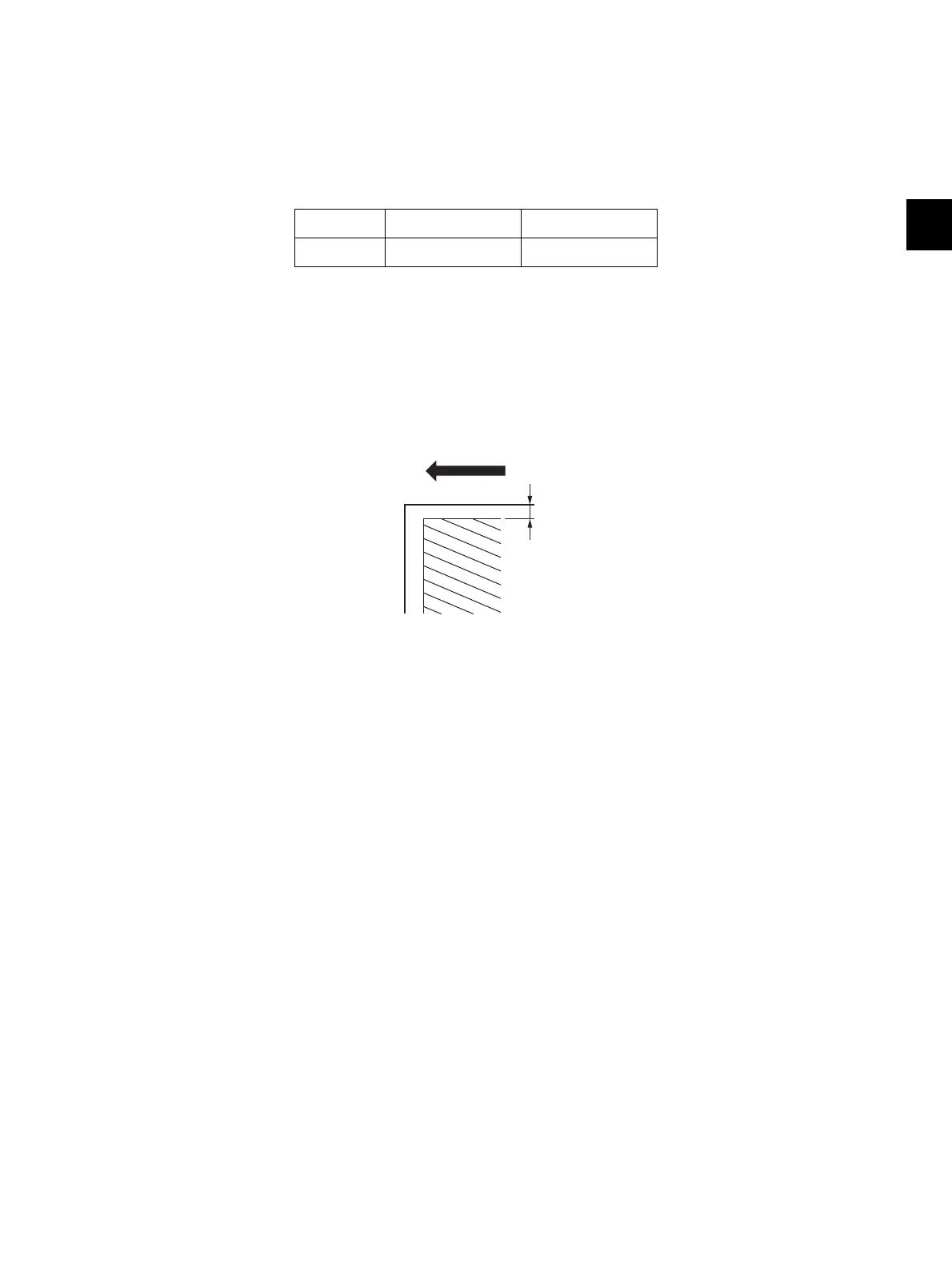

Fig. 3-18
Function Black Color
Copy 2±2.0 mm 2±2.0 mm
F
Feeding direction
To Next Page
