REPLACEMENT OF PC BOARDS/HDD
7 - 12
7.1.12 SRAM board <for LGC board>
(1) Take off the board cover.
 P.7-2 "7.1.2 Board cover"
(2) Release 2 latches and take off the SRAM
board for the LGC board with the case.

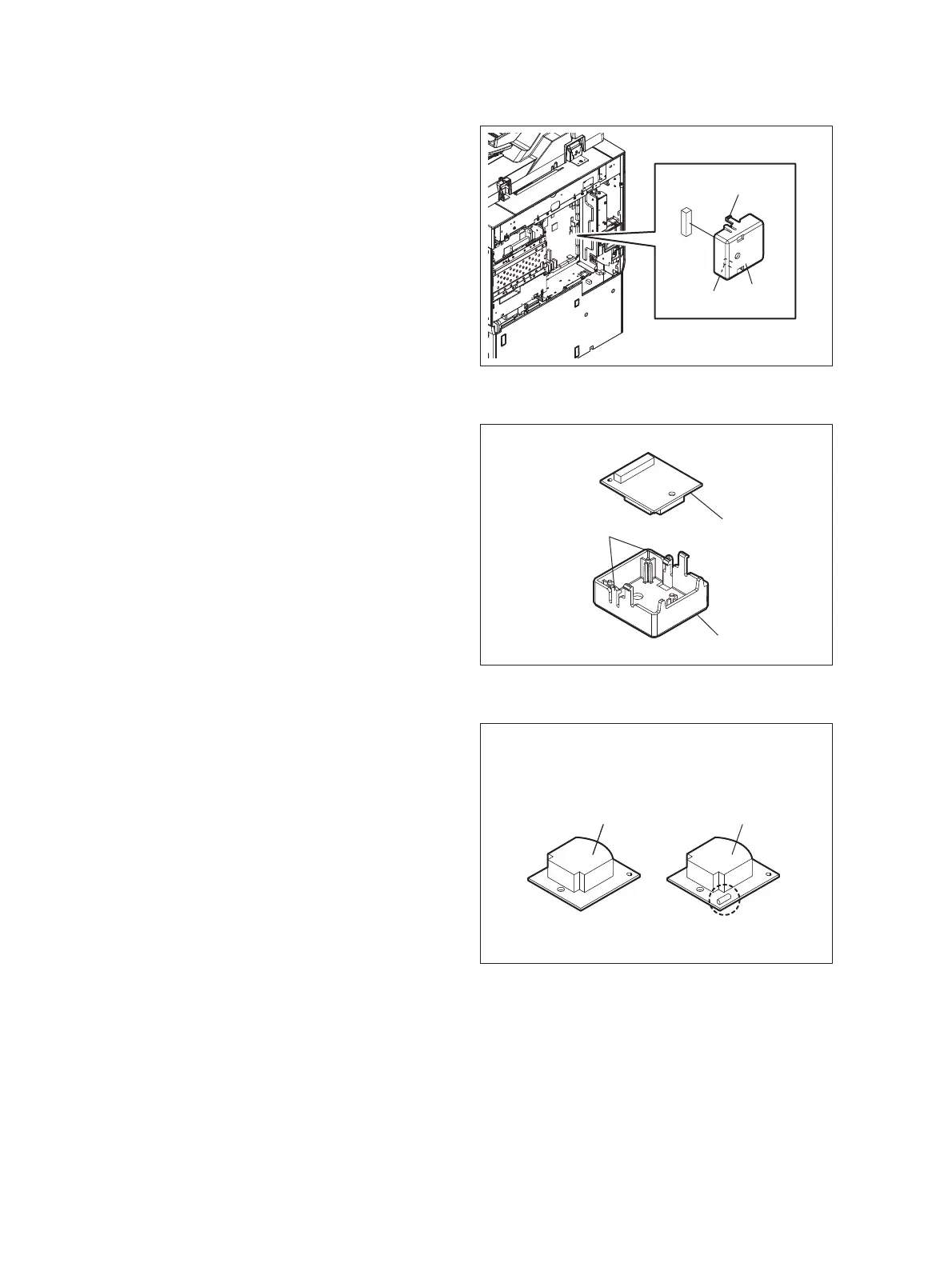

Fig. 7-29
(3) Release 2 latches and take off the SRAM
board for LGC board from the case.
Fig. 7-30
Note:
The shape of the SRAM board for the LGC
board differs from the one for the SYS board.
Be sure to assemble the correct SRAM
board.
Fig. 7-31
Latch
Case
Latch
Latch
SRAM board
(for LGC board)
Case
SRAM board
(for LGC board)
SRAM board
(for SYS board)
