9. PROCESS RELATED SECTION
9.1 Construction
This chapter describes the following unit regarding the image forming process.
• Main charger
• Charger wire cleaner
• Discharge LED
• Ozone filter
• Surface potential sensor
• High-voltage transformer
• Temperature/Humidity sensor
The drum/cleaner unit is described in chapter 10, the developer unit is described in chapter 11 and the
transfer/transport unit is described in chapter 12.

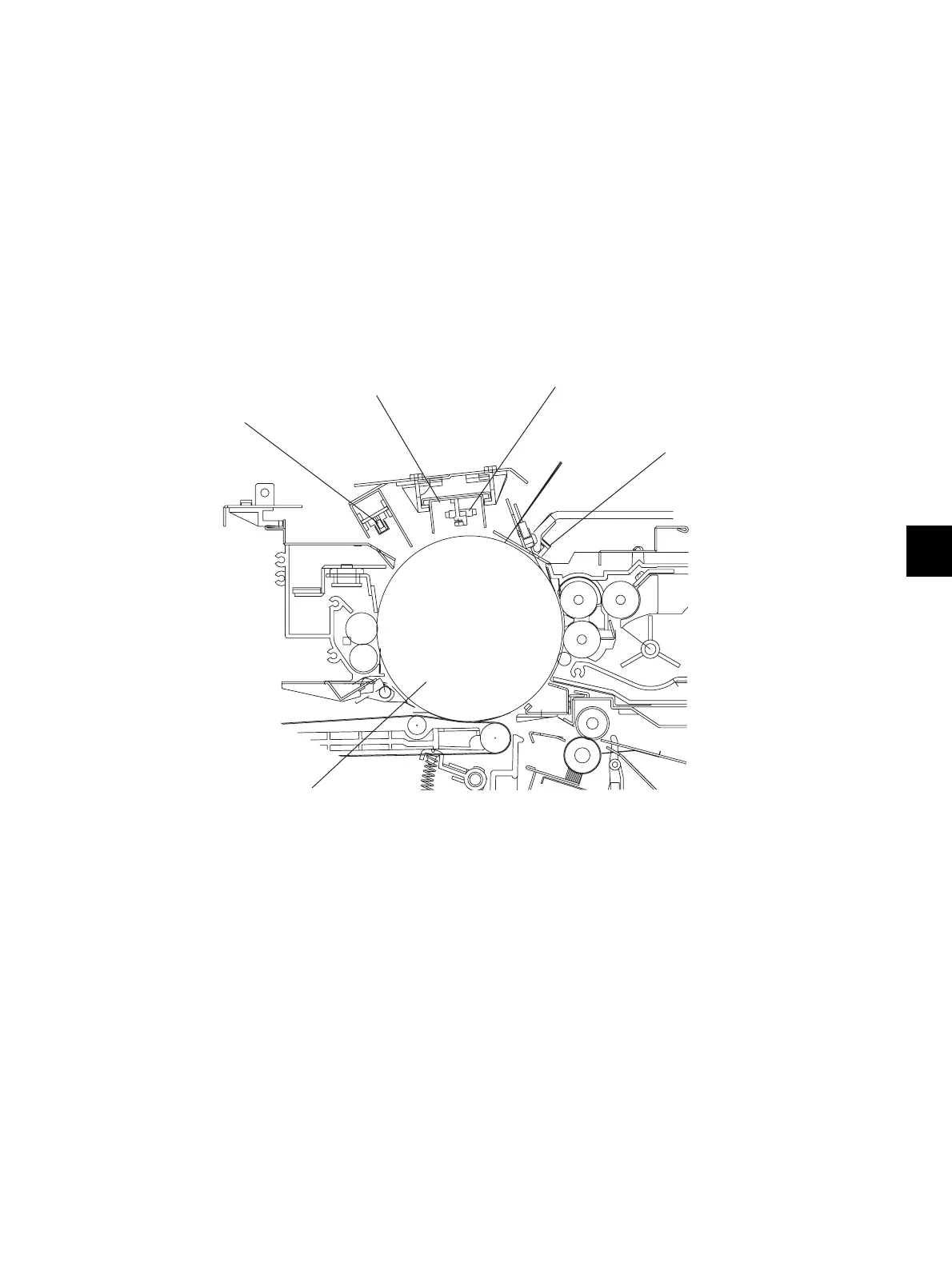

Fig. 9-1
Discharge LED
Main charger
Charger wire cleaner
Drum surface
potential sensor
Drum
