REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 20
15.5.9 RADF exit tray
(1) Take off the RADF front cover.
 P.15-15 "15.5.2 RADF front cover"
(2) Take off the RADF rear cover.
 P.15-16 "15.5.3 RADF rear cover"
(3) Take off the platen sheet unit.
 P.15-19 "15.5.8 Platen sheet unit"

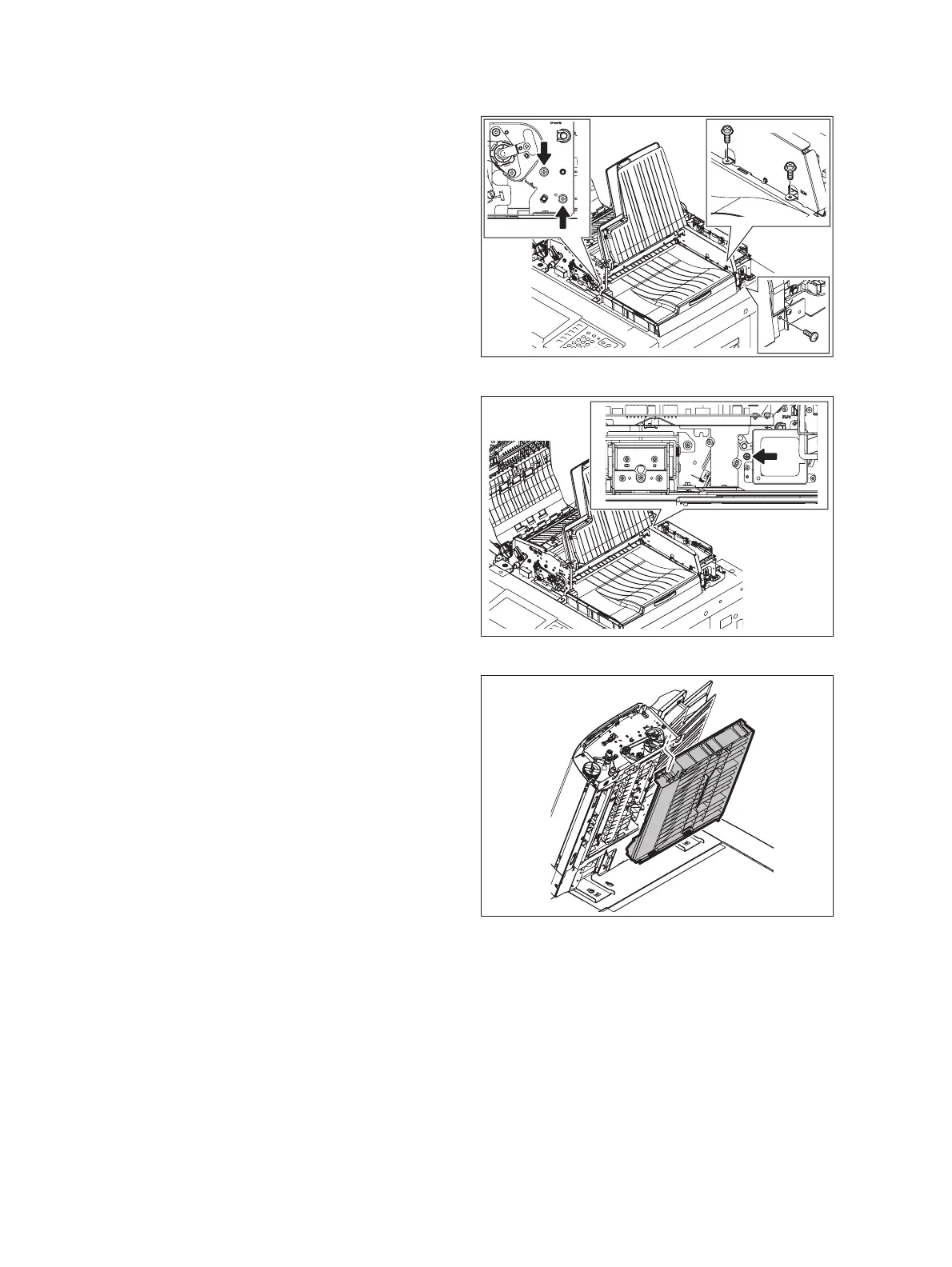

(4) Remove 5 screws.
Fig. 15-30
(5) Remove 1 screw.
Fig. 15-31
(6) Take off the RADF exit tray.
Fig. 15-32
