Toshiba e-studio555 - Paper Feeder Unit

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 24

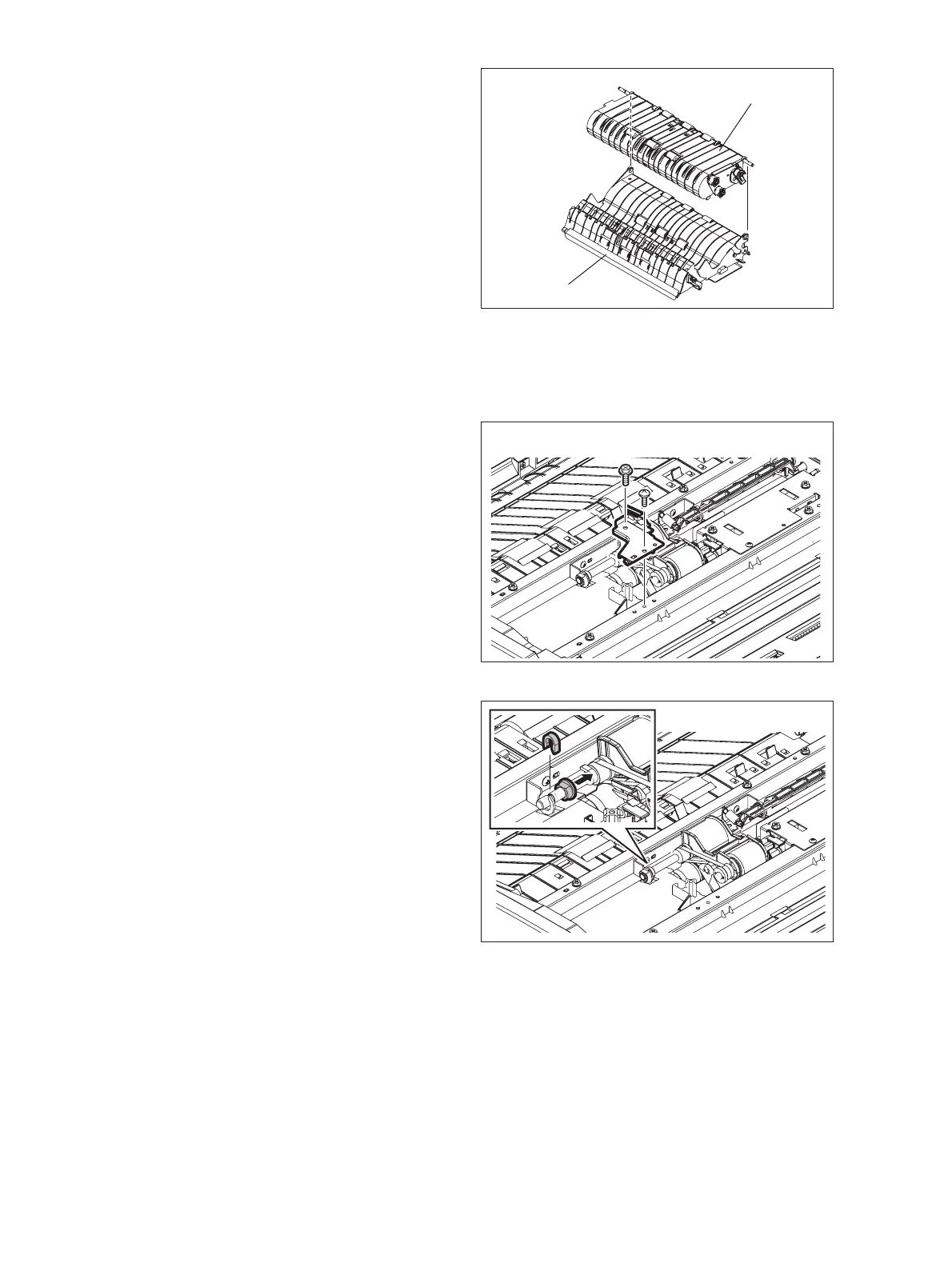

15.5.12 Paper feeder unit
(12) Separate the reverse guide and the exit/
reverse guide.
Fig. 15-43
(1) Open the original jam access cover. Then
remove 2 screws and take off the arm unit on
the front side.
Fig. 15-44
(2) Remove 1 clip and slide the bushing.
Fig. 15-45
Exit guide
Exit/reverse guide
