© 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO555/655/755/855
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 25

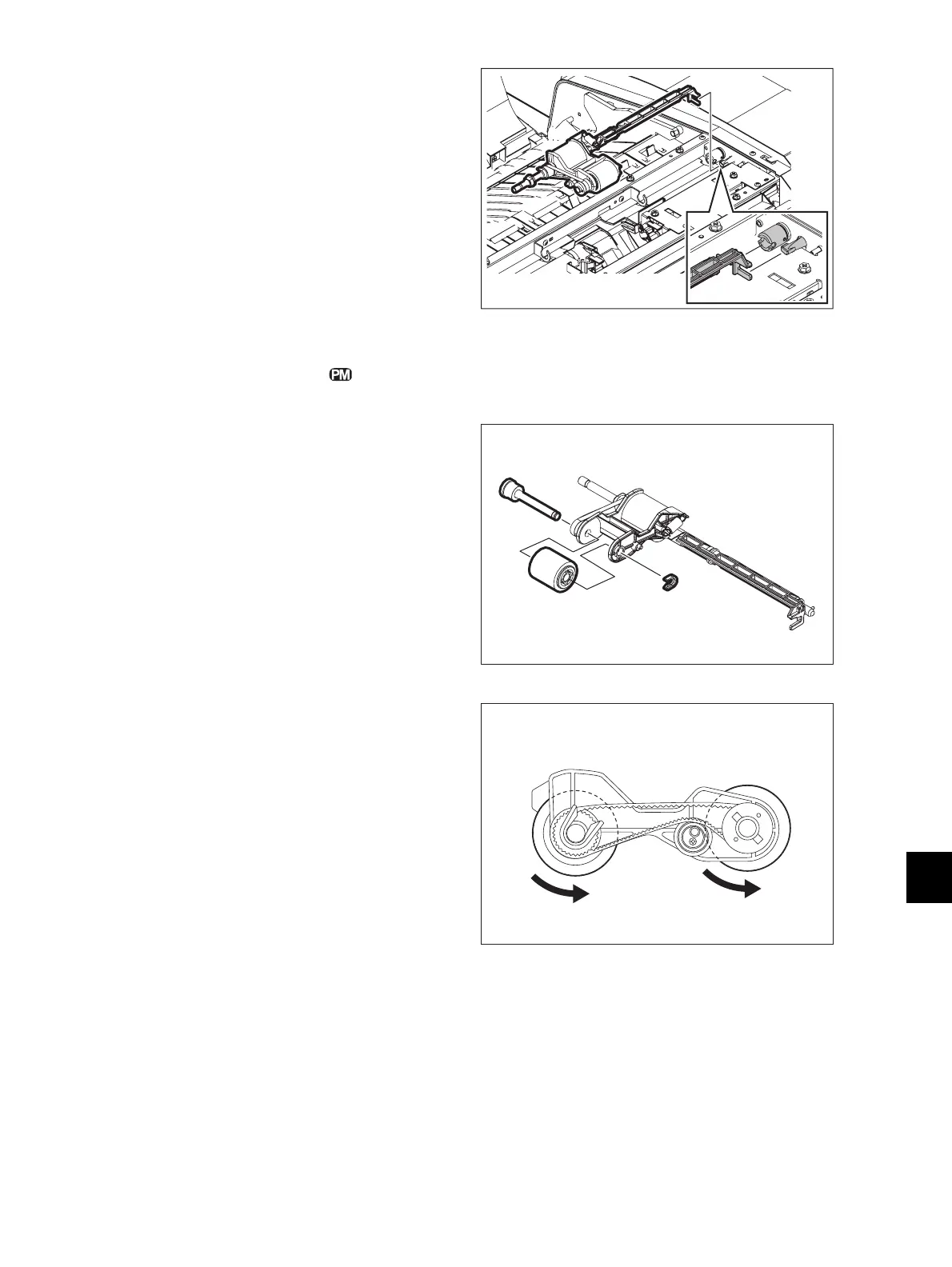

15.5.13 Pickup roller
(3) Take off the paper feeder unit.
Fig. 15-46
(1) Take off the paper feeder unit.
 P.15-24 "15.5.12 Paper feeder unit"
(2) Remove 1 clip. Then pull out the shaft and
take off the pickup roller.
Fig. 15-47
Note:
Make sure you assemble the pickup roller
with the one-way clutch in the correct
direction.
Fig. 15-48
Lock
Lock
