REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 26
15.5.14 Feed roller
(1) Take off the paper feeder unit.
 P.15-24 "15.5.12 Paper feeder unit"

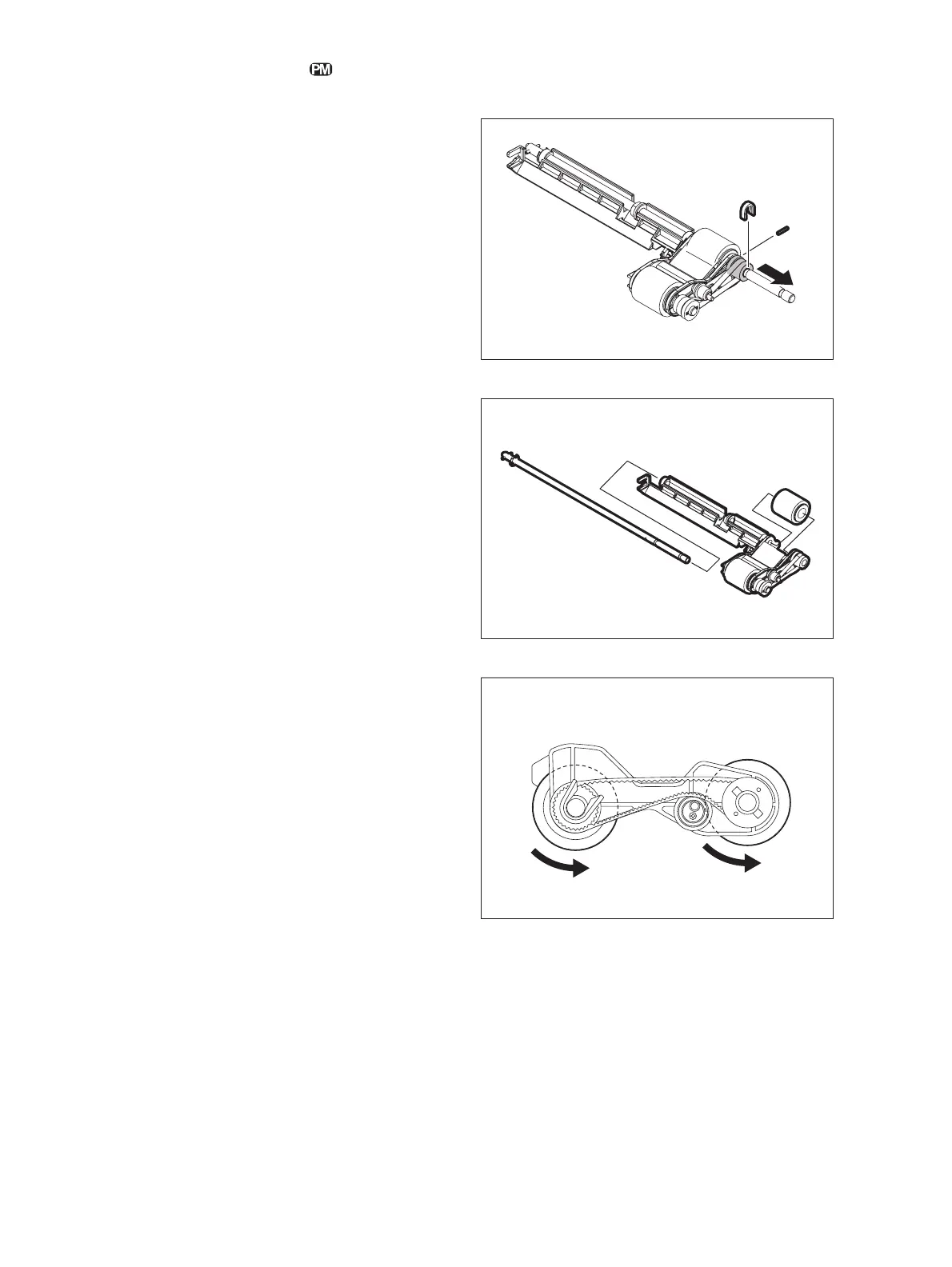

(2) Remove 1 clip. Then slide the pulley and
remove 1 pin.
Fig. 15-49
(3) Pull out the shaft and take off the feed roller.
Fig. 15-50
Note:
Make sure you assemble the pickup roller
with the one-way clutch in the correct
direction.
Fig. 15-51
Lock
Lock
