REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 27

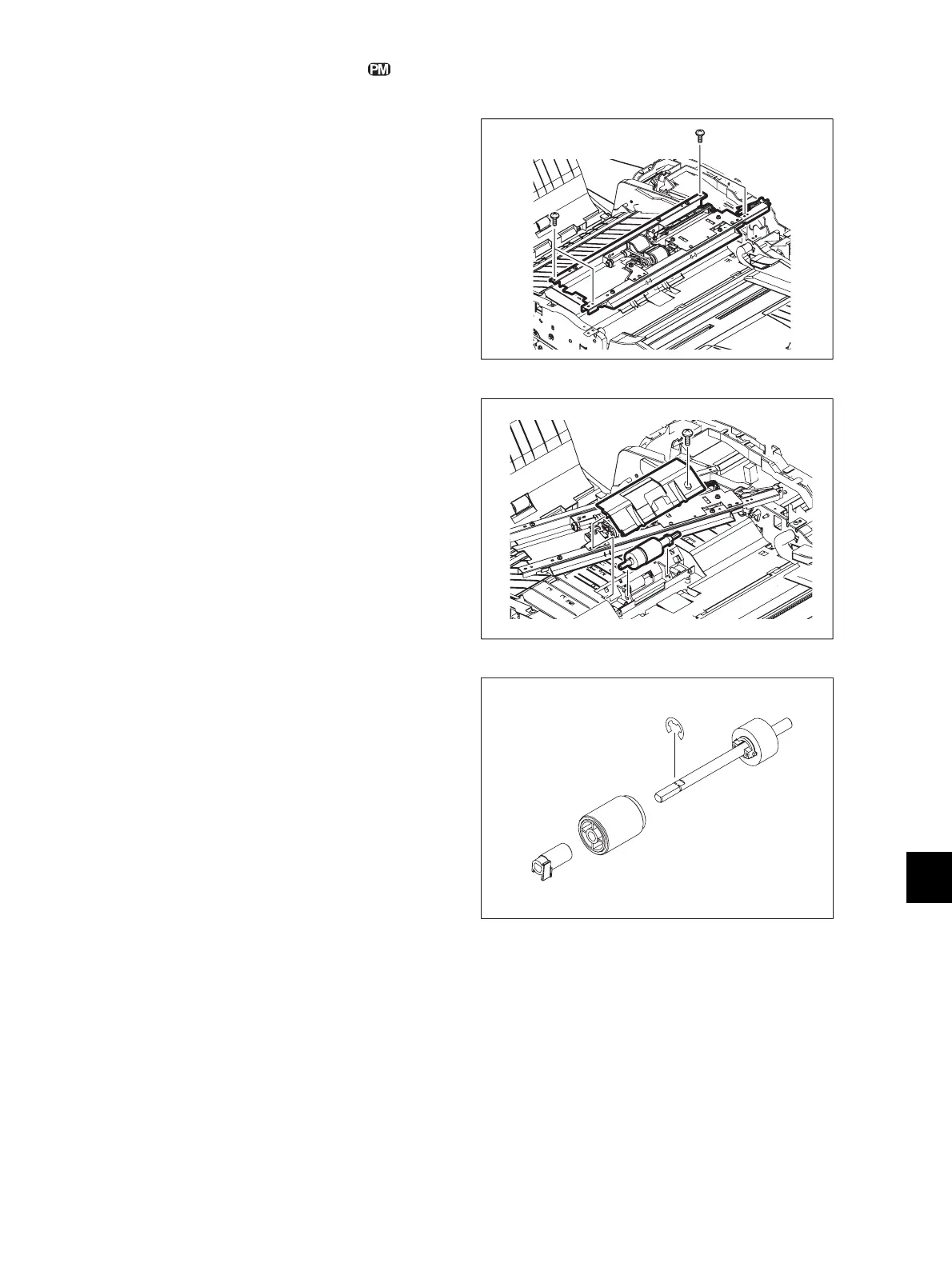

15.5.15 Separation roller
(1) Take off the RADF front cover.
 P.15-15 "15.5.2 RADF front cover"
(2) Take off the RADF rear cover.
 P.15-16 "15.5.3 RADF rear cover"
(3) Remove 4 screws and take off the feeder
upper guide unit.
Fig. 15-52
(4) Remove 1 screw and take off the separation
roller holder. Then take off the separation
roller unit.
Fig. 15-53
(5) Remove 1 E-ring and 1 bushing and then
take off the separation roller.
Fig. 15-54
