REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 34

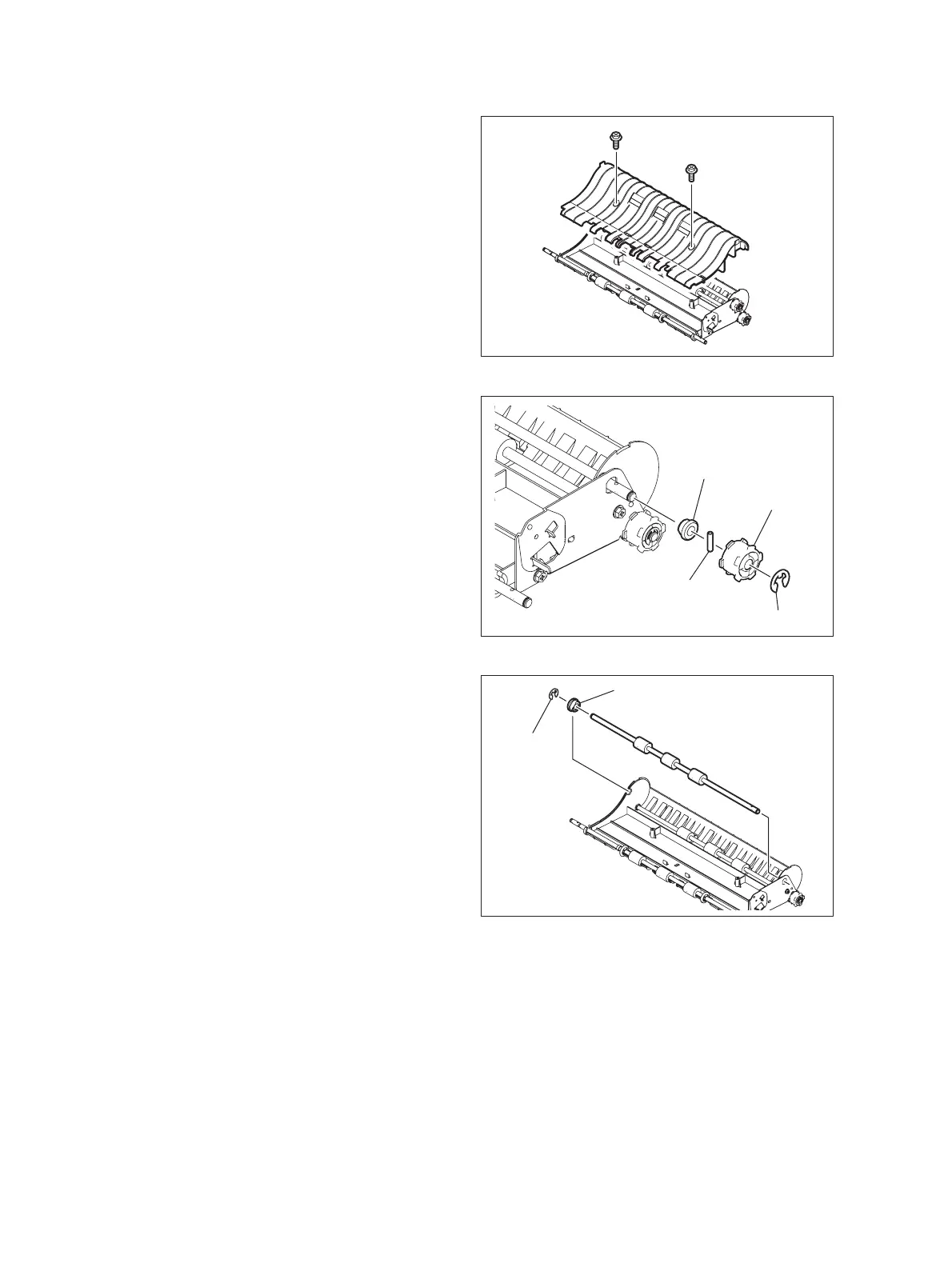

15.5.21 Exit/reverse roller
(1) Take off the exit/reverse guide.
 P.15-22 "15.5.11 Exit guide / Exit/reverse
guide / Reading end guide"
(2) Remove 2 screws and take off the guide.
Fig. 15-73
(3) Remove 1 E-ring, 1 pulley, 1 pin and 1
bushing.
Fig. 15-74
(4) Take off the exit/reverse roller, remove 1 E-
ring and 1 bushing.
Fig. 15-75
Bushing
Pulley
Pin
E-ring
Bushing
E-ring
