Toshiba e-studio555 - Original Tray Sensor (SR1)

e-STUDIO555/655/755/855 © 2009 - 2011 TOSHIBA TEC CORPORATION All rights reserved
REVERSING AUTOMATIC DOCUMENT FEEDER (RADF)
15 - 52

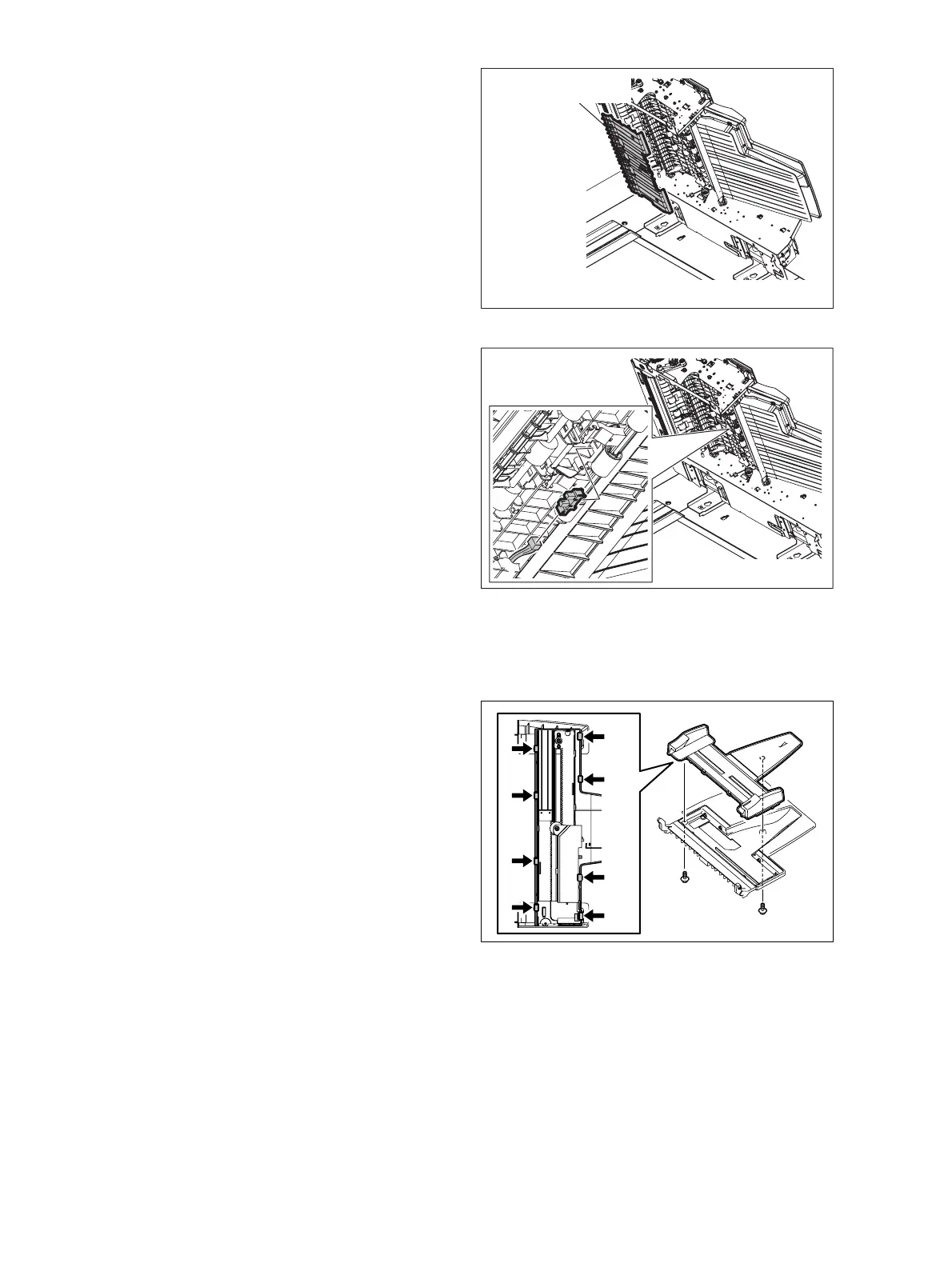

15.5.45 Original tray sensor (SR1)
(3) Remove 3 screws and take off the upper
reverse guide.
Fig. 15-126
(4) Disconnect 1 connector. Release 2 latches
and take off the original exit sensor.
Fig. 15-127
(1) Take off the original reverse tray.
 P.15-19 "15.5.7 Original reverse tray"
(2) Remove 2 screws and release 8 latches to
take off the original side guide unit.
Fig. 15-128
Upper reverse guide
