6F2S1914 (0.49)

GRL200 (Soft 033 & 037)

- 1528 -

218

256.3

229.3

265.9

260.7

190.5

255

242

256.3

229.3

(64.4)

260.7

214

Unit: mm

† The (64.4) means the height of

the tallest ring type terminal.

1/2 size case & ring terminals

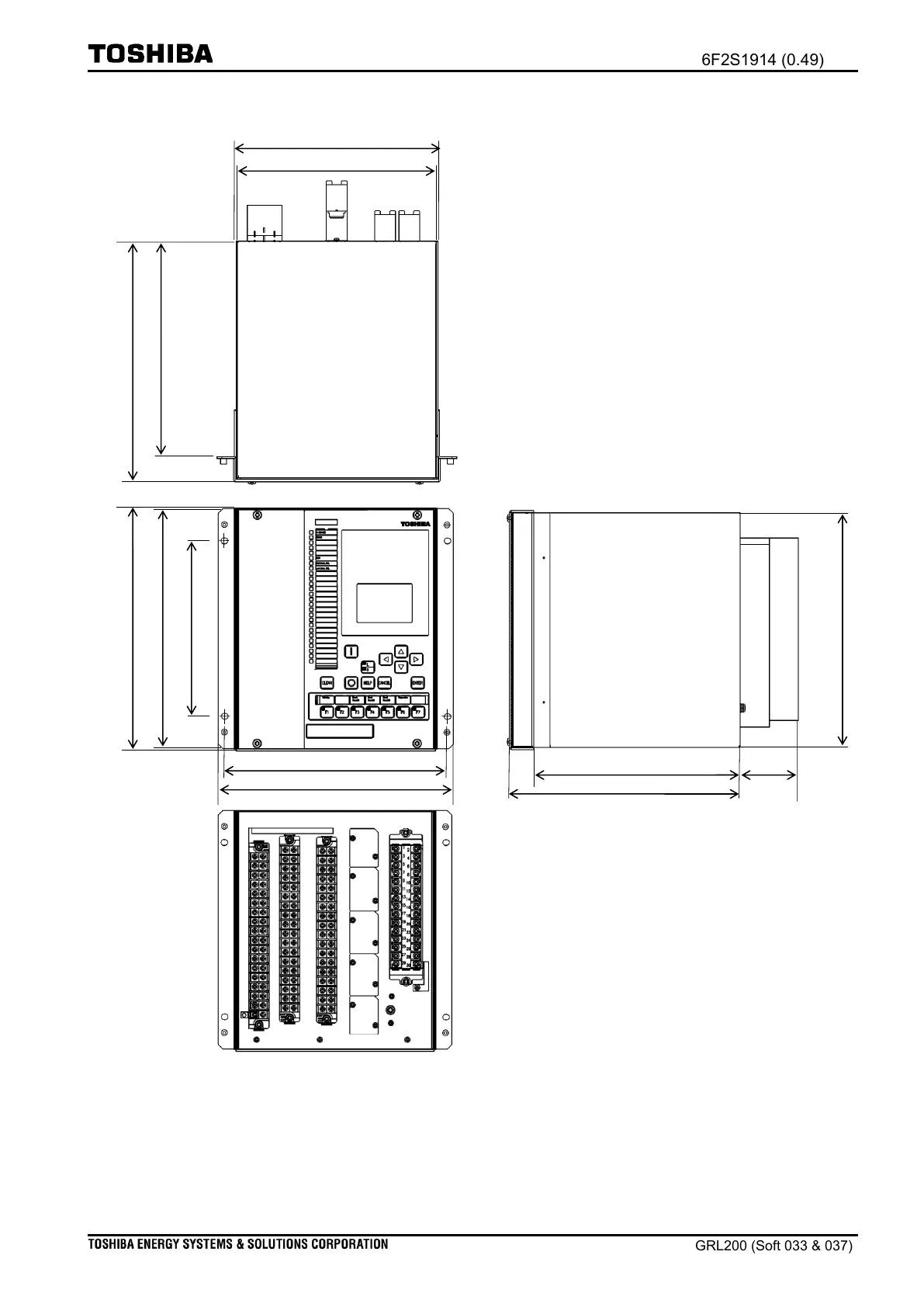

Figure 2-2.3 Trihedral figure (1/2 size case) & Type using ring terminals
