(xi) Shot2 to Shot5 for CB#1 –settings (TD_MS2, TRR2 and others)
The ARC1 logic for shot 2-shot5 is illustrated in Figure 2.34-21. Shots 2-5 are applicable for a
CB#1 only. For example, two shots (Shot2 and Shot3, i.e., [ARC_NUM]=S3) are required
following the Shot1, the user should set the [TS_MS2]/[TS_MS3] and [TRR2]/[TRR3]. The user
should program to inject a permission signal for the Shot2 and Shot3 at PLC connection points
‘ARC1-S2 COND’ and ‘ARC1-S3 COND’, as shown in Figure 2.34-21. Note that the CB will be
tripped in three-phases forcibly even if a GEN.TRIP-A (TRIP COMMAND-A) signal is only
generated, because the ‘CB1_BRIDGE’ signal is generated during the Shot 2-Shot5.
8100011B67
ARC1 IN-PROG
Initiation
ARC1-S2 COND
810001EBC9
8100011B68
ARC1-S3 COND
810001EBCA
8100011B69
ARC1-S4 COND
810001EBCB
8100011B6A
ARC1-S5 COND
810001EBCC
&
S
R
SHOT_2ND
SHOT_3RD
SHOT_4TH
SHOT_5TH
Shot counter
&
S
R
&
S
R
&
S
R
ARC-NUM
Shot number
TD_MS2
t 0
0.01 – 300.00 s
&
TD_MS3
t 0
0.01 – 300.00 s
&
TD_MS4
t 0
0.01 – 300.00 s
&
TD_MS5
t 0
0.01 – 300.00 s
&
TRR2
t 0
0.01 – 310.00 s
TRR3
t 0
0.01 – 310.00 s
TRR 4
t 0
0.01 – 310.00 s
TRR 5
t 0
0.01 – 310.00 s
ARC1 SHOT2
ARC1-S2 TRR
CB1_94TT
To TRC
ARC1-S3 TRR
ARC1-S4 TRR
ARC1-S5 TRR
8200011B68
ARC1 FT
CB1_94TT
CB1_94TT
CB1_94TT
8100011B67
8300011B69
8400011B6A
ARC1 SHOT3
ARC1 SHOT4
ARC1 SHOT5
Issuing
Done issuing ARC1 SHOT2
Done issuing ARC1 SHOT3
Done issuing ARC1 SHOT4
Done issuing ARC1 SHOT5
A
B
C
D
A
B
C
D
Shot2–Shot5 for CB#1
ARC1-S2
IN-PROG
ARC1-S3
IN-PROG
ARC1-S4
IN-PROG
ARC1-S5
IN-PROG
ARC1 FT
ARC1 FT
ARC1 FT
1
CB1_BRIDGE
8800011B62

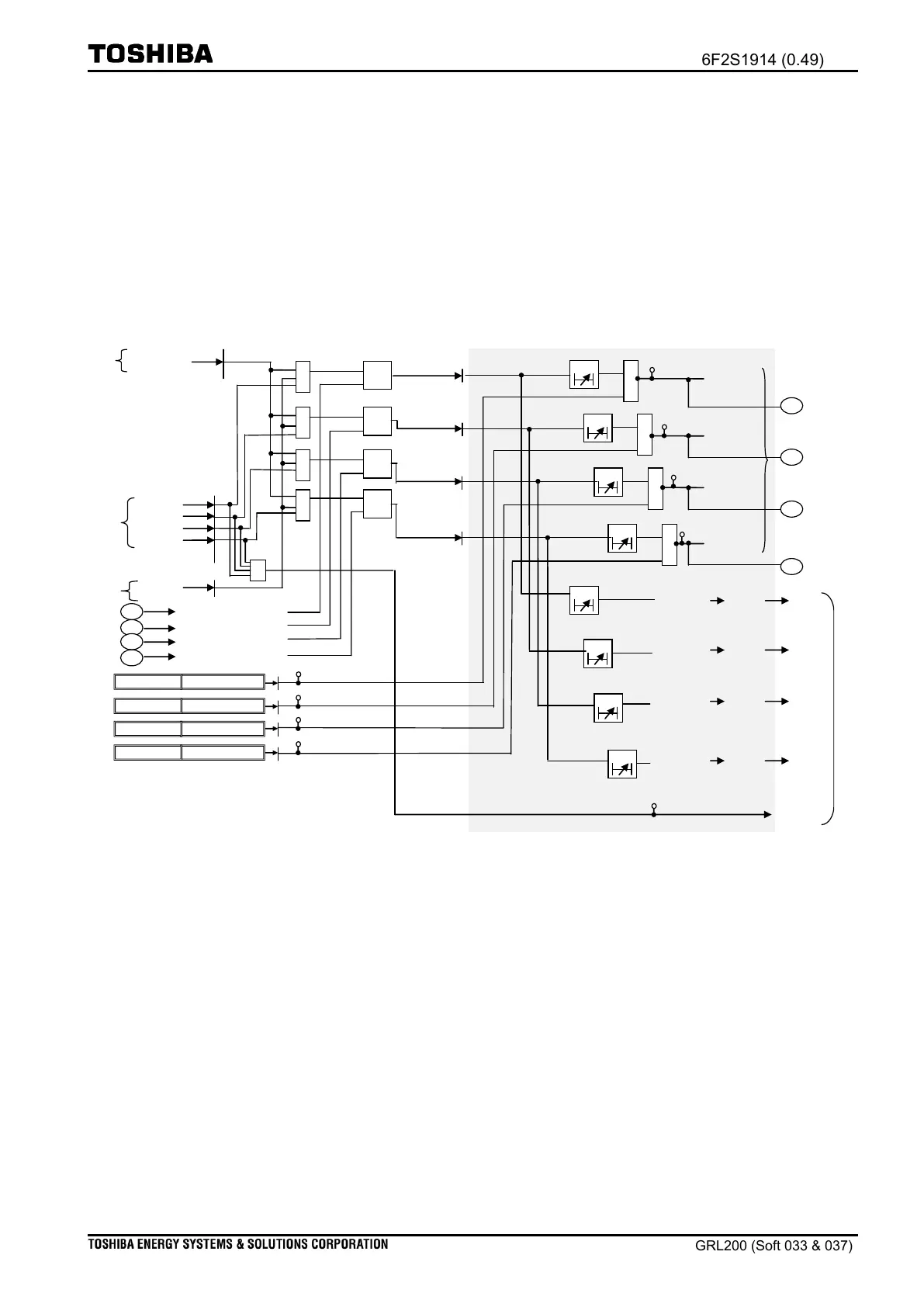

Figure 2.34-21 ARC1 logic for Shot2 to Shot5
