DPSY01 function (Function ID: 511001)
DPSY01_OSL_BO_FLG”
(511001 8602011DC6)
DEV01_CONTROL_REQ
Command “Remote-Closing Control”
ILK† condition (“Closeing”) passed
Either “SBO mode” or “DIR mode”
(e.g., “ctlmodel” in IEC61850*)
Select “Failed”
511001 7002016D08
DPSY01-Close
To BO connection
Input
Output
Selection logic in DPSY01
0.1s
0
t
0.6s
0
t
&
&
Select “Closing”
“Automatic sequence control function (ASEQ)§” in progress
ASEQ_MULTI_SEL
Select command with ILK†
condition & synchro-check‡‡
Operate command with ILK†
condition & synchro-check‡‡
For SBO operation
For DIR operation
To “Wait for a command”
0.0 to 5.0 s
t
0
1≥
&
Voltage condition
Select command with
synchro-check‡‡
Operate command with
synchro-check‡‡
For SBO operation
For DIR operation
&
&
Select command with ILK†
condition
Operate command with ILK†
condition
For SBO operation
For DIR operation
&
&
&
&
Select command without condition
Operate command without
condition
For SBO operation
For DIR operation
In SBO operate
In DIR operate
Select condition‡
Timer§§
From SYNCHK
SYNC01-SLD_VCS‡‡
(560001 840B011F58)
To “Wait for a next
command”

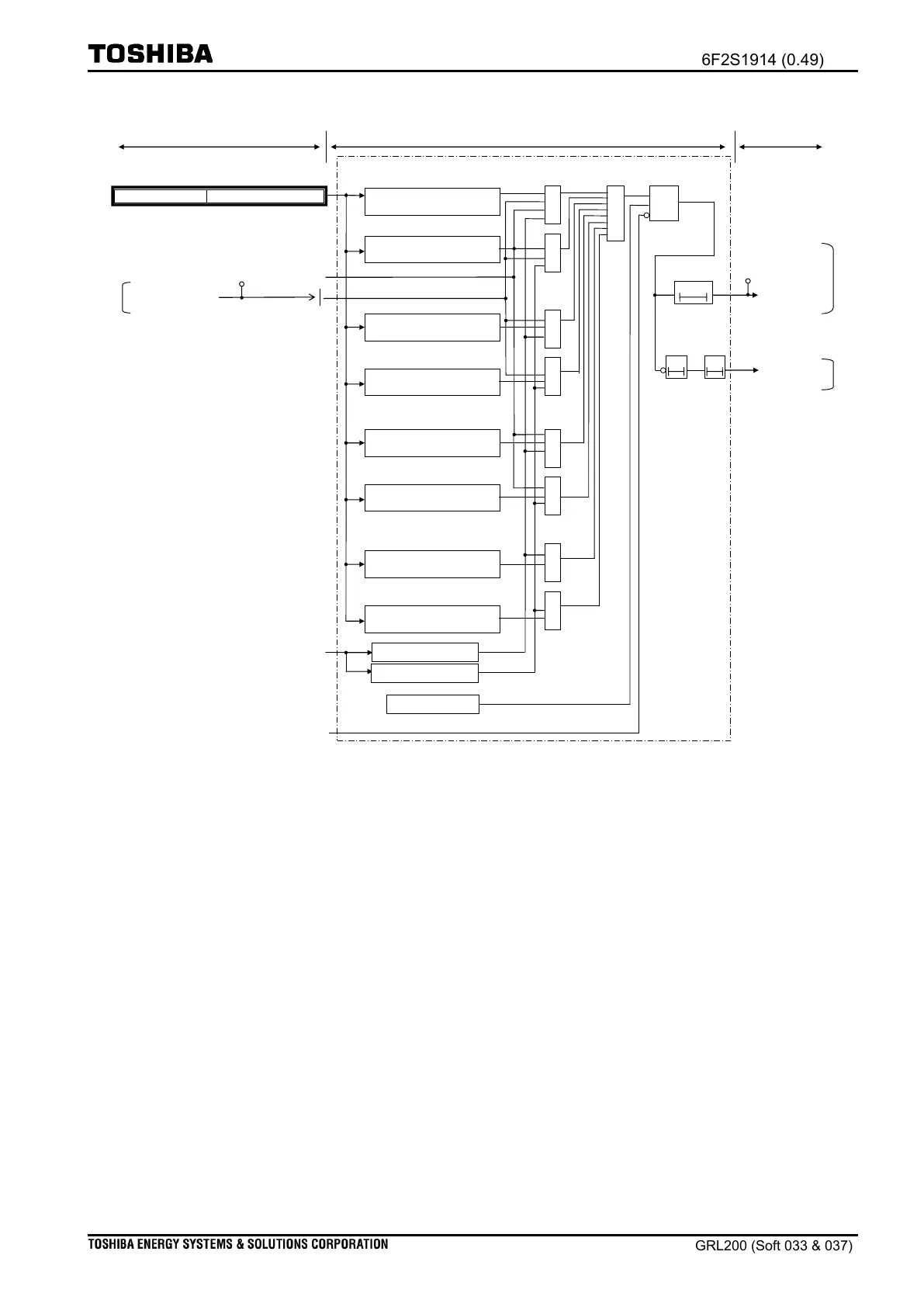

Figure 4.2-2 Select logic ‘Closing’ from the remote-end in DPSY01
††
†Note: The Software interlocking (ILK) function can provide the operation criteria for
“Closing”. The ILK function is discussed separately; note that the operation
criteria is defined by the ILK function itself (i.e., the user cannot set the
condition).
‡Note: A “select condition” signal is provided from the select condition scheme. For more
information, see Figure 4.2-13.
§Note: An Automatic sequence control (ASEQ) function can provide sequential signals for
automatic control. The DPSY01 operation is blocked for the ASEQ function being
in operation. For more information of the ASEQ function, see Chapter Control and
monitoring application: Automatic sequence control function .
*Note: The DPSY01 function can run in either the “SBO mode” or the “DIR mode”. The
user can use a signal called “ctlmodel” when communication is implemented using
IEC61850. To use this signal, the user must map it for IEC61850 communication.
††
Note: To identify the input and output points of the DPSY02 logic, see Table 4.2-6 and
Table 4.2-10.
