it is in operation. For more information of the ASEQ function, see Chapter Control
and monitoring application: Automatic sequence control function .
††
Note: To know the input and output points of the DPSY02 logic, see Table 4.2-6 and
Table 4.2-10.
Output signal to BO
The DPSY01 function, in Figure 4.2-4, can issue a “Select success” signal at the output point
“DPSY01_FSL_BO_FLG” when the DPSY01 function determines that the “Selection command
Open (Remote-Open-Control)” signal is true. If the DPSY01 function determines that the
“Remote-Open-Control” signal is not true, the DPSY01 function returns to the “Wait for a
command” stage.
(iii) Receiving “Select command Closing” from the local-end

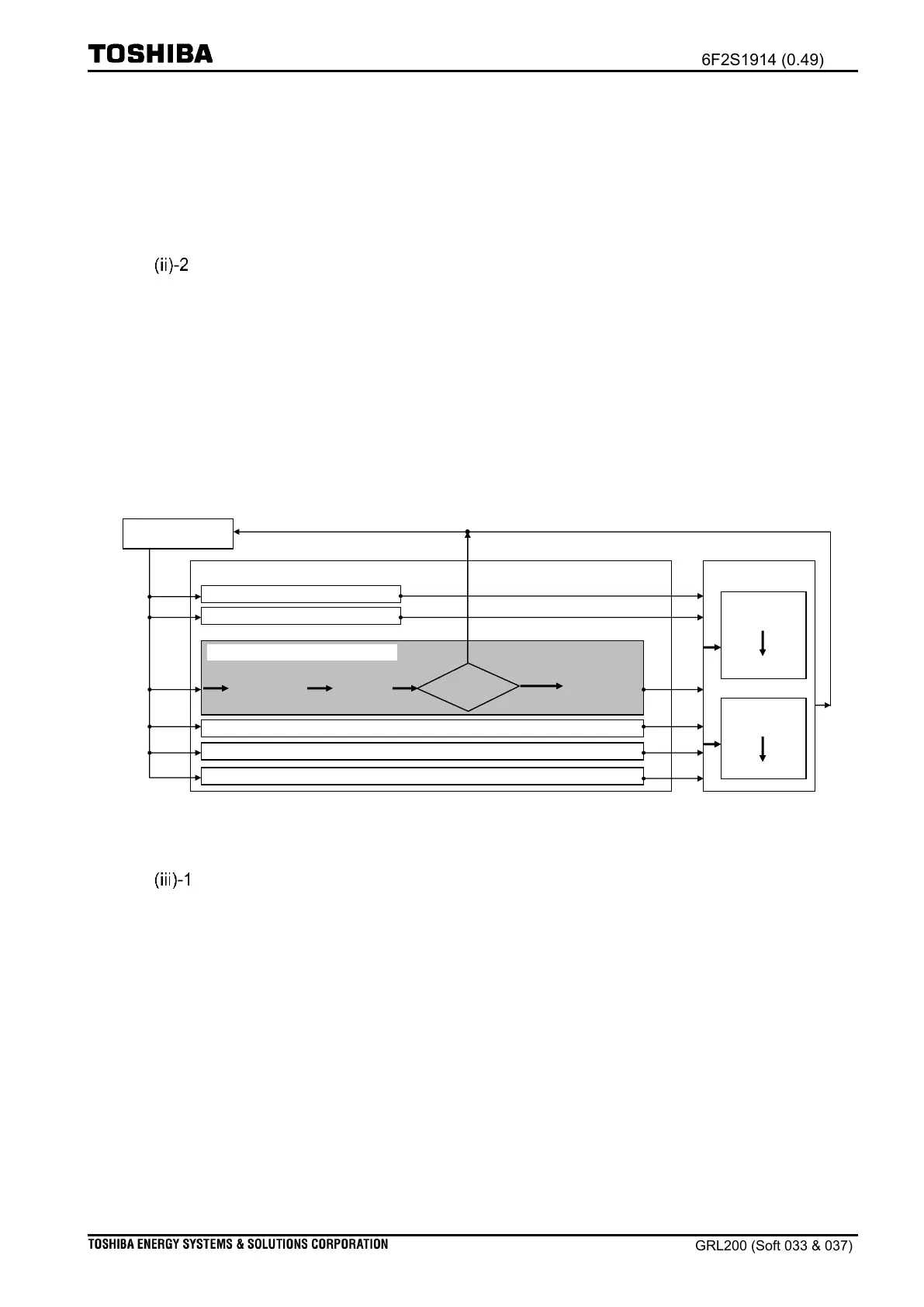

Figure 4.2-5 outlines the reception of the select command ‘Closing’ from the local-end.
Signal reception
from the front panel
Select command Closing from the local-end
Signal output
Select
decision
Success
Failed
Select logic
Select stage
Cancel logic
Wait for a next command
Cancel command
Wait for a command
Operate logic
Operate command
Cancel logic
Operate logic
Select command Open from the remote-end
Select command Open from the local-end
Select command Closing by the PLC function
Select command Open by the PLC function
Select command Closing from the remote-end
Figure 4.2-5 Outline of select command for ‘Closing’
Input signal generated at the local-end
Figure 4.2-6 shows the select logic when a “Select command Closing (Local-Closing-Control)”
signal is applied to the DPSY01 function. The signal is provided when a “Selection for Closing”
key is pressed on the IED front panel; the user is not required to map the signal from the
IEC61850 communication. Note that the user should set the scheme switch [DPSY01-
CTRAHMI] to SBO when operation from the IED front panel is required, we discuss how to set
this in chapter User interface: Control sub-menu .
