Toshiba M5 Maintenance Manual

4.10 Display assembly 4 Replacement Procedures
4 R eplacement Procedures
4.10 Display assembly
Removing the Display assembly
To remove the display assembly, follow the steps below and refer to Figure 4-17 to 4-20.
1. Turn the computer face down and remove the following screws on the bottom.
• M2.5×4B FLAT HEAD screw ×1 (“4B” in the figure below)
• M2.5×6B FLAT HEAD screw ×6 (“6” in the figure below)
• M2.5×16B FLAT HEAD screw ×7 (“16” in the figure below)
• M2×4S S-THIN HEAD screw ×1 (“4S” in the figure below)
16
6
6
6
4B
6
6
16
16
16
16
16
16
4S
6

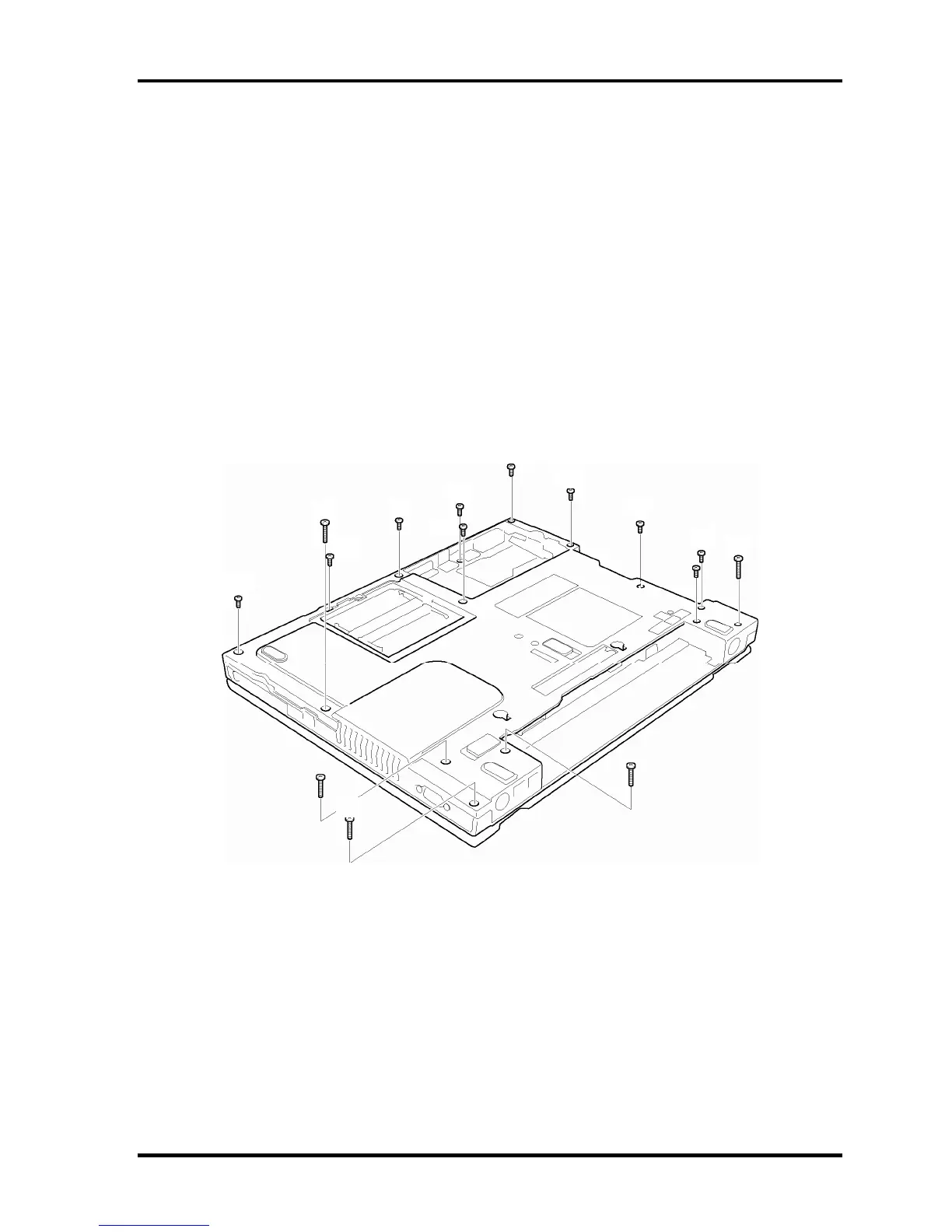

Figure 4-17 Removing the display assembly (1)
TECRA M5 Maintenance Manual (960-542) [CONFIDENTIAL] 4-29
