– 283 –
Outdoor Unit
MMY-MAP1204∗
MMY-MAP1004∗
MMY-MAP0804∗
MMY-MAP1404∗
MMY-MAP1604∗
Inverter P.C. board
for fan
[Fan IPDU]
(MCC-1610)
Inverter P.C. Board for
Compressor 1
[A3 IPDU]
(MCC-1596)
Inverter P.C. Board for
Compressor 2
[A3 IPDU]
(MCC-1596)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Communication terminal block
Magnet switch
Inverter P.C. board for fan
[Fan IPDU]
(MCC-1610)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Communication
terminal block
Magnet switch
Inverter P.C. board
for Compressor 1
(MCC-1596)
Inverter P.C. board
for Compressor 2
(MCC-1596)
Inverter P.C. board
for Compressor 3
(MCC-1596)
Part code Description Applicable model P.C. board type code Product code
43T6V373
Interface P.C. board
MCC-1606 ASM-PCB(I/F)
43T6V492*
1
43T6V374 Comp-IPDU P.C. board MCC-1596 ASM-PCB(A3IPDU)
43T6V371 Fan IPDU P.C. board MCC-1610 ASM-PCB(FANIPDU)
43T6V372 Noise filter P.C. board MCC-1608-A,B ASM-PCB(N/F)
*1
For -E, -TR model
MMY-MAP0804
MMY-MAP1004
MMY-MAP1204
MMY-MAP1404
MMY-MAP1604
13-2. Replacement of Outdoor P.C. Boards
13-2-1. List of service P.C. boards

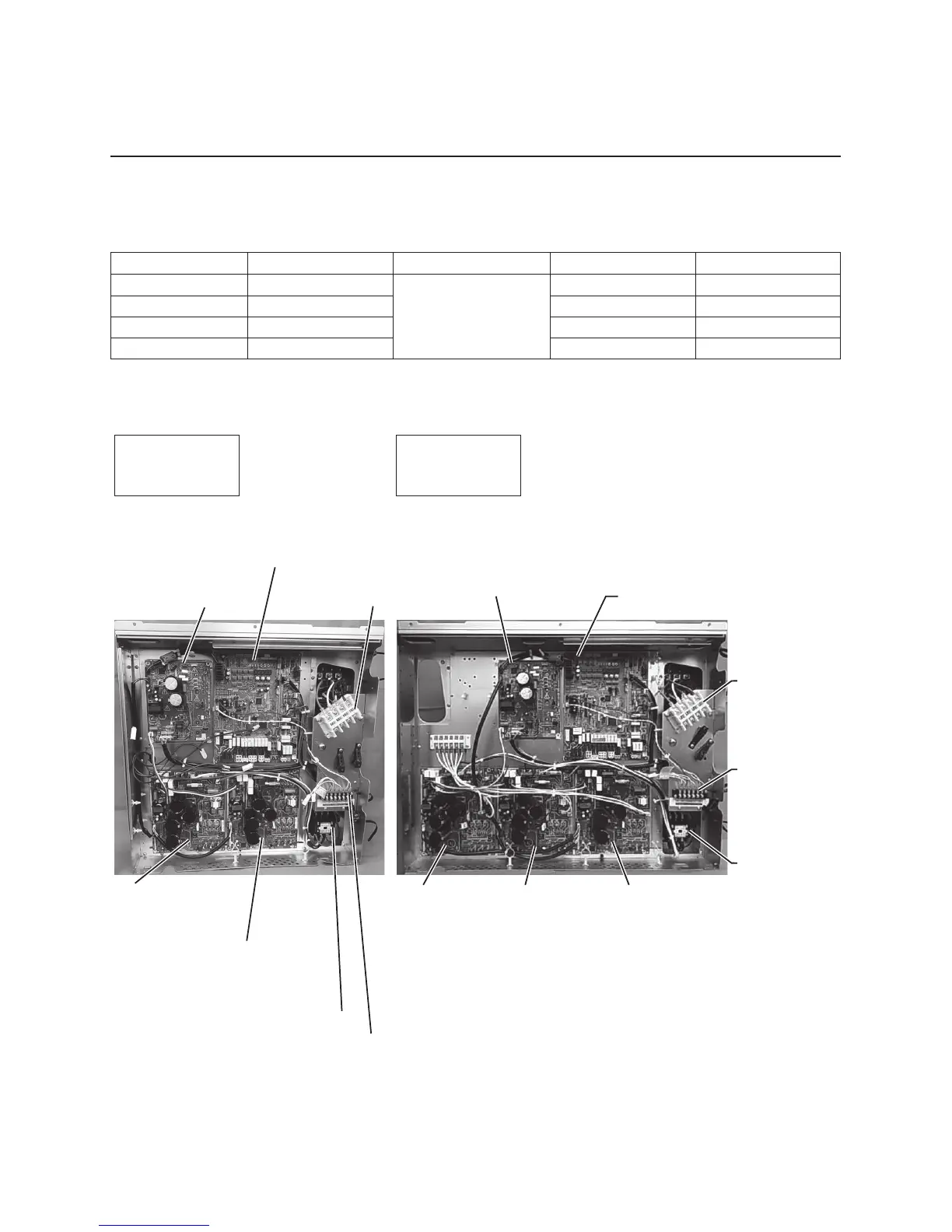

13-2-2. Configuration of inverter assembly
