10. INSTALLATION PROCEDURE

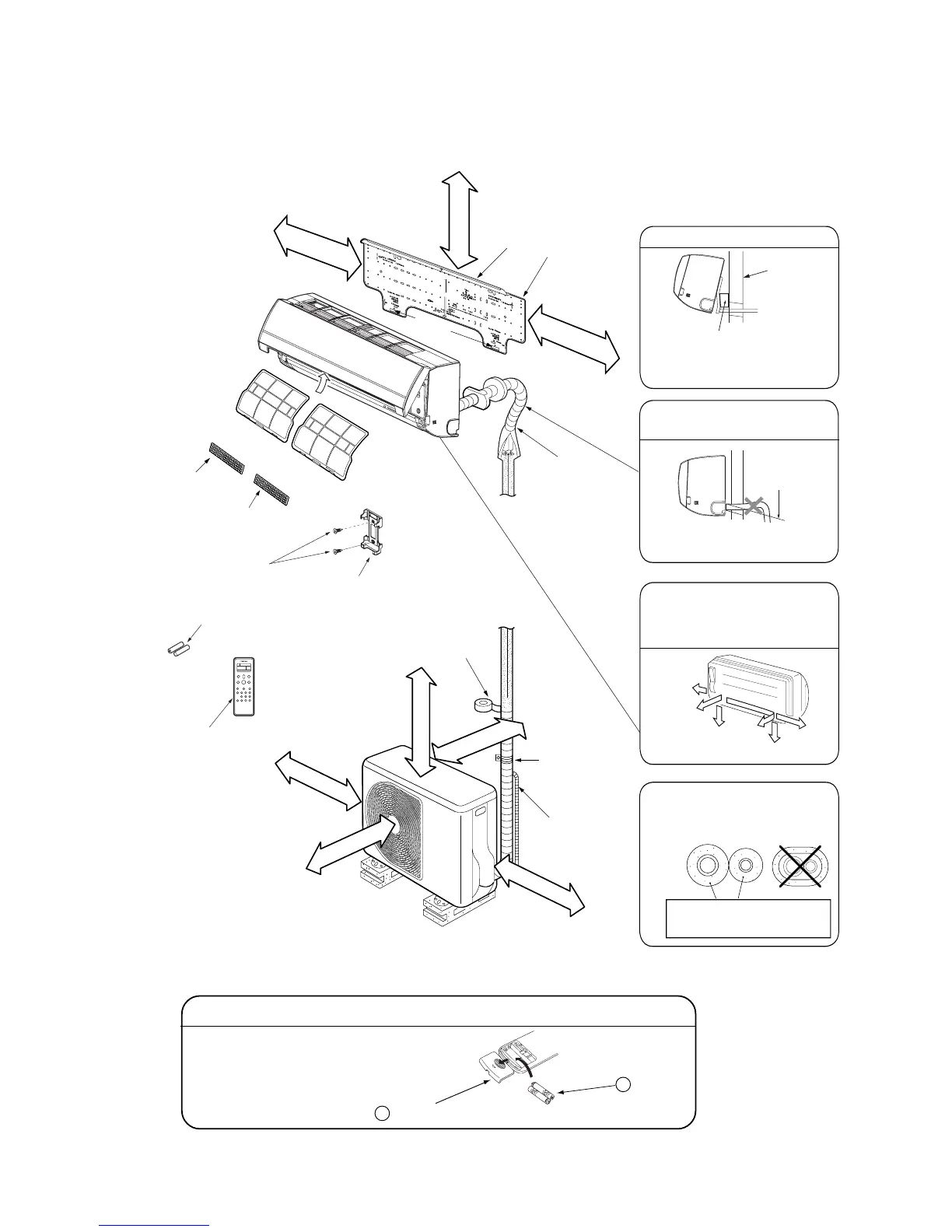

10-1. Installation Diagram of Indoor and Outdoor Units
FILE NO. SVM-10017
(Attach to the front panel)
…
†
•
Active carbon
catechin
Active carbon
catechin
or bottom left.
Insulate the refrigerant pipes
separately with insulation, not
together.
Insert the cushion between the
indoor unit and wall, and tilt the
indoor unit for better operation.
For the rear left and left piping
Make sure to run the drain hose
sloped downward.
Do not allow the drain hose to
get slack.
The auxiliary piping can be
connected to the left, rear left,
rear right, right,bottom right
Right
Rear
right
Bottom
right
Rear
left
Bottom left
Left
6 mm thick heat resisting
polyethylene foam
Vinyl tape
Apply after carrying
out a drainage test.
Saddle
Extension
drain hose
(Not available,
provided by installer)
Shield pipe
Hook
Installation
plate
H
o
o
k
65 mm or more
170 mm or more
170 mm or more
600 mm or more
100 mm or more
45 mm
or more
400 mm o
r more
600 mm or more
– 44 –
Wall
Cut the piping
hole sloped
slightly.
Pan head
wood screw
Remote control holder
Wireless remote control
Batteries
Before installing the wireless remote controller
• Loading Batteries
1. Remove the battery cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (
−
) positions.
3 Batteries
2 Wireless remote controller
A
C
L
ˆ
„
„
‚
A
i
r
f
i
l
t
e
r
To Next Page
