FILE NO. SVM-04022
– 41 –
Part
Code
A
B
C
8-3.Installation
8-3-1. Optional installation parts

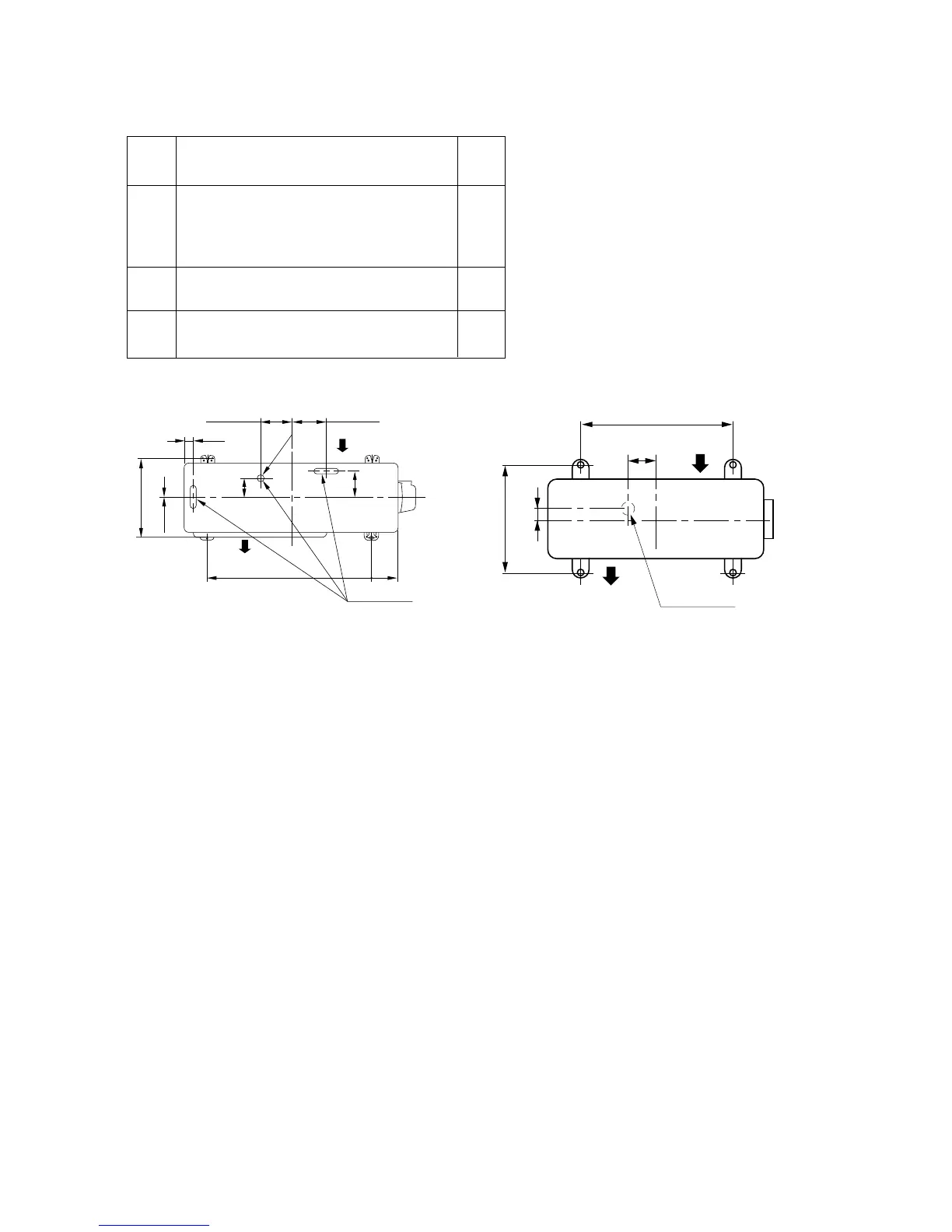

<Fixing bolt arrangement of outdoor unit>
Fig. 8-3-1
• Secure the outdoor unit with fixing bolts and nuts if the unit is likely to be exposed to a strong wind.
• Use ∅8 mm or ∅10 mm anchor bolts and nuts.
Air inlet
Air outlet
Drain outlet
600 mm
90 mm
125 mm115 mm
32.5 mm
73 mm
102 mm
310 mm
7 mm
∅
30
Q’ty
One
each
1
One
each
Parts name
Refrigerant piping
Liquid side : ∅6.35 mm
Gas side : ∅9.52 mm (07, 10 series)
Gas side : ∅12.70 mm (13 series)
Pipe insulating material
(polyethylene foam, 6 mm thick)
Putty, PVC tapes
RAS-07 Series
Air inlet
Drain outlet
Air outlet
500 mm
97 mm
60 mm
275 mm
RAS-10, 13 Series
