– 74 –
FILE NO. SVM-04008

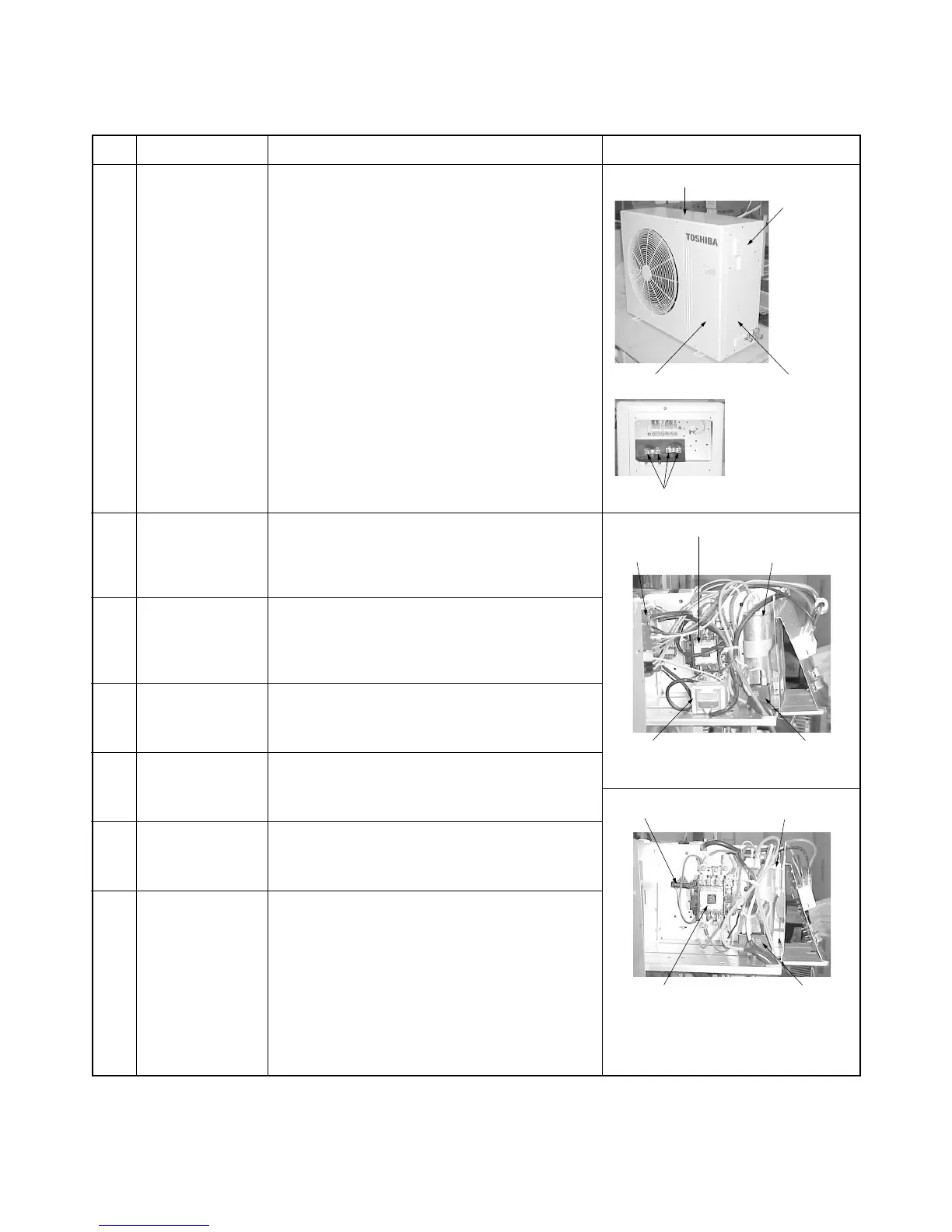

10-2. Outdoor Unit (RAS-24UAH-E3, RAS-24UA-E3, RAS-24UAX3, RAS-24UA-AR3,
RAS-24UAX3-T, RAS-18UAX3-T2)
1) Stop the operation of the air conditioner and turn off
its main power supply or remove the power supply
cord.
2) Remove the electrical parts cover.
(4 screws ∅4 x 10L)
3) Remove 2 cord clamps (4 screws ∅4 x 22L) and
disconnect the power supply cord and connecting
cable after removing 6 screwson on the terminal
block and 1 ground screw on the electrical parts
base.
4) Remove the top cabinet. (7 screws ∅4 x 10L)
5) Remove the front cabinet. (2 screws ∅4 x 10L)
6) Remove the side cabinet
(4 screws ∅4 x 10L & 2 screws ∅4 x 14L)
1) Perform the common procedure 1
2) Remove the capacitor band. (1 screw ∅4 x 10L)
3) Disconnect the lead wires from the capacitor
terminal.
1) Perform the common procedure 1
2) Remove the fixing screw. (1 screw ∅4 x 10L)
3) Disconnect the lead wires from the capacitor
terminal.
1) Perform the common procedure 1
2) Remove the fixing screw. (2 screws ∅4 x 10L)
3) Disconnect the lead wires from the terminal.
1) Perform the common procedure 1
2) Remove the fixing screw. (2 screws ∅4 x 10L)
3) Disconnect the housing from the P.C. Board.
1) Perform the common procedure 1
2) Disconnect the lead wires from the P.C. Board.
3) Remove P.C.Board after unhooking 4 clams.
1) Perform the common procedure 1
2) Remove the fixing screw. (1 screw ∅4 x 10L)
3) Disconnect the lead wires from the terminal.
1 Common
procedure
2 Running
capacitor
for compressor
3 Running
capacitor
for fan motor
4 Magnetic
contactor
5 Transformer
(Heat pump model)
6 P.C. Board
(Heat pump model)
7 Spark killer
(Cooling only model)
No. Part name Procedures Remarks
Front cabinet Side cabinet
Top cabinet
Electrical
parts cover
4 screws ∅4 x 22L
P.C. Board
Running capacitor
for compressor
Magnetic contactor
Running capacitor
for fan motor
Transformer
Heat pump model
Spark killer
Running capacitor
for compressor
Running capacitor
for fan motor
Magnetic contactor
Cooling only model
To Next Page
