1: Connect the recorder.
1
Disconnect the aerial cable from your TV, and connect it to the RF IN (FROM ANT.)
terminal on the recorder.
2
Using the coaxial cable (supplied), connect the RF OUT (TO TV) terminal to the TV.
3
Connect the AV1(AUDIO/VIDEO)IN/OUT socket to a TV equipped with SCART input
using the SCART cable.
4
Connect the power plug of the recorder to a wall outlet.
Turning the power on
Press ON/STANDBY.
When the recorder is turned on for the first
time, recorder automatically sets its own tuner
and clock. See the next page.
When the power is turned on, the ON/STANDBY
indicator changes colour from red (standby mode)
to green (operation).
After a few seconds, a startup screen appears.
The following icon will appear on the top right
corner of the screen.
When this icon disappears, the recorder is ready to
operate.
Turning the power off
Press ON/STANDBY.
3
1
2

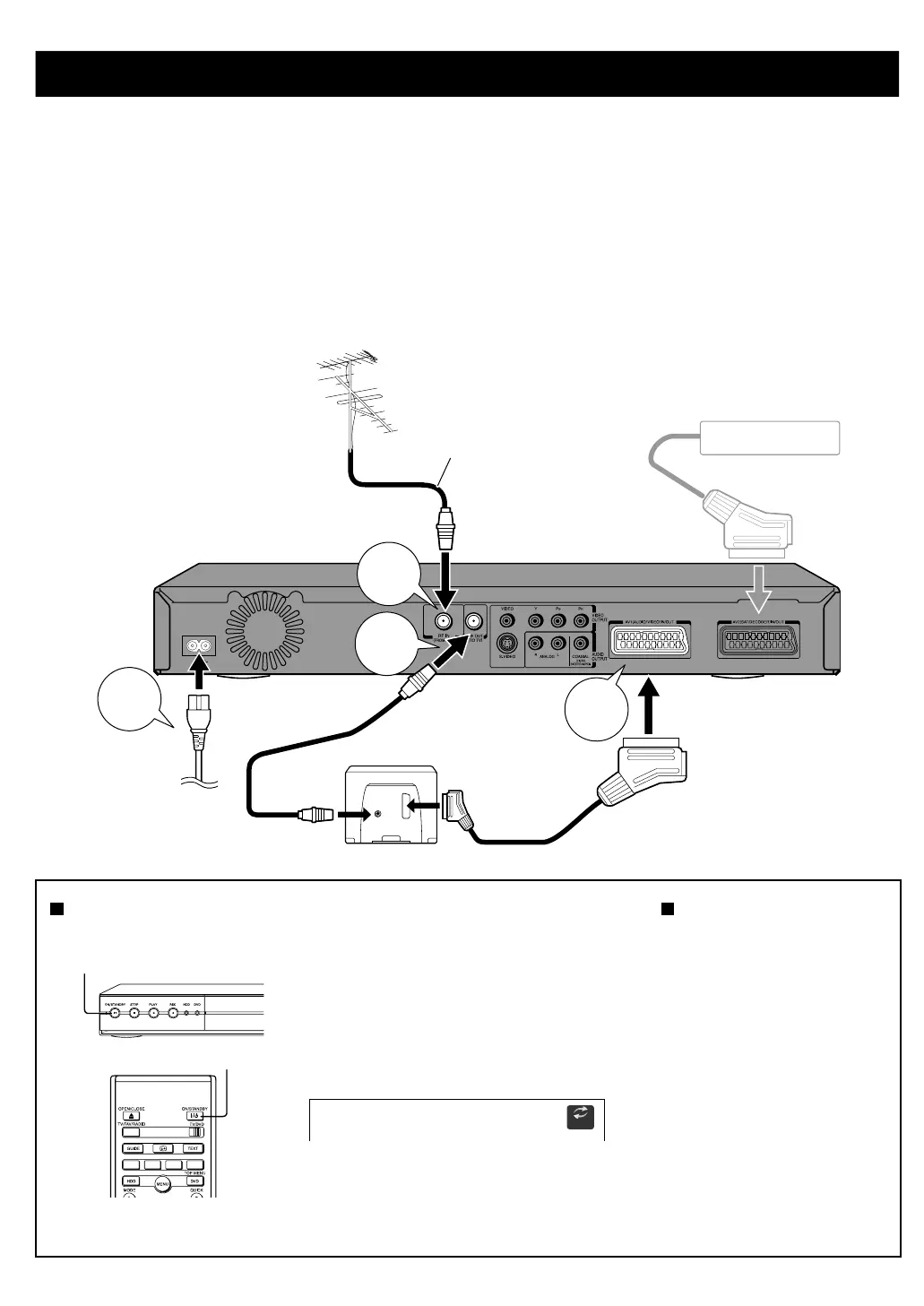

To SCART input
Satellite receiver
To aerial input
To AV 1
(AUDIO/VIDEO)
IN/OUT
If you use a satellite receiver,
connect it to the AV2(SAT/
DECODER)IN/OUT socket.
Aerial cable
(Not supplied)
TV
To wall outlet
4
SCART cable
(not supplied)
Coaxial cable
(supplied)
Power cord
Loading
e.g.
ON/STANDBY button
ON/STANDBY button
