4.22 Display Mask 4 Replacement Procedures
4.22 Display Mask
4.22.1 Open Display Mask
Removing the Display Mask
Disassemble the ODD drive according to the following procedures and Figure 4-36.
1. Peel off six seal tapes and remove six M2.5x7 black flat head screws securing the
display mask.
2. Insert your finger between the edge of display mask and the LCD and remove the
display mask while unlatching the display mask.
M2 5x7 black flat head screw.
Seal
Display mask
Seal
Seal

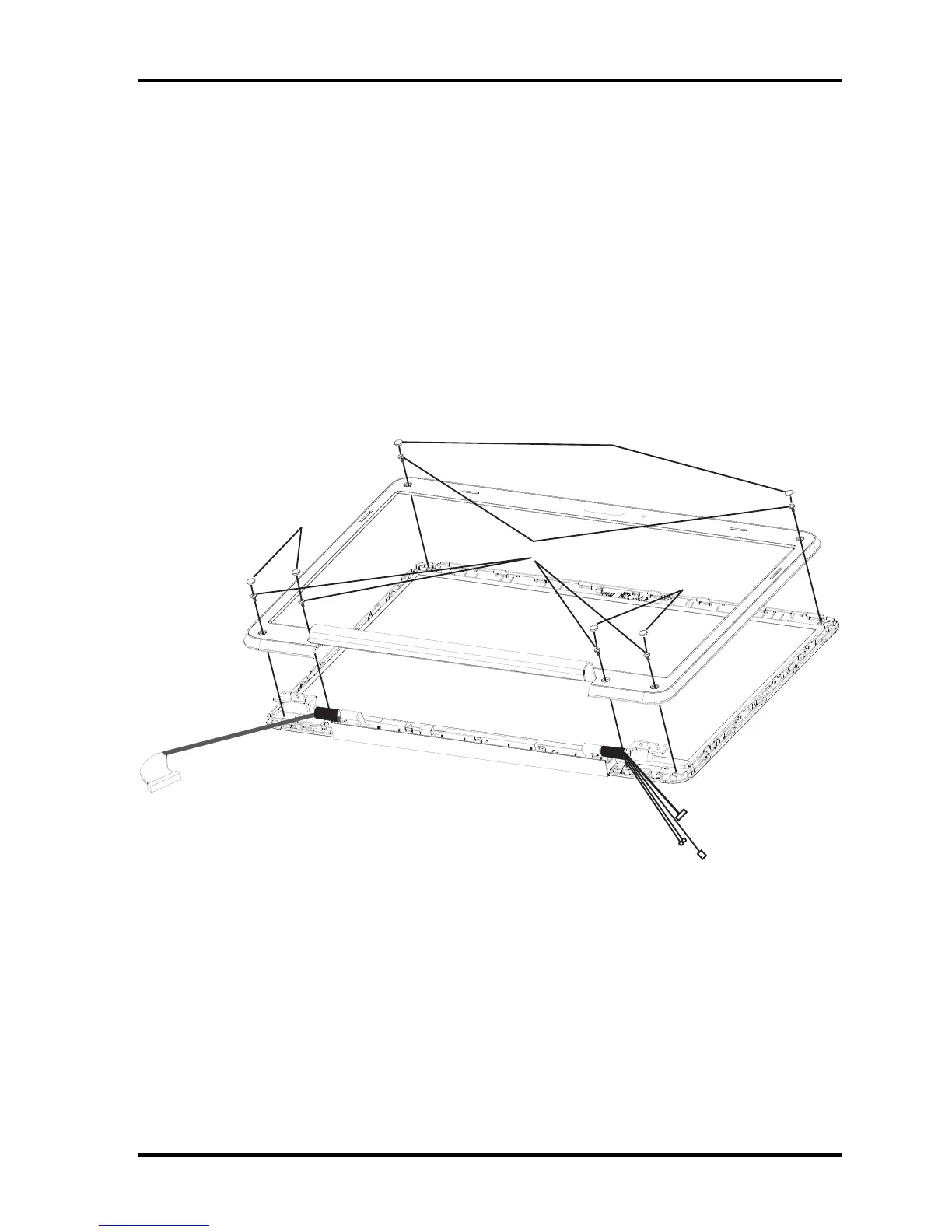

Figure 4-36 Removing the display mask
Satellite/Satellite Pro/A500/A505/A507/dynabook Maintenance Manual 4-59
