Replacement Procedures
4-34 Satellite P100 Maintenance Manual (960-Q02)
4.12 Cover assembly
Removing the cover assembly
The following describes the procedure for removing the cover assembly (See Figure 4-19 to
4-21).
1. Turn over the computer.
2. Remove the following screws securing the cover assembly from the back and bottom
of computer.
• M2.5×6.0 FLAT BIND screw Front x3
• M2.5×6.0B FLAT BIND screw Back x18
• M2.5x4.0 FLAT BIND screw x1

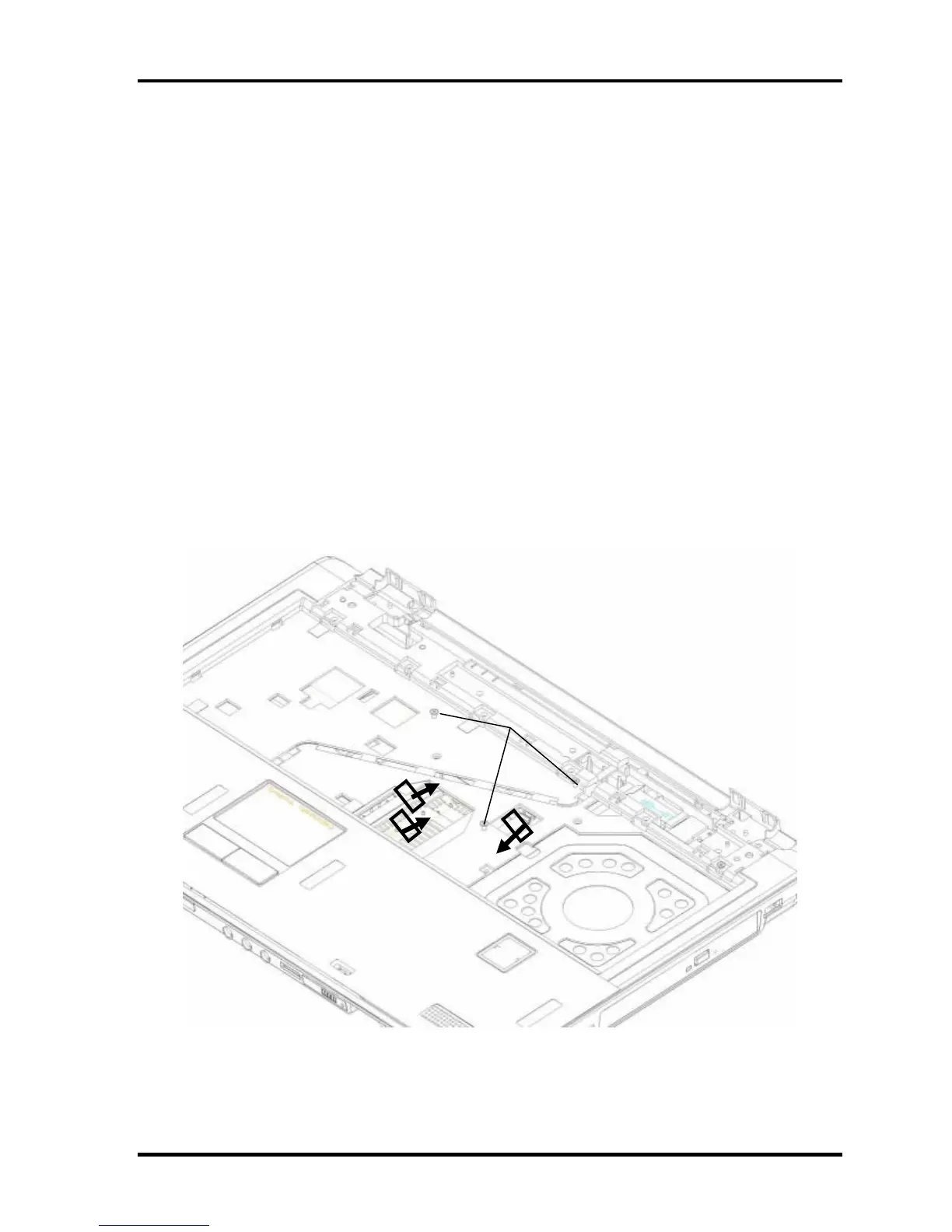

Figure 4-19 Removing the screws cable from connect (front)
Front 2.5*6 x3
Top LENS
Touchpad FFC
Fingerprint
To Next Page
