DYNA-KIT
Owner’s Manual
–8–
Toshiba

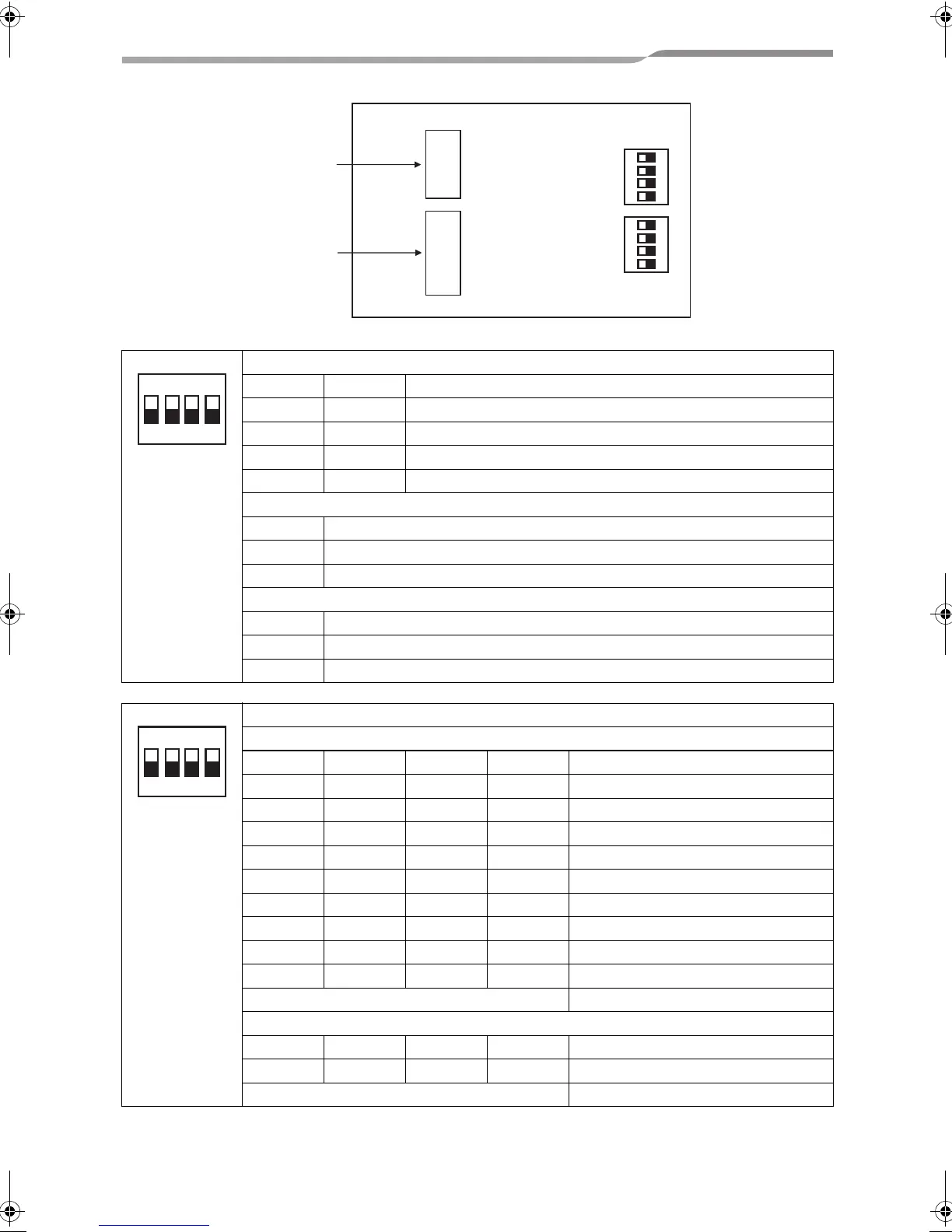

[SW1] Operation mode
DIP switch 1 DIP switch 2
OFF OFF General mode
OFF ON Reserved (Test mode 1)
ON OFF Reserved
ON ON Reserved
[SW1] Communication method with air conditioner unit
DIP switch 3
OFF Serial communication
ON Parallel communication
[SW1] Communication method with PC
DIP switch 4
OFF USB
ON RS-232C
[SW2] Communication baud rate
Serial communication (SW1 DIP switch 3 : OFF)
DIP switch 1 DIP switch 2 DIP switch 3 DIP switch 4
OFF OFF OFF OFF Automatic judgment
OFF OFF OFF ON Reserved (2.4k bps)
OFF OFF ON OFF Reserved (9.6k bps)
OFF OFF ON ON Reserved (19.2k bps)
OFF ON OFF OFF Reserved (38.4k bps)
OFF ON OFF ON Reserved (115.2k bps)
OFF ON ON OFF Reserved (230.4k bps)
OFF ON ON ON Reserved (460.8k bps)
ON OFF OFF OFF Reserved (921.6k bps)
Other Reserved
Parallel communication (SW1 DIP switch3 : ON)
DIP switch 1 DIP switch 2 DIP switch 3 DIP switch 4
OFF OFF OFF OFF 9.6k bps
Other Reserved
CN101 CN102
SW1
ON
1234
SW2
ON
1234
Air conditioner side
cable connector
(For serial)
Air conditioner side
cable connector
(For parallel)
SW1
ON
1234
SW2
ON
1234
8-EN
