Toshiba Tecra M10 - Removing the Cover Assembly and Base Assembly

4 Replacement Procedures 4.16 Cover assembly and Base assembly
4 Replacement Procedu es
4.16 Cover assembly and Base assembly
r
Removing the Cover assembly and Base assembly
To remove the cover assembly and base assembly, follow the steps below and refer to Figure
4-28 to 4-30.
1. Close the display and turn over the computer.
2. Remove the following screws.
• M2.5×16B FLAT HEAD screw ×3 (“16” in the figure below)
• M2.5×10B FLAT HEAD screw ×8 (“10” in the figure below)
• M2.5×5B FLAT HEAD screw ×2 (“5” in the figure below)
“5”
“16”
“16”
“5”
“16”
“10”
“10”
“10”
“10”
“10”
“10”
“10”
“10”

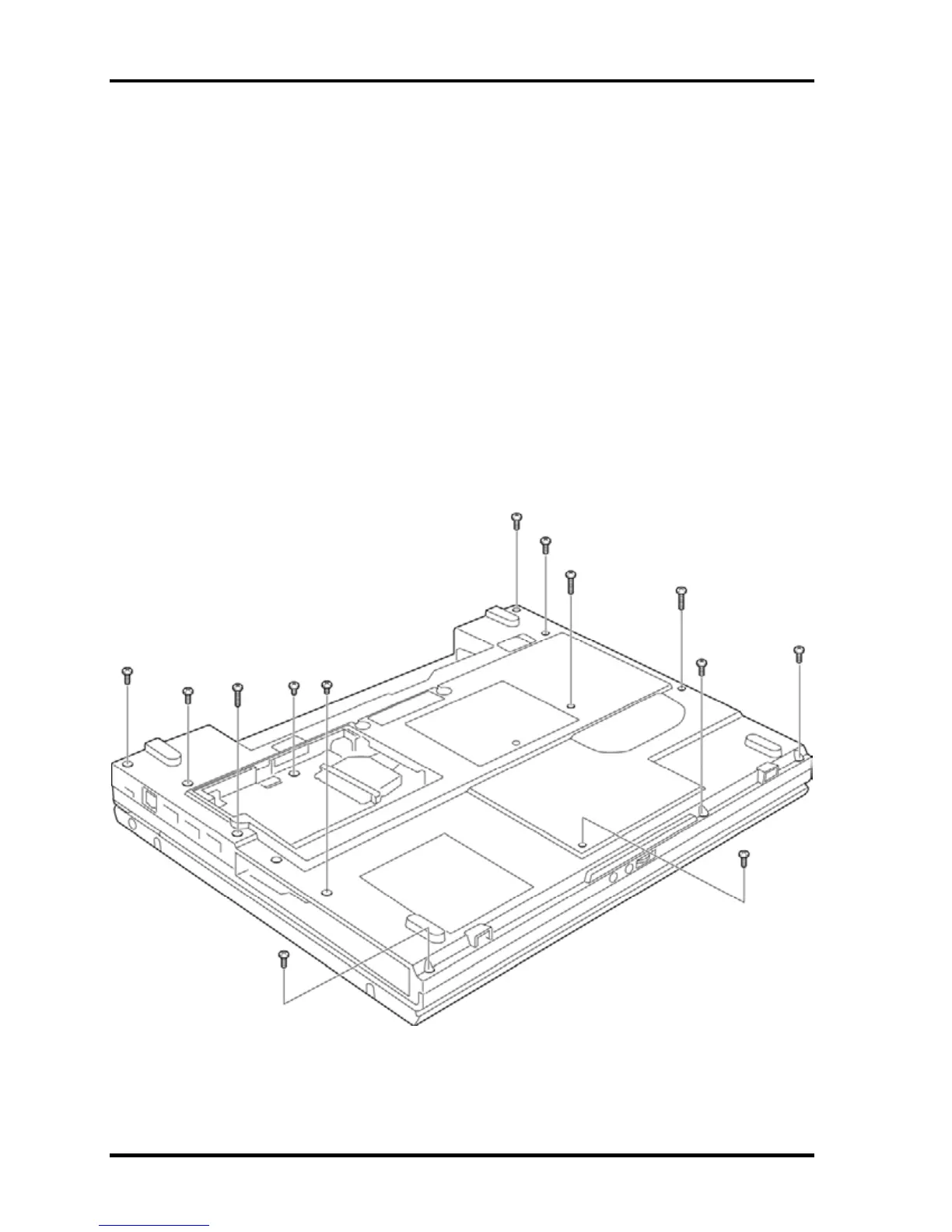

Figure 4-28 Removing the cover assembly and base assembly(1)
4-46 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)
