4.18 RGB harness/RJ45 harness 4 Replacement Procedures

4.18 RGB harness/RJ45 harness

Removing the RGB harness/RJ45 harness

To remove the RGB harness/RJ45 harness, follow the steps below and refer to Figure 4-33

and 4-34.

1. Turn up the insulator and disconnect the RGB harness from the connector CN9510

on the system board.

2. Remove the following screw and take out the RGB harness from the slot of the base

assembly.

• M2.5×6C Tapping screw ×1

RGB harness

CN9510

M2.5x6C Tapping

Insulator

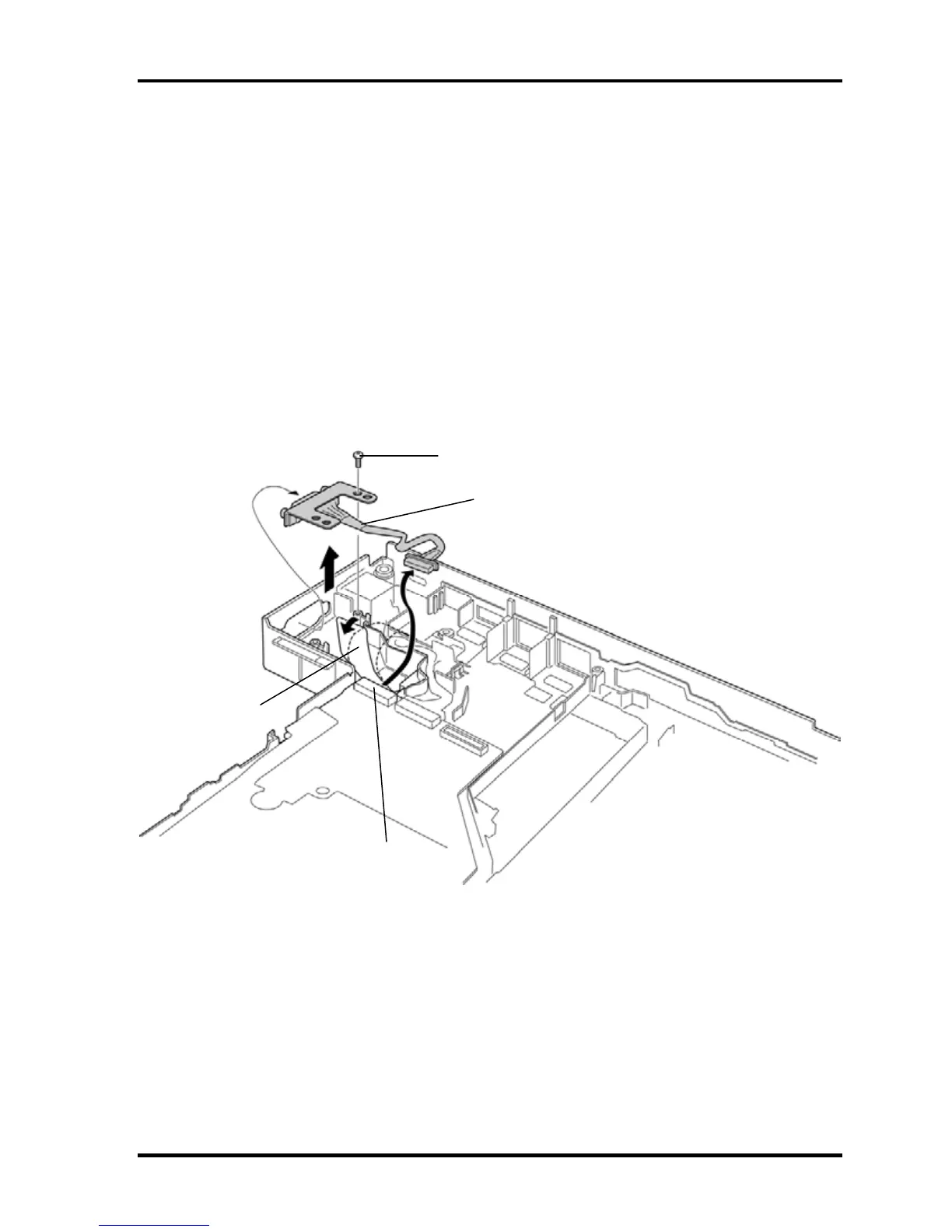

Figure 4-33 Removing the RGB harness

TECRA M10 Maintenance Manual (960-685) [CONFIDENTIAL] 4-53
