4 Replacement Procedures 4.30 LCD unit/FL inverter

4.30 LCD unit/FL inverter

Removing the LCD unit/FL inverter

To remove the LCD unit/FL inverter, follow the steps below and refer to Figure 4-55 to 4-59.

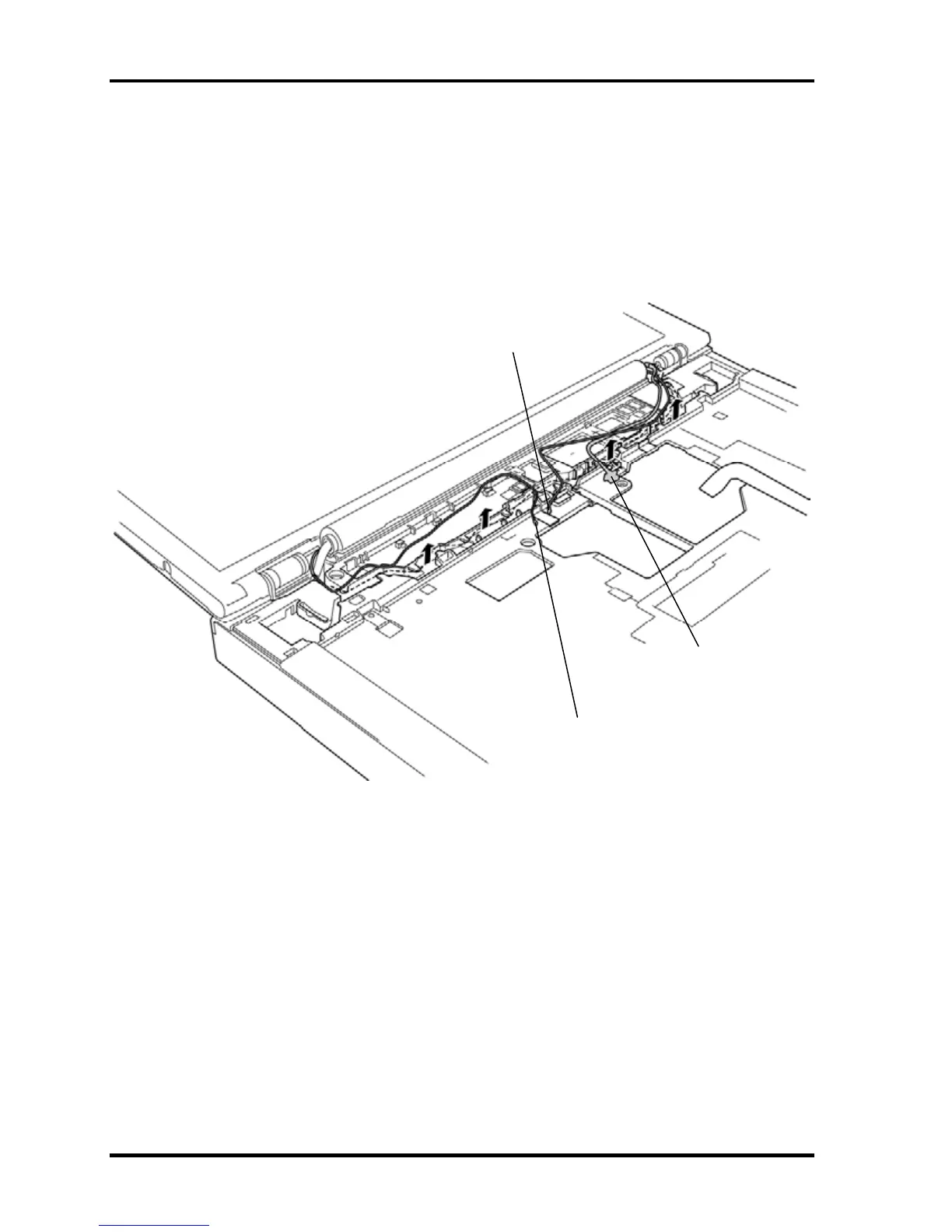

1. Remove the wireless LAN antenna cables and camera harness from the slot.

Camera harness

Wireless LAN antenna cable (white)

Wireless LAN antenna cable (black)

Figure 4-55 Releasing the harnesses

4-86 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)
