Appendix F Wiring diagrams Appendices

Appendix F Wiring diagrams

F.1 RGB Monitor Loopback Connector

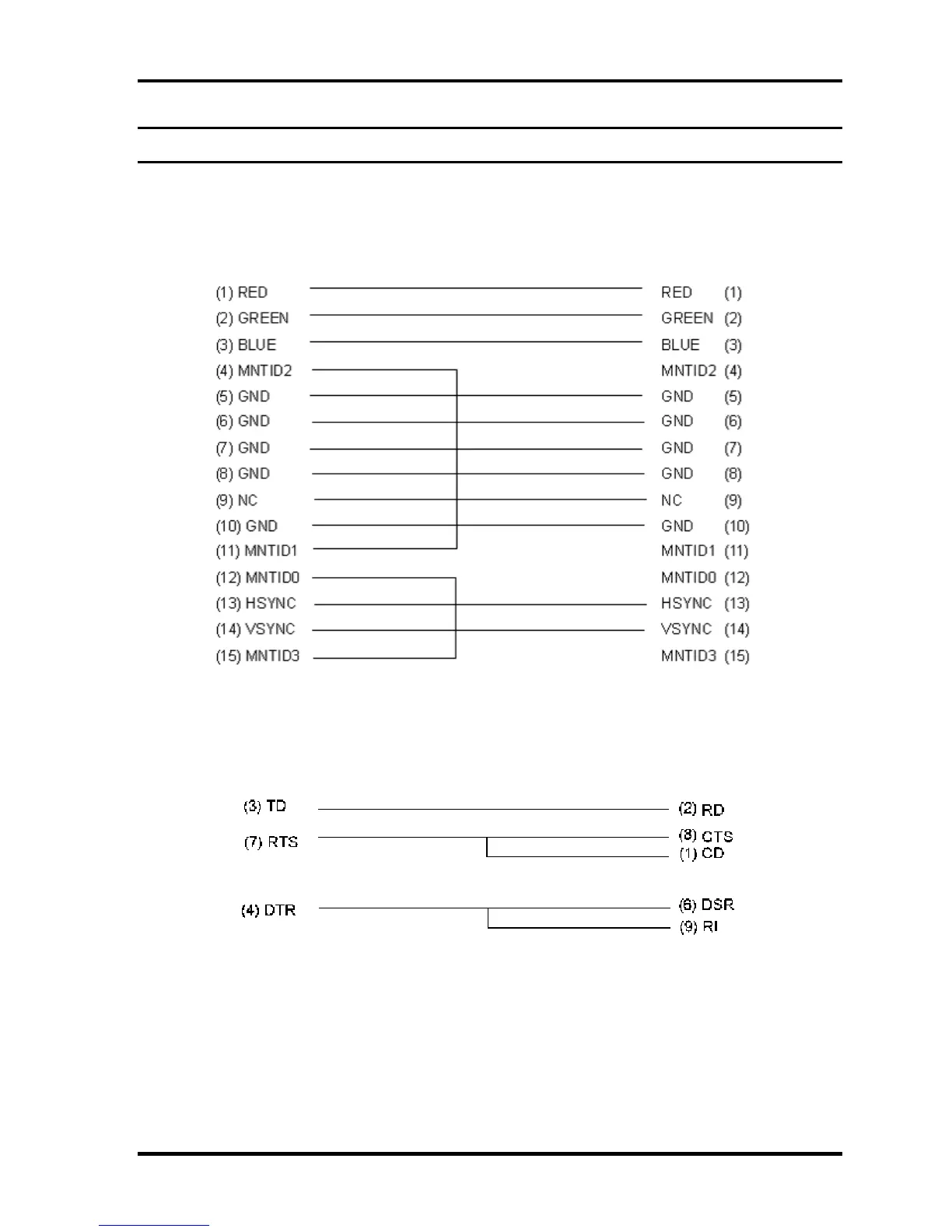

Figure F-1 RGB Monitor Loopback Connector

F.2 RS-232C Loopback Connector

Figure F-2 RS-232C Loopback Connector

TECRA M10 Maintenance Manual (960-685)

[CONFIDENTIAL]

F-1
