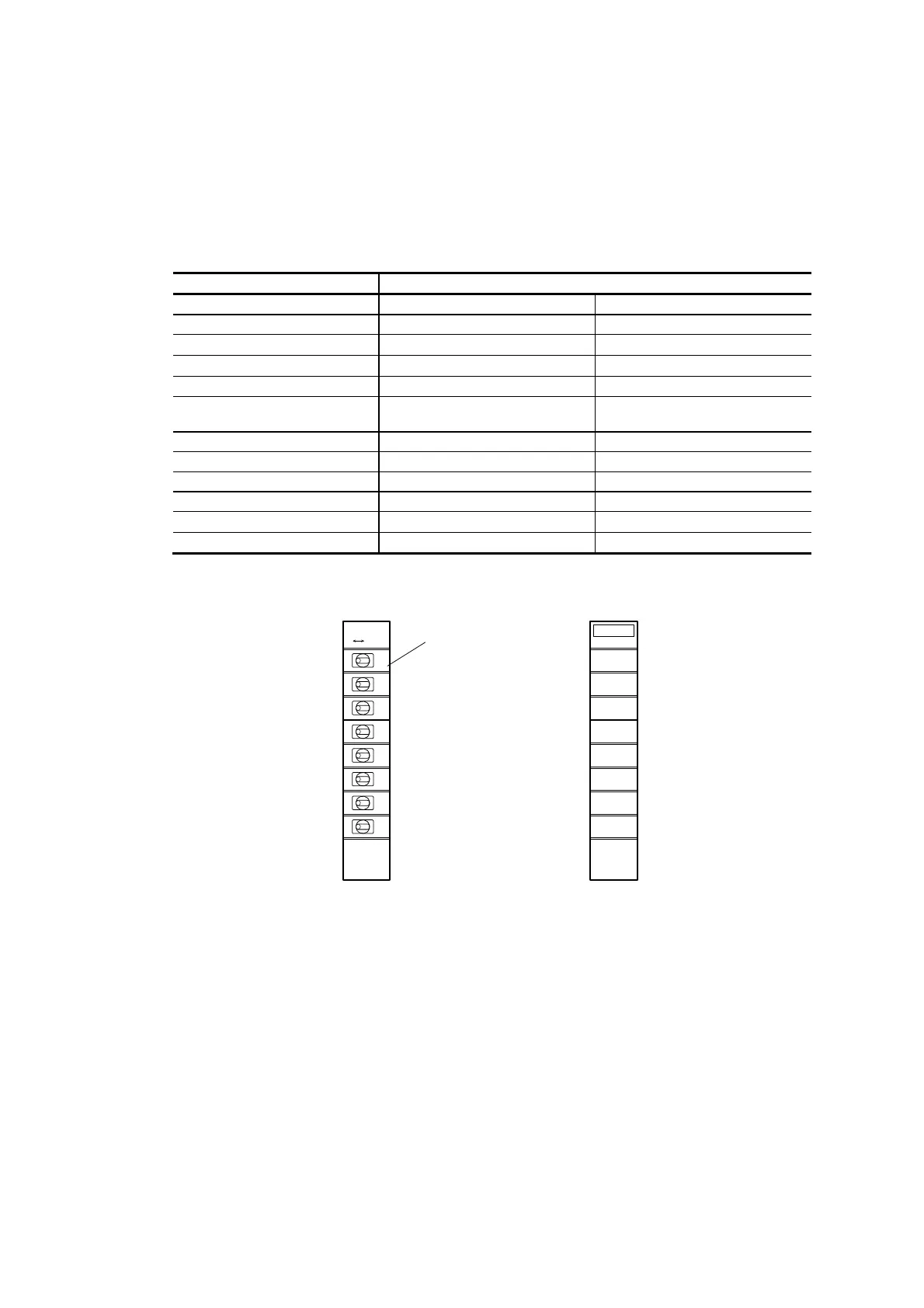

I/V Conversion Board FIVC11/FIVC12
FIVC11/FIVC12 board specifications
Item Specification
Model name FIVC11 FIVC12
Number of I/V converter circuits 8 circuits 8 circuits
I/V conversion accuracy
Within

0.2% Within

0.2%
Temperature coefficient

25 ppm/

C

25 ppm/

C
Current rating 20 mAdc 20 mAdc
Resistance section switch Yes (corresponds to current input
point)
No (exclusively for current input)
Switch open circuit voltage 28 Vdc or less -
Internal heat generation 0.8 W (total input 20 mAdc) 0.8 W (total input 20 mAdc)
Compatible terminal block units UTBA1 (OP1, OP2), UTBA3 (OP1) UTBA1 (OP1, OP2), UTBA3 (OP1)
Compatible I/O module SAI01 SAI01
External dimensions
15 W

85 H

45 D mm 15 W

85 H

45 D mm
Weight 100 g or less 100 g or less
FIVC11 board front panel FIVC12 board front panel
Voltage (V) /current (I)
selector switches 1 to 8
FIVC11
1
3
2
4
5
6
7
8
V I CH
FIVC12
