Toshiba TOSDIC-CIE DS User Manual

3. System Configuration Unit and Module
65
I/O base unit UITU5
UITU5 unit specifications
Parameter Specification
Type UITU5
Mounting type Only for horizontal mounting of DIN rails (fixed with
specialized stopper fittings)
Input/output signal connector TB1
Terminal block (M3 screw; 12 pins)
For I/O bus connection and system power (24 Vdc) receiving
Conforming I/O cable Cross-section 1.5mm
2
(AWG14)
Conforming DIN rail 35 mm wide
Outer dimensions
60W

160H

15D mm (excluding protrusions)
I/O bus terminating resistor When mounted on the end tail, the final resistor is set to ON.
Mass No more than 250 g (Single unit)

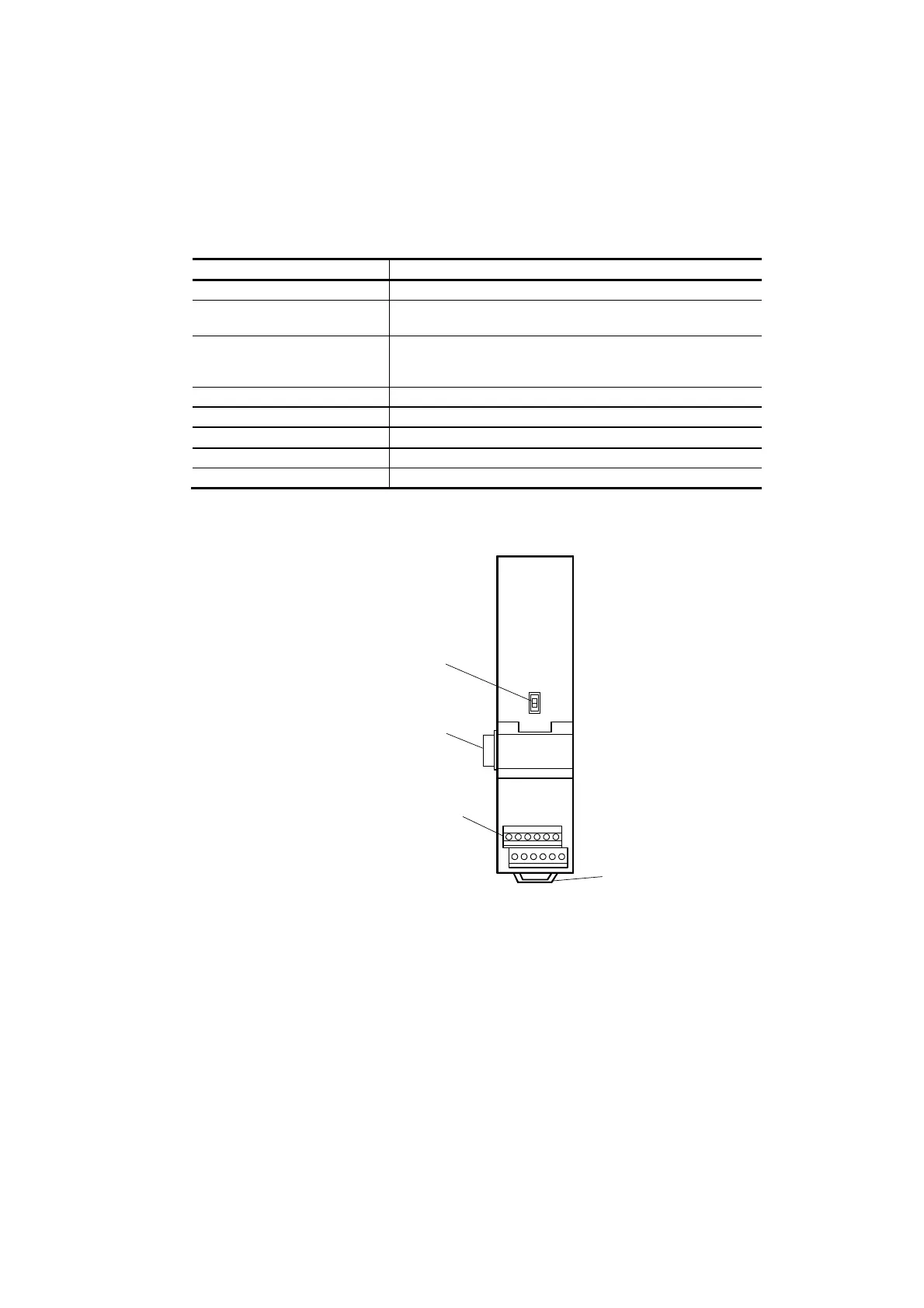

Front Side of UITU5 Unit
ON
TB1
I/O bus extension
terminal block
DIN rail hold
Terminating
resistor switch
I/O base unit
interconnector
