Bottom Duct
Plate
Fabric Duct
4 Screws

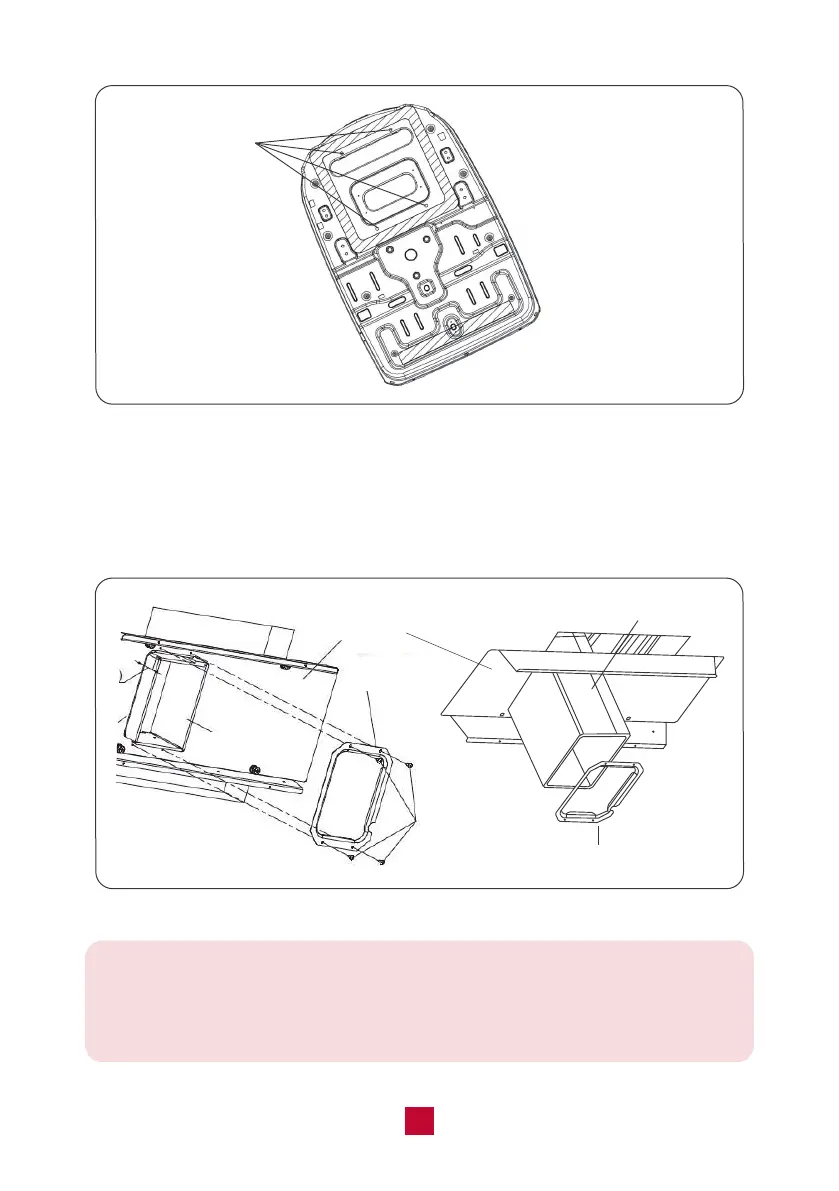

● Secure the bottom duct plate to the ceiling assembly frame with 4 tapping screws
(see Figure 10) and fasten each side of the fabric duct. After the securing, there
might leave some spare fabric that may extend beyond the edge of the bottom
duct plate need to be cut.
Figure 9
Figure 10
Bottom Duct Plate
Fabric Duct
4 Bolts for
Ceiling Assembly
Frame Fixing
Frame
Warm tips:
If the fabric duct is too long to install (original length: 11.8 inches), you could
shorten the fabric duct for easier installation. But please make sure it would not
be over-cut to be too short to install the bottom duct plate.
