16
Technical Information
Service Manual

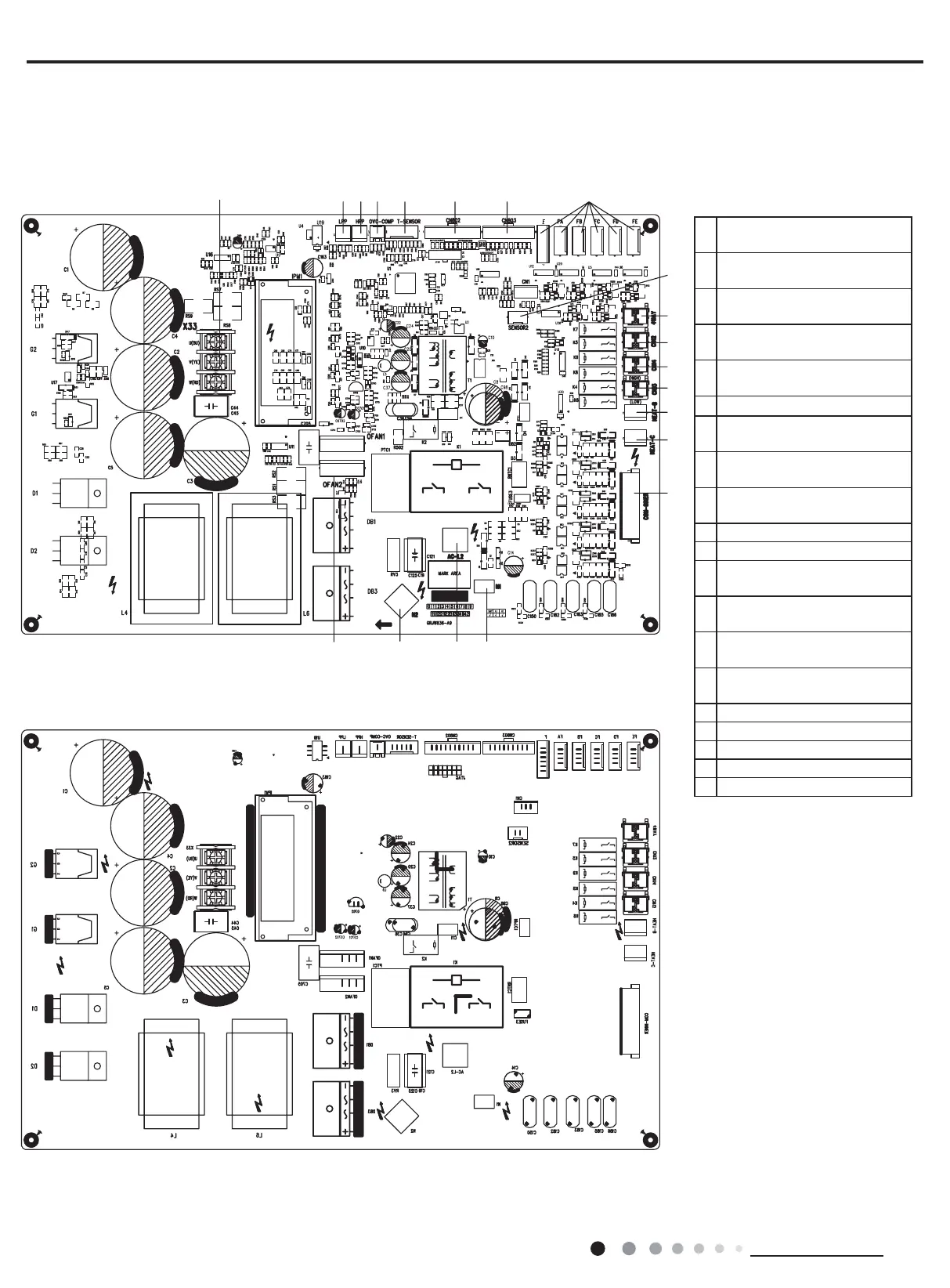

● TOP VIEW
● BOTTOM VIEW
1
Compressor three phase input
interface
2
Terminal of system low
pressure protection
3
Terminal of system high
pressure protection
4
Overload interface of
compressor
5
Interface of temperature
sensor
6
Air valve temperature package
7
Liquid valve temperature
package
8
Terminal of electronic
expansion valve
9
Inhalation temperature
package
10 Terminal of 4-way valve
11 Terminal of 2-way valve
12
Terminal of low pressure
2-way valve
13
Terminal of high pressure
2-way valve
14
Terminal of electric heating for
chassis
15
Terminal of electric heating for
compressor
16 Communication interface
17 Interface of netural wire
18 Live wire interface
19 Neutral wire interface
20 DC fan interface
TM36H5O TM42H5O
9
10
11
12
13
14
15
16
17181920
